When it comes to exterior sign lighting, there's one fixture we keep coming back to: the US LED LinearStar. This outdoor LED sign lighting and wall washer system has long been a go-to for sign companies and facility managers who need dependable, even illumination after dark — and the latest generation makes it an even easier recommendation. Shine Retrofits is proud to be one of the few retailers carrying this fixture, and here's why it deserves a spot on your shortlist.
What is LinearStar?

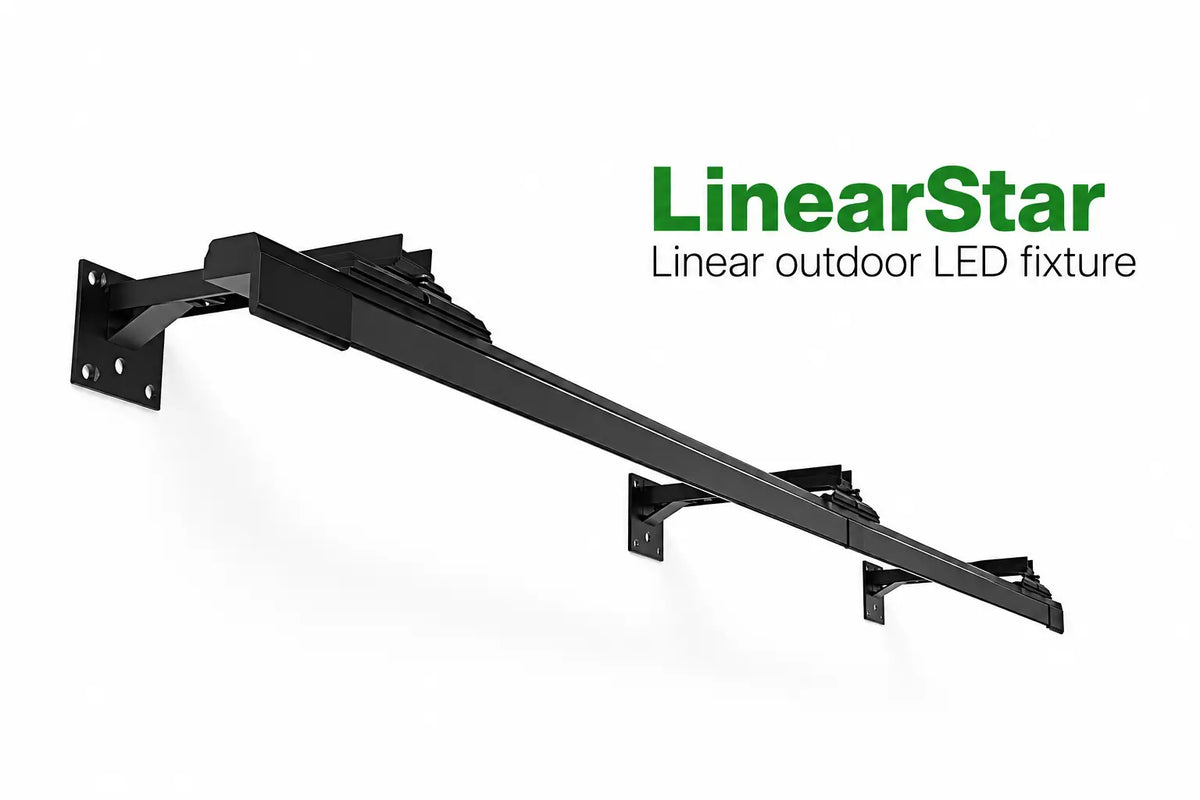

LinearStar is built to illuminate exterior signage, walls, and architectural details with precise, close-range light. Using proprietary refractive optics, it evenly distributes illumination across a target surface while staying close to it, which eliminates the dark spots and hot spots that plague less-engineered sign lighting. The system is modular by design, with 1 ft. and 4 ft. sections that connect to form continuous runs, so it scales to fit signs of nearly any length — whether you're lighting a small storefront sign or a long stretch of building façade. Since 2001, sign lighting has been part of how US LED helps brands come alive after dark, and LinearStar carries that legacy forward. A well-lit sign does more than help people find your business at night — it creates recognition, instills confidence, and leaves a lasting first impression. LinearStar was engineered specifically to deliver on that promise, and this newest generation raises the bar even further.
Now Supporting Uplight and Downlight Installation
One of the biggest updates to LinearStar is mounting flexibility. Previously, the fixture was limited to a single mounting orientation, which meant some installations required compromises or an entirely different product. Now, LinearStar can be installed above or below the target surface, giving installers the freedom to solve lighting challenges that previously required a completely different fixture.
Whether your project calls for uplighting from below a sign or downlighting from an eave or overhang, LinearStar now handles both — without sacrificing the even, close-proximity illumination it's known for. This kind of flexibility matters most in real-world installs, where mounting conditions rarely match the textbook scenario. A tight eave, an unusual sign shape, or a wall that doesn't leave much room to work with are no longer dealbreakers.
Custom Color Finishes Available
Here's a detail that's a bigger deal than it sounds: LinearStar can now be painted to match virtually any color. The earlier generation only came in a standard black finish, but this version can be color-matched to a building's façade or brand palette — meaning it performs beautifully at night and blends in seamlessly during the day.
For sign companies and property owners who care about curb appeal just as much as visibility, this is a meaningful upgrade. A fixture mounted in a highly visible spot — right on a storefront or along an entryway — shouldn't stick out like an afterthought during daylight hours. With custom color finishes, LinearStar can disappear into the architecture it's lighting, so the sign gets the attention, not the fixture.
Built to Handle the Outdoors
LinearStar's strengthened die-cast aluminum housing, corrosion-resistant finish, and improved sealed lens assembly earn it an IP65 rating, so it's built to withstand harsh outdoor conditions without sacrificing performance. It also operates reliably across a wide temperature range, from -40°F to 113°F, making it a solid choice no matter the climate — from scorching summers to freezing winters.
This kind of durability isn't an afterthought; it's central to what makes LinearStar worth specifying in the first place. Exterior sign lighting takes a beating from rain, humidity, UV exposure, and temperature swings, and a fixture that can't hold up ends up costing more in maintenance and replacements than it saved upfront. LinearStar is designed to keep performing consistently, year after year, in exactly those conditions.
Refractive Optics That Actually Solve the Problem
It's worth taking a closer look at what makes LinearStar's light quality stand out. Many sign lighting fixtures struggle with one of two problems: they're mounted too far from the surface and lose brightness and evenness, or they're mounted close and create harsh hot spots directly under the fixture. LinearStar's proprietary refractive optics are designed to solve both issues at once, allowing the fixture to sit close to the target surface while still spreading light evenly across it.
The result is a smoother, more professional-looking wash of light with high-performance 5000K LEDs and a CRI of 80 or higher, so signage and architectural details render true to color rather than washed out or distorted. For businesses that rely on brand colors to be instantly recognizable — think logos, channel letters, and painted signage — that color accuracy matters.
Performance Snapshot
- Color Temperature: 5000K Daylight White
- CRI: ≥80
- Lumen Output: Up to 1,554 lumens per section
- Efficacy: Up to 95 LPW per section
- Voltage: 24VDC (Class 2 power supply required)
- Lumen Maintenance (L70): 163,000 hours
- Warranty: Five-Year Limited Warranty
- Certifications: UL Listed, RoHS Compliant, Suitable for Wet Locations
Easy to Service, Easy to Scale
LinearStar's modular sections aren't just about length — they're about long-term maintenance, too. Each 1 ft. or 4 ft. section can be serviced or replaced individually without disturbing the rest of the run, which means less downtime and less hassle when it's time for upkeep. For sign companies managing multiple properties or facility managers overseeing a large campus, that's a real advantage: a single damaged section doesn't mean pulling down an entire lighting run to fix it.
This modularity also makes planning easier from the start. Rather than choosing between fixed-length fixtures that don't quite fit your sign, you can combine standalone 4 ft. units with additional 1 ft. and 4 ft. sections to build a run that matches your project's exact dimensions — no compromises, no gaps, no overhang.
Where It's a Great Fit
- Exterior signage and channel letters — Illuminate storefront signage evenly, without the shadows and dark spots that come from poorly positioned fixtures.
- Wall wash and architectural accent lighting — Highlight textured walls, stonework, or design features with smooth, consistent light.
- Retail and hospitality exteriors — Create a polished, welcoming first impression for customers arriving after dark.
- Restaurant exteriors — Draw attention to signage and entryways during peak evening hours.
- Commercial building façades — Add a professional, finished look to office buildings and corporate campuses.
Because it supports both uplight and downlight mounting, LinearStar also works well for projects that combine several of these applications on a single building — for example, uplighting a ground-level sign while downlighting an upper façade detail, all with the same fixture family.
Why Buy LinearStar From Shine Retrofits?
Shine Retrofits is one of the few retailers currently carrying the LinearStar system, and that's not by accident — we work directly with manufacturers like US LED to bring in fixtures that solve real installation problems for our customers, not just fixtures that look good on paper. Our lighting-certified sales team can help you calculate exactly how many sections you'll need for your specific sign length, walk you through mounting options, and make sure you leave with the right accessories the first time.
We're also proud to offer free shipping on qualifying orders, straightforward returns, and a team that's available to answer questions before and after your purchase — because a great fixture is only half the equation. The other half is making sure it's specified and installed correctly.
The Bottom Line
If you want reliable, efficient, and good-looking sign lighting, LinearStar checks every box. With uplight and downlight flexibility, custom color finishes, and the durability to back it all up, this latest generation solves problems the previous version simply couldn't. Shop the US LED LinearStar at Shine Retrofits — one of the few retailers offering it — or contact our lighting-certified sales team with any questions about your next sign lighting project.
