This package is designed for 4' sections only. For anything over 4 feet, please chat with a sales representative to determine the specific needs of your sign lighting project.

✨ New Design - now supporting both uplight or downlight applications!

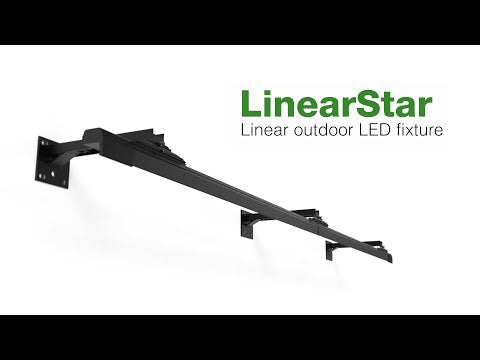

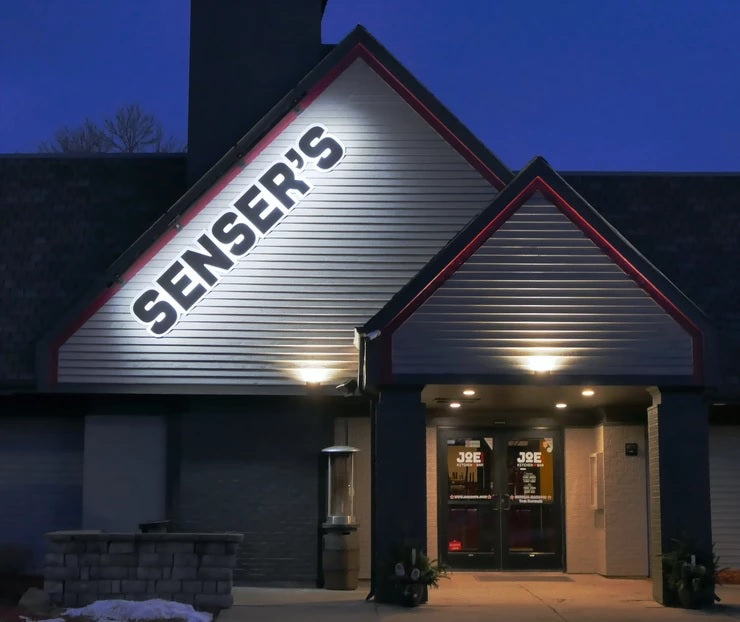

US LED's LinearStar outdoor LED sign lighting system is designed to help you shine when it matters most—after dark. Whether you're lighting up exterior signage or spotlighting architectural details, LinearStar delivers precise, energy-efficient illumination that makes your brand stand out naturally and attractively while creating a lasting impression.

Now supporting both uplight and downlight applications, LinearStar gives installers greater flexibility to achieve consistent lighting in a wide range of outdoor weather conditions. The improved sealed lens assembly, proprietary optics, and strengthened construction support performance across a wide range of exterior environments. Choose from standalone units or modular 1 ft. and 4 ft. sections to create seamless runs that fit your space perfectly. With its balanced design and performance, LinearStar helps your business make a distinctive first impression—naturally and confidently.

Product Performance Summary:
- Lumen Output: Up to 1,554 lumens (Per Section)
- Efficacy: Up to 95 LPW (Per Section)
- CRI: ≥ 80 CRI
- Available CCT: 5000K
- Warranty: Five-Year Warranty

Key Features:

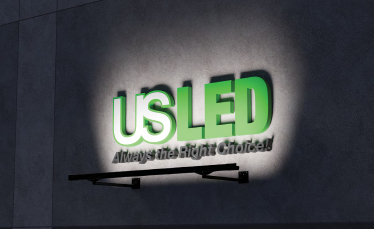

- Supports uplight or downlight installation to solve challenging lighting layouts.
- The improved sealed lens assembly ensures long-lasting sign lighting performance.
- The proprietary refractive optics allow close proximity placement while evenly distributing light across targeted signage and walls.
- Modular 1 ft. and 4 ft. sections create a scalable system for continuous runs.

Electrical:
- 24VDC low-voltage input with external Class 2 power supply operation.
- Operating temperature: -40°C to 45°C (-40°F to 113°F)
- External 24VDC Class 2 power supply is required. Outdoor-rated cable is required. Optional weather-resistant enclosure available.

Mounting:

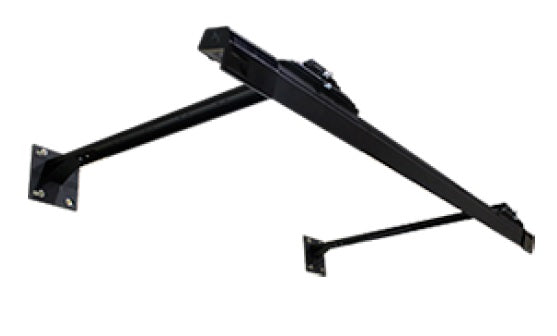

- Mounts above or below the targeted surface for flexible installation.
- Surface mounted using the SMT1-1-BK-V kit accessory (sold separately).

Construction:
- Strengthened die-cast aluminum housing with corrosion-resistant black powder coat finish and IP65-rated exterior protection. Consult factory for other custom color finishes.
- Individual 1 ft. and 4 ft. units are designed to be serviced or replaced without disturbing the adjacent sections.
- Standalone 4 ft. unit with end caps available.
- Unit net weights: 1 ft. (0.3 lbs.), 4 ft. (1.2 lbs.)

Optics:
- Proprietary refractive optics to project light evenly along the wall or signage while staying in close proximity to the target.
- High-performance LEDs: 5000K CCT (≥80 CRI). Consult factory for other CCT options.
- Lumen Maintenance (L70): 163,000 hours

Product Applications:
- Exterior Signage
- Architectural Details
- Wall Wash Lighting
- Retail Exteriors
- Hospitality Exteriors
- Restaurant Exteriors

Product Certifications:
- UL Listed (E324062)
- Suitable for Wet Locations
- RoHS Compliant

Warranty:
LinearStar sign lighting system is backed by US LED's limited Five-Year Warranty.
