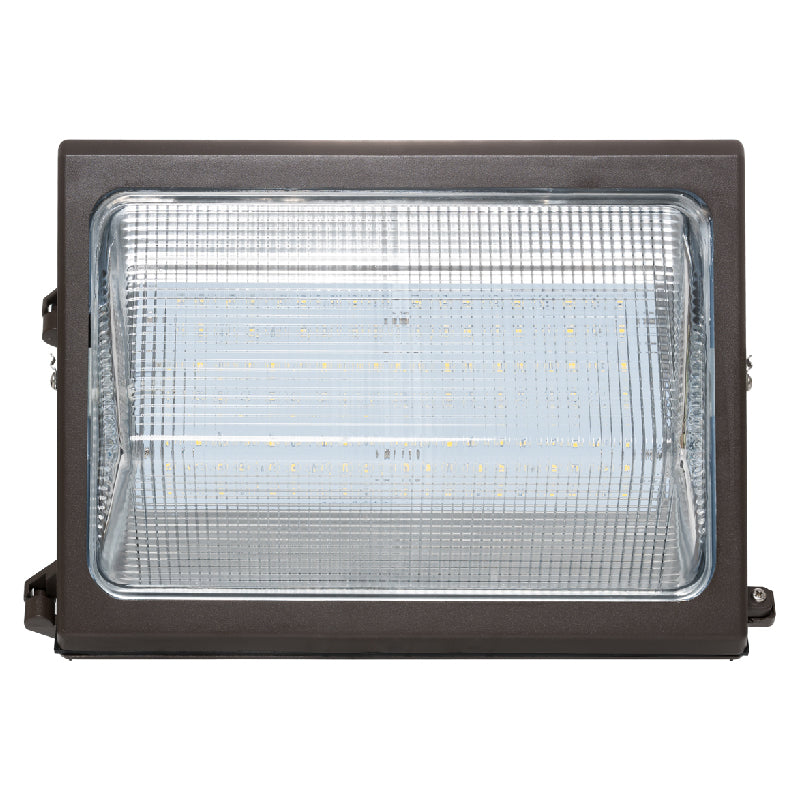

Westgate WMX-MD-20-50W DLC Listed LED Non-Cutoff Wall Pack Fixture Dimmable with Adjustable Watt 20/30W/40W/50W
Westgate WMX-MD-20-50W DLC Listed LED Non-Cutoff Wall Pack Fixture Dimmable with Adjustable Watt 20/30W/40W/50W
Specifications
Specifications
| Part Number# | WMX-MD-20-50W |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Parking Garage, Wall Mount & Building Exteriors |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,700 - 6,800 |
| Ballast Start Type: | Instant Start |
| Certifications | 50W HID Equivalent, 70W HID Equivalent, 100W HID Equivalent, 150W HID Equivalent, Dimmable, DLC Approved, IP65 / IP66 / IP67, UL Listed |
| CRI: | >70 |
| Dimensions: | 15.25" x 9.5" x 7.5" D |
| Width: | 15.25" |
| Height: | 9.5" |
| Dimmable: | Yes |
| Product Warranty: | 7 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This WMX LED Wall Pack Fixture is built to meet outdoor applications with durability, performance, cost and energy efficiency. Features multi-power switch which allows you to choose between 20W/30W/40W/50W replacing up to 150W HID fixtures. Delivers 130 lumens per watt at 3000K, 4000K, and 5000K color temperature with an excellent 70,000 hour life and 7-year warranty. Great for general site lighting, alleys, loading docks, doorway, pathway, parking areas, and more.
Technical Specifications:
• ADC12 Aluminum Heat Sink, Outdoor Powder Coating
• Multi-Power Switch is inside the Fixture
• Same footprint as traditional HID wall packs
• Prismatic Borosilicate Glass Lens
• Input Voltage: 120-277V AC 50/60Hz
• Four 1/2” Hubs: 1 top. 1 on Each Side, 1 Rear
• CRI: >70
• Power factor: >0.9
• Operating Temperature: -40°F ~ 104°F
• 70,000 hour rated life
• 7-year warranty
• IP rating: IP65, Wet Locations
