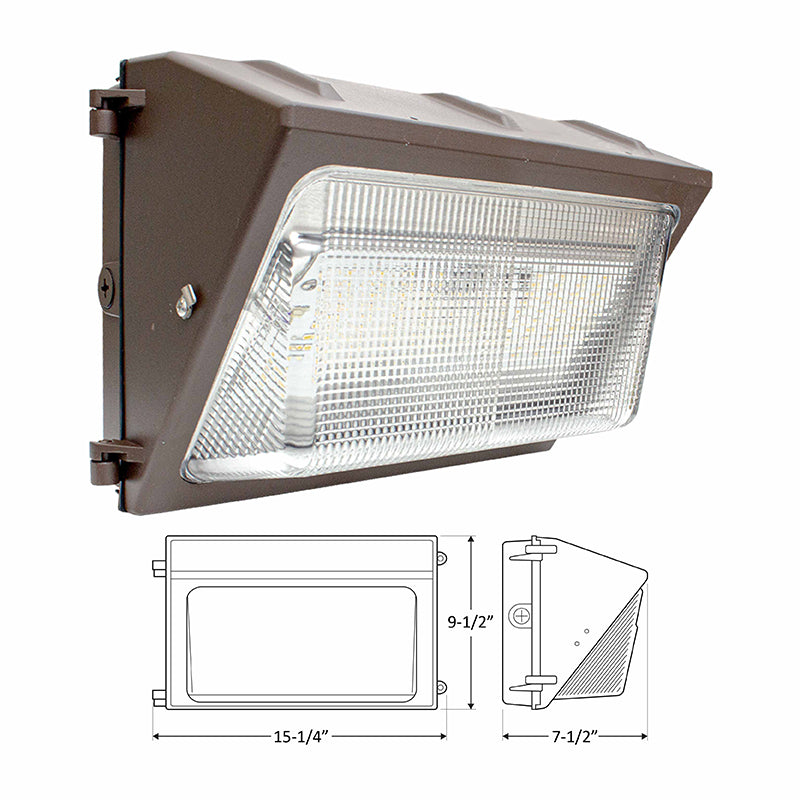

Westgate WMX-MCTP-D 0-80W Tunable Power & Color Temp. LED Non-Cutoff Wall Pack Fixture 120-277V Dimmable 3000K-5700K
Westgate WMX-MCTP-D 0-80W Tunable Power & Color Temp. LED Non-Cutoff Wall Pack Fixture 120-277V Dimmable 3000K-5700K
Specifications
Specifications
| Part Number# | WMX-MCTP-D |
|---|---|
| Type of Area: | Apartment Buildings, Pole / Street / Parking Lot, Wall Mount & Building Exteriors |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 0-9000 |
| Certifications | Dimmable, IP65 / IP66 / IP67, UL Listed |
| CRI: | 80 |
| Dimensions: | 15”(W) x 9 1/3”(H) x 7 1/2”(D) |
| Width: | 15” |
| Length: | 7.5” |
| Height: | 9.33” |
| Product Warranty: | 7 Year |
| Voltage: | Multivolt 120V-277V |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This Westgate LED Non-Cutoff Wall Pack is a brilliant outdoor lighting solution with tuneable power. Suitable for general site lighting, alleys, loading docks, doorway, pathways, parking areas, residential areas, balconies, terraces, and small shops. This fixture delivers 9,000 lumens per 80 watts and offers a selectable color temperature. Durable and long-lasting at 70,000 hours of LED life with a 7-year backup warranty.
Features:
- Output Power & CCT are tuneable (Remote Control needed)
- Die-cast aluminum with powder coat finish (Dark Bronze), optimized for LED
- High Transparent Tempered Glass
- Power range: 0-80W (Adjustable with remote control)
- Lumens range: 0-9000LM (Adjustable with remote control)
- Voltage: 120-277V AC 60Hz
- Four 1/2” hubs: 1 top. 1 on each side, 1 rear
- Chip: Philips Lumileds Lexeon 3030 High Flux LED
- Efficacy: 110 LPW
- Color Rendering Index: CRI ≥ 80
- Power Factor: >0.95
- Operating Temp: -40°F to 104°F
- Lifespan: 70,000 hours
- 7-year warranty
- IP Rating: !P54, Wet Locations
