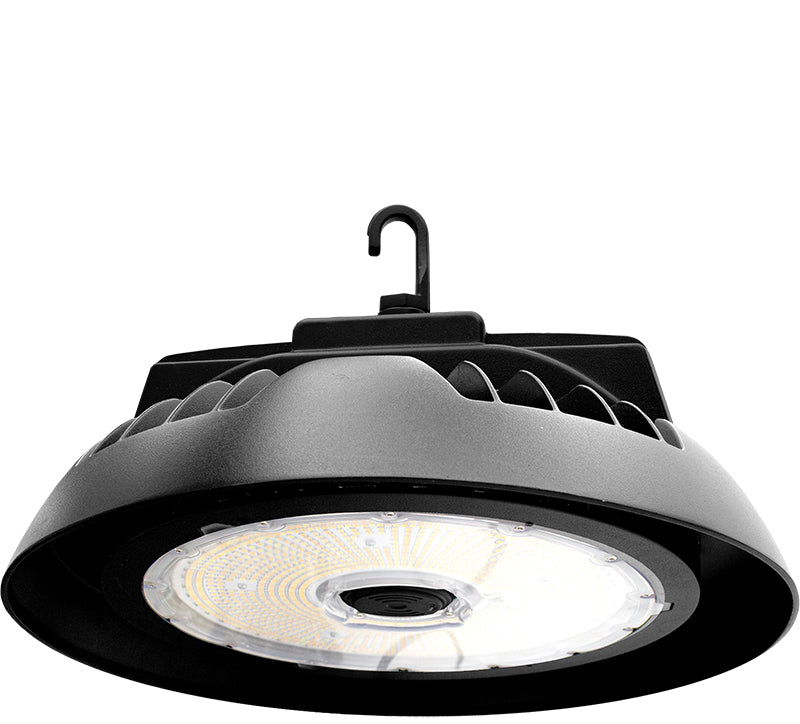

Westgate UHX-150W-MCTP 50/80/100/150 Watt LED New Gen UFO High Bay Dimmable with Adjustable Watt and Color Temperature - While Supplies Last
Westgate UHX-150W-MCTP 50/80/100/150 Watt LED New Gen UFO High Bay Dimmable with Adjustable Watt and Color Temperature - While Supplies Last
Specifications
Specifications
| Part Number# | UHX-150W-MCTP |
|---|---|
| Type of Area: | Gym & Sports, Home & Architectural, Industrial & Warehouse, Large Retail & Open Areas, Manufacturing Plants, Pole / Street / Parking Lot, Factory / Industrial |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 6,250 - 18,750 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 150W HID Equivalent, 175W HID Equivalent, 250W HID Equivalent, 320W HID Equivalent, Dimmable, DLC Premium, IP65 / IP66 / IP67, LM79 / LM80, UL Listed |
| CRI: | > 80 |
| Dimensions: | 14 3/5" Dia x 8 1/2" |
| Length: | 14 3/5" Dia |
| Height: | 8 1/2" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
*Price protected pricing through 2025 as long as the item is in stock.
Westgate UHX-150W-MCTP 50/80/100/150 Watt LED New Gen UFO High Bay Dimmable with Adjustable Watt and Color Temperature
ShineRetrofits Input:
This New Generation of UHX UFO Highbay Fixture is built to meet industry demand applications. Designed with versatility and durability in aluminum shell for heat dissipation and made waterproof for wet locations. Delivers 125 lumens per watt at adjustable power and color temperature with 50,000 hour life and 5-year warranty. Great for general site lighting, alleys, loading docks, doorway, pathway, parking areas, warehouses and storage buildings.
Technical Specifications:
• Housing: ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
• Voltages: 120-277V & 480V AC; 60Hz AC
• Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
• Efficacy: 160LM/W
• CRI: >80
• Power Factor: ≥0.9
• Beam Angle: 90º
• THD: <20%
• 0~10V Dimming
• Operating Temp.: -40°F to 122°F
• Aluminum LED Board: High conductive, waterproof, aging resistant, salt mist resistance, long-life
• 5-year warranty
