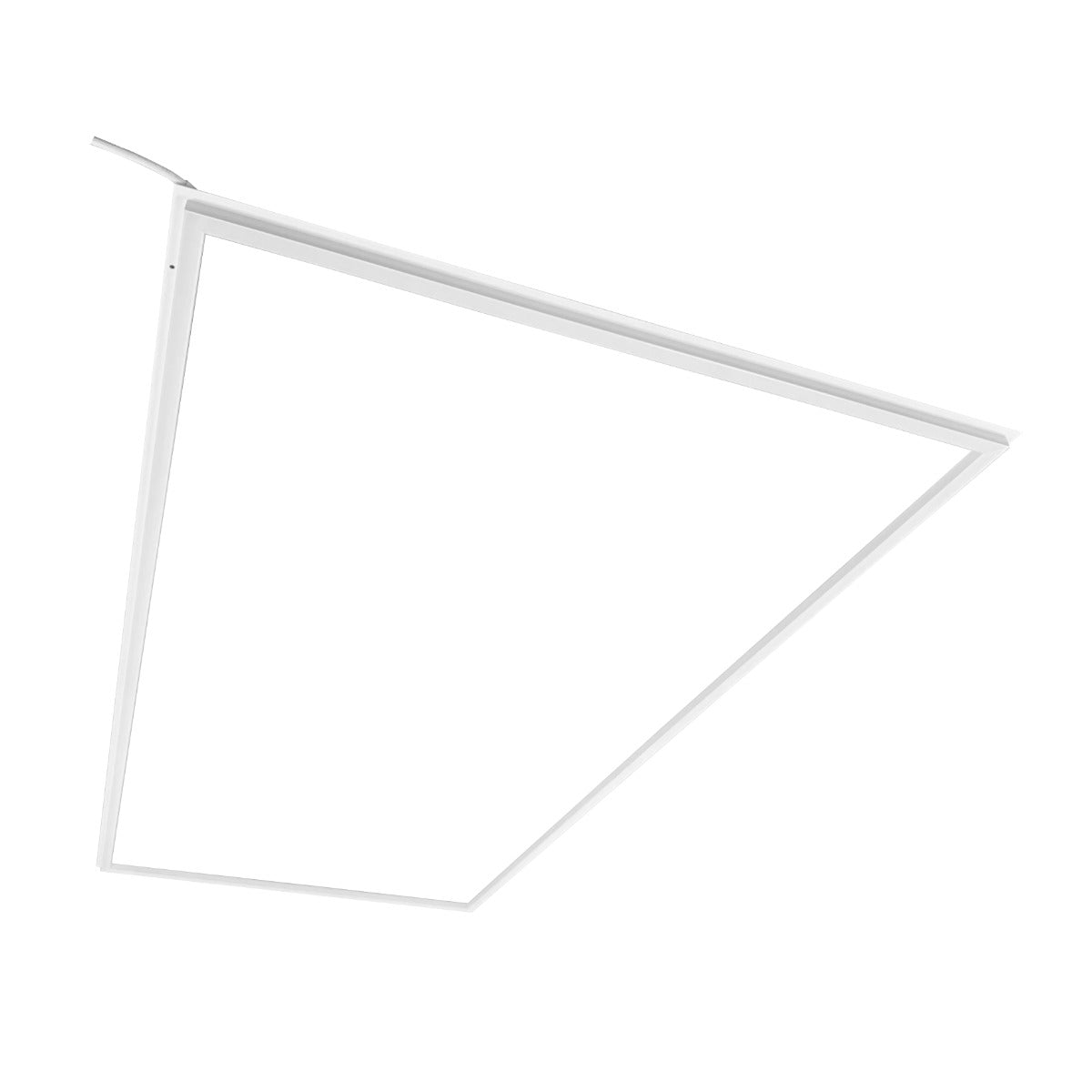

Westgate TGL-2X2-MCTP TGL Series 2x2 T-Bar Grid Light Fixture with Multi-Power and Multi-Color Dimmable
Westgate TGL-2X2-MCTP TGL Series 2x2 T-Bar Grid Light Fixture with Multi-Power and Multi-Color Dimmable
Specifications
Specifications
| Part Number# | TGL-2X2-MCTP |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Commercial Offices, Education, Hospitality, Retail, Healthcare / Disinfection |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 4,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, UL Listed |
| CRI: | ≥ 80 |
| Dimensions: | 23.75" x 23.75" x 0.63" D |
| Width: | 23.75" |
| Length: | 23.75" |
| Height: | 0.63" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
This T-Bar Grid Light provides innovative solution for easy installation in new construction and replacement of existing fluorescent troffers or LED panels in commercial and residential applications. Frame light is compact and modern with excellent performance. Highly efficient at 100/114/148 lumens per watt with selectable power 27W/35W/40W and color temperatures at 3500K/4000K/5000K. Long-lasting at 50,000 hours rated life and backup with 5-year warranty.
Features:
• White Finish
• Multi Color Temperature & Multi Power (Selectable Switch in Driver box)
• 5-Year Warranty
• High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
Lighting:
• Performance Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• Dimmable: 120-277V 0~10V Driver for Continuous Dimming
• Driver Disconnect Provided Where Required to Comply with US and Canadian codes
• Total Lumens: 4000LM
• Color Temperatures: 3500K/4000K/5000K
• Multi CCT & Multi Power (Selectable Switch in Driver Box)
• Color Rendering Index: CRI ≥ 80
Electrical:
• Voltage: 120-277V
• Power Factor: >0.92
• Wattage: 27W/ 35W/ 40W
• Efficacy: 148/ 114/ 100 LPW
Mechanical:
• Extruded Aluminum with White Painting
• Surge Protector
• Maximum Ambient Temperature: -22°F to +104°F
• Rated life: 50,000 hrs
• Driver/Junction Box is Separate and Connects to the Fixture with a 3Ft. Dongle.
• Driver/Junction Box Installs On Adjacent Grid, On Top, Using Your Choice Of T-bar Bracket or Westgate T-bar Bracket Model (ELB-TBAR1)
• IP20 Indoor Use Only
Applications:
• Retail
• Schools
• Offices
• Healthcare
• Conference rooms
• Hospitality
• Corridors
• Reception areas
• Foyer
• Library
