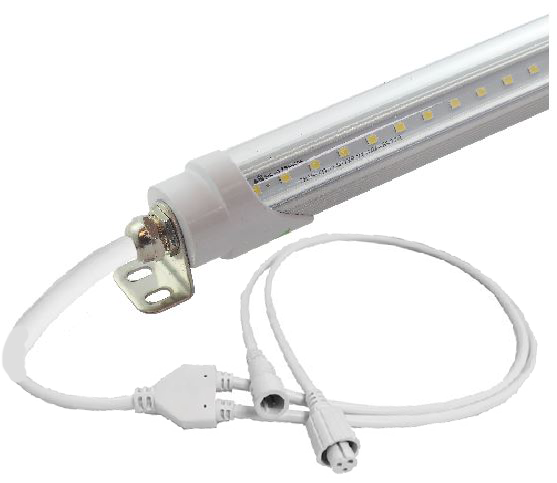

Westgate T-RFG T8 LED Linkable Commercial Refrigerator Clear Tube Lamp 5000K
Westgate T-RFG T8 LED Linkable Commercial Refrigerator Clear Tube Lamp 5000K
Specifications
Specifications
| Part Number# | T-RFG |
|---|---|
| Type of Area: | Coolers & Freezers, Home & Architectural, Office & Small Retail, Commercial Offices, Hospitality, Retail |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,100 - 4,200 |
| Wattage: | 30 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, LM79 / LM80, NSF, UL Listed |
| CRI: | 80 |
| Length: | 60" - 72" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The Westgate T-RFG LED Clear Tube Lamp, is available in 22W and 30W options. Designed specifically for commercial refrigerators, these linkable T8 LED lamps provide bright, 5000K illumination. With an impressive 50,000-hour lamp life and backed by a 5-year warranty, they ensure long-lasting, energy-efficient lighting solutions for your refrigeration needs.
Technical Specs:
• Linkable Commercial Refrigerator Tube Lamp
• Internal Driver
• Voltage: 120-277V AC input, or 100~347V AC with ballast
• Heat sink: 6063 extruded aluminum with heat dissipation ribs for superior thermal management
• Beam Spread: 120º
• CRI: 80
• Rated Life: 50,000 hrs, 5-year warranty
• Ambient Operating Temperature: -4ºF to 104ºF
• Not dimmable, unless it is used with dimmable electronic ballast
• Lumens per watt: 100LWP
• Power consumption is the same when using with or without ballast.
• Lumens per watt: 100LPW with ballast / 115LPW without
Applications:
• Avoid initial labor costs by replacing the fluorescent tube with this compatible tube. Once fluorescent ballast fails, there is no need to install a new ballast. This tube can simply work with direct A/C power.
• Ideal for offices, showrooms, refrigerators, cove lighting, etc.
