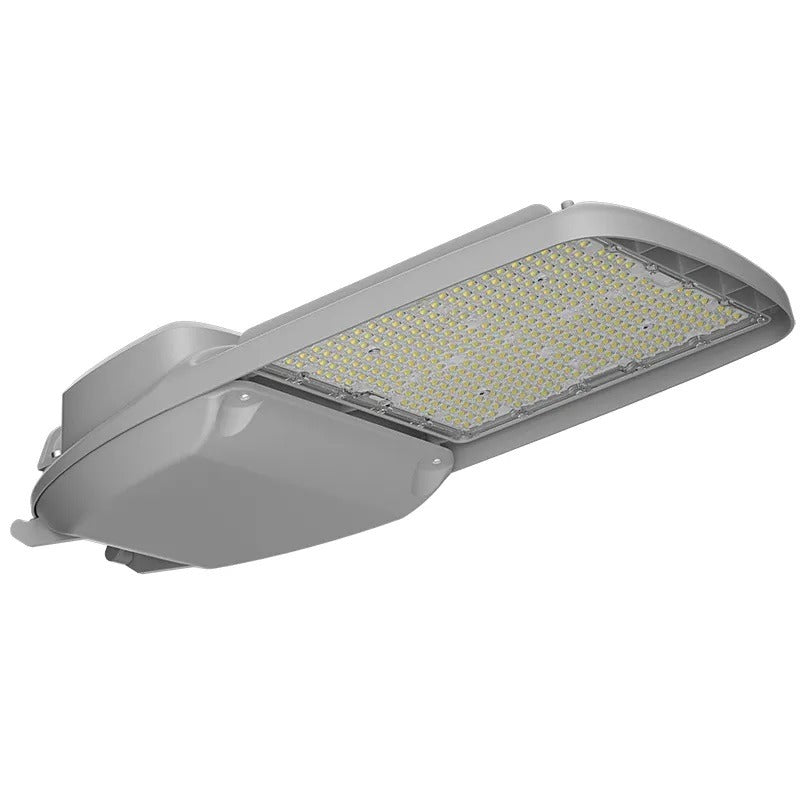

Westgate STL4-50-150W-50K Power Selectable LED Street Roadway Light Fixture with Shorting Cap
Westgate STL4-50-150W-50K Power Selectable LED Street Roadway Light Fixture with Shorting Cap
Specifications
Specifications
| Part Number# | STL4-50-150W-50K |
|---|---|
| Type of Area: | Pole / Street / Parking Lot, Road & Street |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 7,000 - 21,000 |
| Wattage: | 150 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | CUL Listed, Dimmable, DLC Approved, IP65 / IP66 / IP67, UL Listed |
| CRI: | ≥ 70 |
| Dimensions: | 23.25" x 9.25'' x 4.75" D |
| Width: | 23.25" |
| Height: | 9.25'' |
| Dimmable: | Yes |
| Product Warranty: | 7 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate's STL4 Power Selectable LED Street Light is built for robust outdoor lighting needs, covering general site lighting to specific areas like roadways, alleys, and loading docks. This fixture ensures optimal illumination with adjustable wattage from 50W to 150W and an impressive efficacy of 140LM/W. Its die-cast aluminum housing with a powder coat finish and high light transmittance lens provides durability and weather resistance, supported by an IP65 rating for wet locations. Efficient thermal management and a long lifespan of 70,000 hours make it a reliable choice for various applications, all backed by a seven-year warranty.
Features:
• Wattage: 50W/80W/100W/150W
• Efficacy: 140LM/W
• Die-cast Aluminum with Powder Coat Finish (Light Grey)
• Cord Type: 40” SJTW 18/3 AWG Cable
• With 2-15/16” Diameter Pole Entry with Adapter Bracket Inside for Smaller Pole Diameters
• Maximum Ambient Temperature: 104°F
• IP Rating: IP65, Suitable For Wet Location
• 7-Year Warranty
• MP: Multi-Power Switch Is Located On The Back Of The Fixture
• Lens Type: Optical TYPE III Lens, High Light Transmittance PC, Anti-UV and Flame Resistant
• Dimming: 0-10 Dimming
• Driver Located in Isolated Compartment for Improved Thermal Management
• Total Lumens: 21000LM Max.
• Color Temperatures: 5000K
• Color Rendering Index: CRI ≥ 70
• Rated Life: 70,000 hrs
