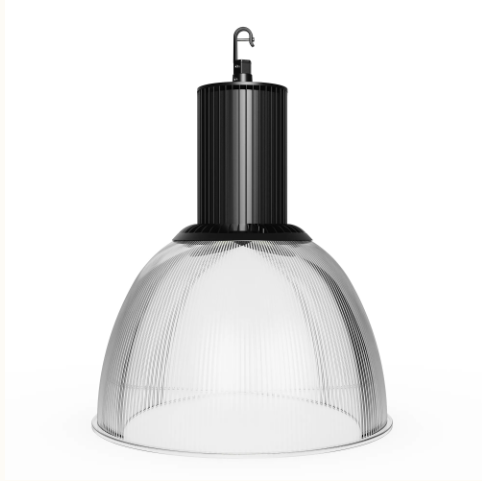

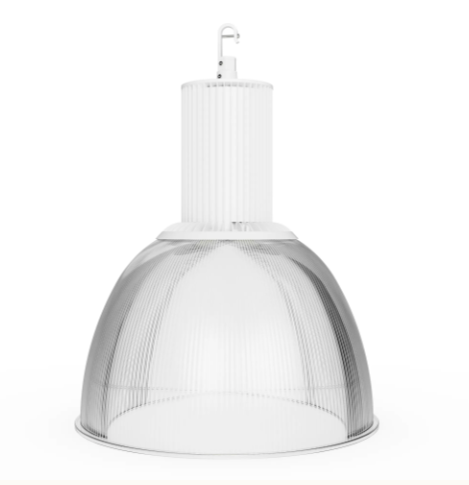

The RLB Series LED Round Low Bay is a power and CCT selectable commercial fixture designed for gyms, retail stores, warehouses, and open-area commercial applications. Delivering up to 16,800 lumens at 140 LM/W, it combines high-output performance with a prismatic reflector for broad, comfortable illumination. Features 0-10V dimming, selectable CCT (3000K/4000K/5000K), and optional factory-installed emergency backup or sensor controls. Includes a 1/2" threaded hook with set screw for quick suspended installation.

Electrical

• Input Voltage: 120-277VAC
• Wattage Selectable: 80W / 100W / 120W
• Dimming: 0-10V
• Power Factor: >0.9
• THD: <20%
• Operating Temperature: -40°F to 122°F
• SJTW 18AWG, 4FT cable provided

Mechanical

• Housing: Aluminum alloy with PC lens
• Finish: Black or White
• Reflector Included
• Dimensions: 18.9" Dia. x 21.9" H
• Housing Diameter: 5.74"
• Weight: 8.82 lbs.
• IP Rating: IP65
• Mounting: Hook mount included (1/2" threaded hook with set screw)
• Optional pendant stem mounting available

Lighting

• Lumen Output: 11,200 / 14,000 / 16,800 LM
• Efficacy: 140 LM/W
• CCT Selectable: 3000K / 4000K / 5000K
• CRI: >80
• Beam Angle: 60°
• Prismatic reflector for wide, comfortable low bay illumination
• Flicker-free performance

Certifications

• UL Listed
• 5-Year Warranty
