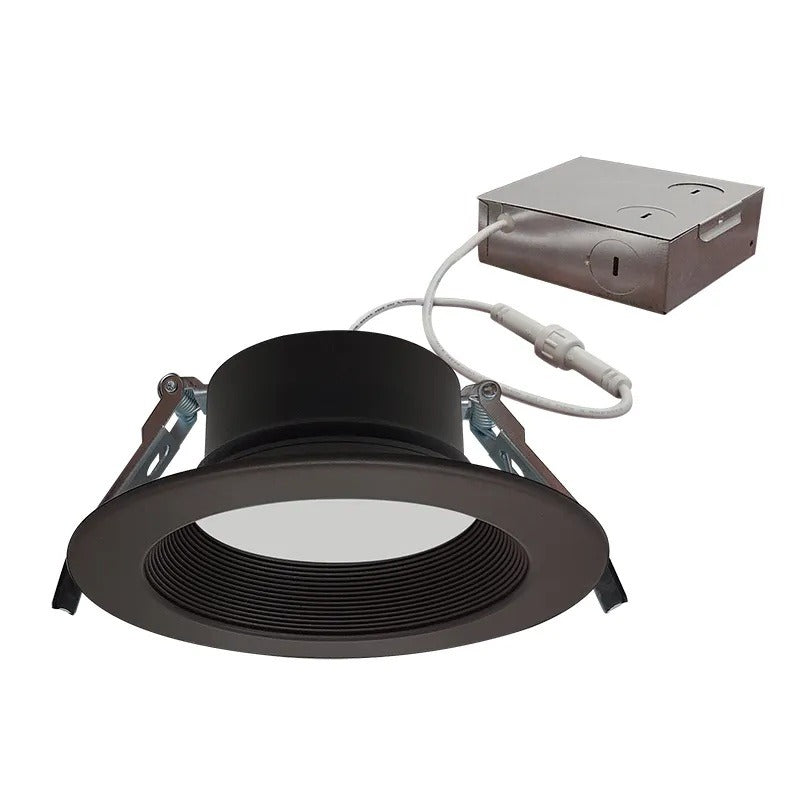

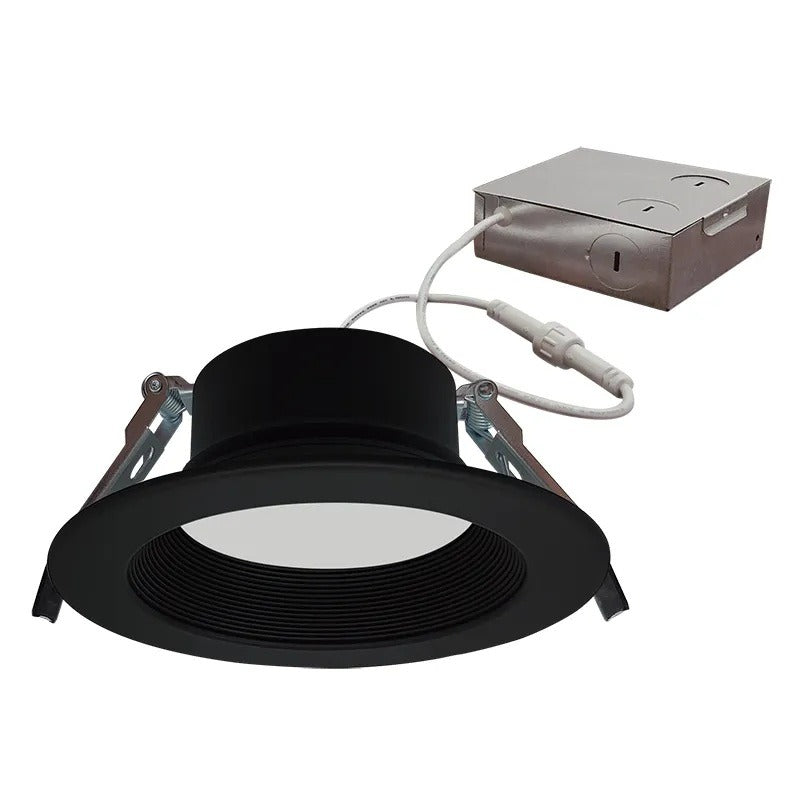

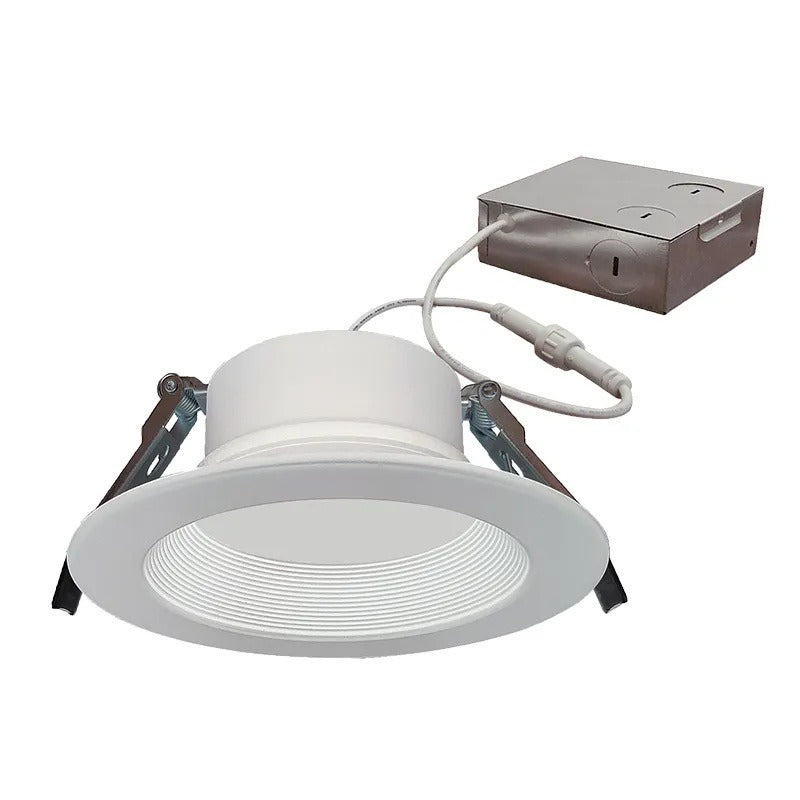

Westgate RDL4S-BF-MCT5 Series Color Selectable 12-Watt LED Dim to Warm Canless Deep Recessed 4-Inch Downlight Fixture
Westgate RDL4S-BF-MCT5 Series Color Selectable 12-Watt LED Dim to Warm Canless Deep Recessed 4-Inch Downlight Fixture
Specifications
Specifications
| Part Number# | RDL4S-BF-MCT5 |
|---|---|
| Type of Area: | Home & Architectural, Hotels, Commercial Offices |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,050 |
| Wattage: | 12 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ETL Listed |
| CRI: | >90 |
| Dimensions: | 5.5" (D) x 2.5"(H) x 1.13"(W) |
| Width: | 1.13” |
| Height: | 2.5" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate's RDL4S 12-Watt LED Dim to Warm Canless Deep Recessed 4-Inch Downlight Fixture boasts versatility with its color selectable feature, allowing users to choose from five different color temperatures (2700K to 5000K). This efficient fixture has a power factor of greater than 0.90 and a wattage of 12W, providing an efficacy of 87 LPW. Made from durable die-cast aluminum alloy, it ensures optimal heat dissipation and is suitable for installation in insulated ceilings. With a high brightness COB LED, a CRI of ≥90, and a beam angle of 36°, it delivers excellent illumination and a long rated life of 50,000 hours.
Features:
• Voltage: 120V AC
• Output Voltage: 36VDC
• Power Factor: >0.90
• Wattage: 12W
• Efficacy: 87 LPW
• Total Harmonic Distortion: ≤15 %
• Baffle Trim
• Up to 9 AWG18 Wires
• Durable, Die-Cast Aluminum Alloy For Optimal Heat Dissipation
• Junction box Included, Install Directly in Insulated Ceilings (IC) Without Any Thermal Housing
• Maximum Ambient Temperature: -40°F to 104°F
• Damp Location
• 5-Year Warranty
• Multi CCT (Selectable Switch on the Back of the driver)
• Can Rotate after Installation to Align
• LED: High Brightness COB LED
• Optics: White Translucent Acrylic
• Color Temperatures: 2700K/3000K/3500K/4000K/5000K
• Total Lumens: 1050LM
• Color Rendering Index: CRI ≥ 90
• Beam Angle: 36°
• Rated Life: 50,000 hrs
