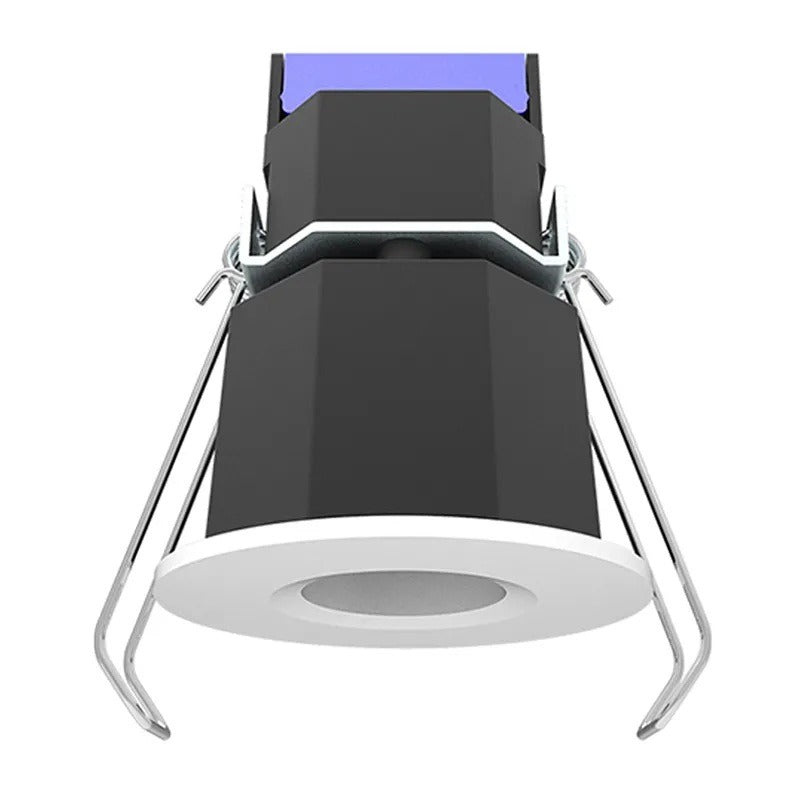

Westgate RDL1S-ST-MCT5-WH Color Selectable 8 Watt LED 1-Inch Round High Output Low Glare Canless Recessed Downlight Fixture
Westgate RDL1S-ST-MCT5-WH Color Selectable 8 Watt LED 1-Inch Round High Output Low Glare Canless Recessed Downlight Fixture
Specifications
Specifications
| Part Number# | RDL1S-ST-MCT5-WH |
|---|---|
| Type of Area: | Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 600 |
| Wattage: | 8 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ETL Listed |
| CRI: | >90 |
| Dimensions: | 1.94"(W) x 2.82"(H) x 2.24"(D) |
| Width: | 1.94" |
| Height: | 2.82” |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate's RDL1S LED Anti-glare Downlight is a versatile and efficient canless recessed downlight fixture, ideal for various settings. With a voltage of 120V AC and an efficacy of 75 LPW, it ensures optimal performance. Its die-cast aluminum alloy construction provides superior heat dissipation, and the fixture can be installed directly in insulated ceilings without any thermal housing. Additionally, this high output LED light features selectable color temperatures and a beam angle ranging from 15 to 36 degrees, ensuring tailored lighting solutions.
Features:
• Voltage: 120V AC
• Output Voltage: 36VDC
• Power Factor: >0.90
• Wattage: 8W
• Efficacy: 75 LPW
• Total Harmonic Distortion: ≤15 %
• 1-1/4”Thick
• Up to 9 AWG18 Wires
• Durable, Die-Cast Aluminum Alloy For Optimal Heat Dissipation
• Junction box Included, Install Directly in Insulated Ceilings (IC) Without Any Thermal Housing
• Maximum Ambient Temperature: -40°F to 104°F
• Damp Location
• 5-Year Warranty
• Multi CCT (Selectable Switch on the back of the driver)
• Can Rotate After Installation to Align
• LED: High Brightness COB LED
• Optics: PC Lens for Even Lumen Distribution
• Total Lumens: 600LM
• Color Temperature: 2700K/3000K/3500K/4000K/5000K
• Color Rendering Index: CRI ≥ 90
• Beam Angle: 15/24/36°
• Rated Life: 50,000 hrs
