Westgate LWAX-SM-12W DLC Listed 12 Watt LED Cut-off Wall Pack Light Fixture Dimmable 120-277V
Westgate LWAX-SM-12W DLC Listed 12 Watt LED Cut-off Wall Pack Light Fixture Dimmable 120-277V
Specifications
Specifications
| Part Number# | LWAX-SM-12W |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Wall Mount & Building Exteriors |
| Lumen Output: | 1500 |
| Wattage: | 12 Watt |
| Certifications | Dimmable, DLC Approved, IP65 / IP66 / IP67, UL Listed |
| CRI: | 80 |
| Dimensions: | 4” x 5” x 6” |
| Width: | 5” |
| Length: | 4” |
| Height: | 6” |
| Product Warranty: | 7 Year |
| Voltage: | Multivolt 120V-277V |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

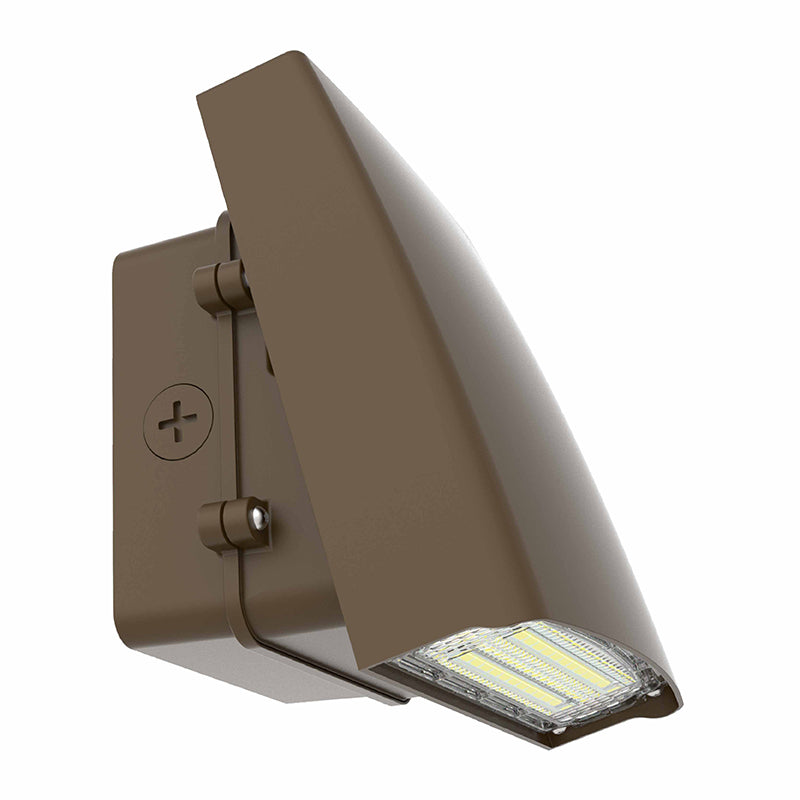

This 12-Watt LWAX Series LED Cut-off Wall Pack Light Fixture delivers up to 1500 lumens with Multi-Color Temperature (3000K/4000K/5000K). It is perfect for outdoor locations, Ideal for general site lighting, alleys, loading docks, doorway, pathways, and parking areas. Advanced 0-10V dimming capabilities for greater efficiency and has 70,000 hours of life and a seven-year warranty.
Features:
• High Light Transmittance, Anti-UV and Fire Resistant PC Lens
• LED Type/Brand: SMD 3030/ Philips Lumileds LEDs
• Four 1/2” Knockouts: 1 Top. 1 on Each Side, 1 Back
• Die-Cast Aluminum With Powder Coat Finish (Dark Bronze)
• 7-Year Warranty
Technical Specifications
Electrical:
• Voltage: 120-277VAC 60Hz
• Wattage: 12W
• Power Factor: >0.95
• Efficacy: 125 LPW
Mechanical:
• Die-Cast Aluminum With Powder Coat Finish
• High Light Transmittance, Anti-UV and Fire Resistant
Shatterproof PC Lens
• Light Head Can Be Adjusted From 0° to 90°
• Can Be Installed Facing Up (As An Uplight)
• Full Cutoff, Dark Sky Compliant
• Four 1/2” Knockouts: 1 Top. 1 on Each Side, 1 Back
• Operating Temperature: -4ºF -104ºF
• Wet Location
• 7-Year Warranty
• IP65
Lighting:
• Dimming: 0~10V Dimmable
• Multi CCT and Power (Switches are inside fixture)
• LED Type/Brand: SMD 3030/ Philips Lumileds LEDs
• The Type II Distribution is Used For Wide Walkways, On Ramps and Entrance Roadways, As Well As Other Long, Narrow Lighting
• Total Lumens: 1500LM
• Color Temperatures: 3000K/ 4000K/ 5000K
• Color Rendering Index: CRI ≥ 80
• Beam angle: 80° x 100°
• Rated life: 70,000 Hrs
Applications:
• General site Lighting
• Alleys
• Loading docks
• Doorways
• Pathways
• Parking areas
