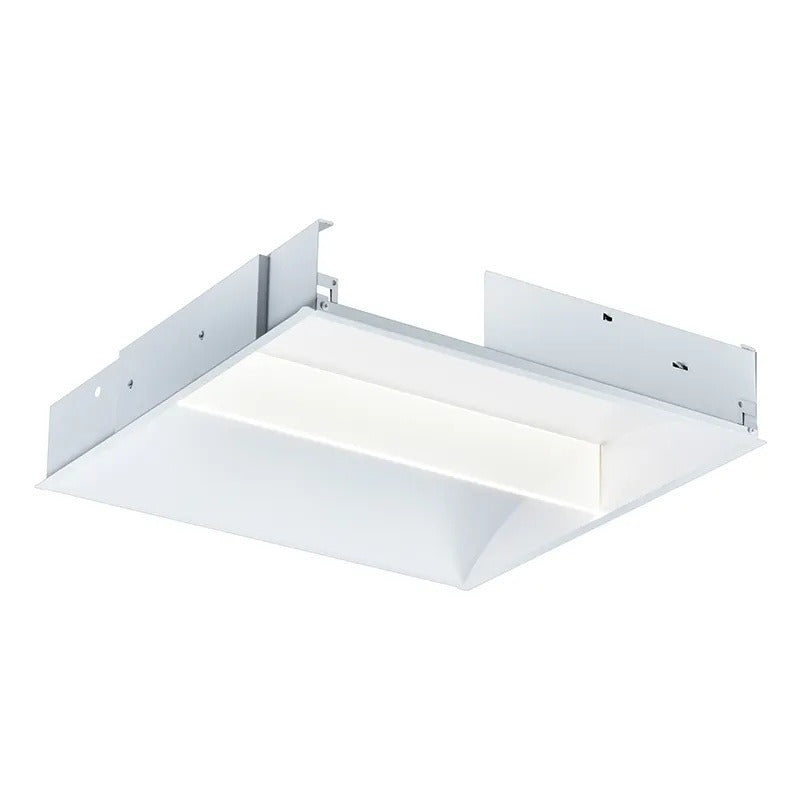

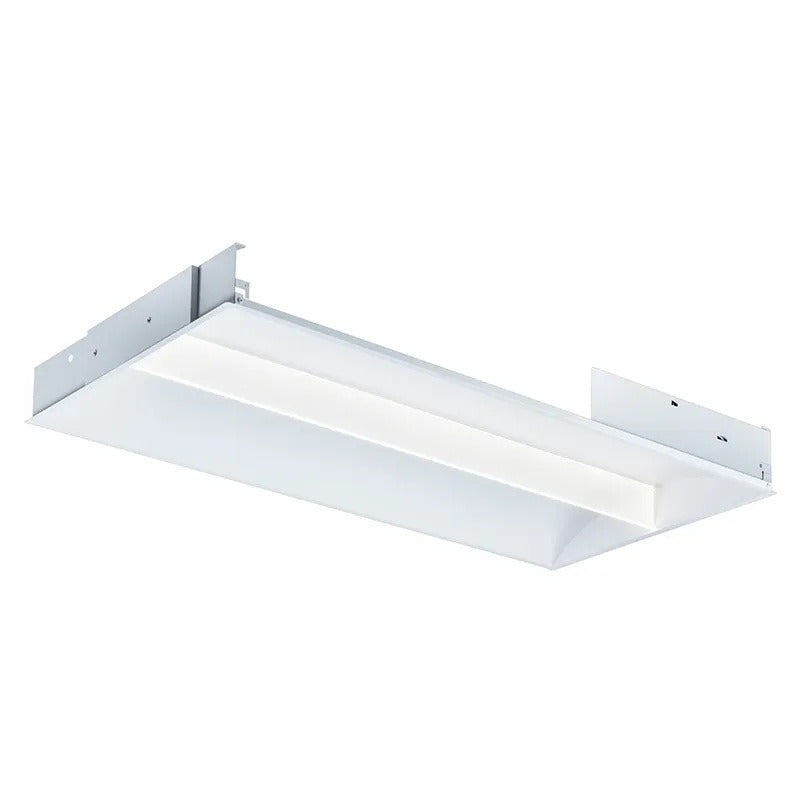

Westgate LTRL Series Power and Multi-CCT LED Architectural Advanced Blade Design Troffer Light Fixture Dimmable
Westgate LTRL Series Power and Multi-CCT LED Architectural Advanced Blade Design Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | LTRL |
|---|---|
| Type of Area: | Schools, Hospitals, Commercial Offices, Education, Hospitality, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,450 - 8,280 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, UL Listed |
| CRI: | ≥ 80 |
| Width: | 23.75" - 47.75" |
| Height: | 23.75" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate's LTRL Series Architectural Advanced Blade Design Troffer is a premium LED lighting fixture engineered for modern commercial interiors. Its innovative blade-style diffuser provides uniform, glare-free illumination, enhancing visual comfort and architectural appeal. With selectable wattage and color temperatures via an integrated switch, this fixture offers flexibility, energy efficiency, and advanced 0-10V dimming control. Built with durable cold-rolled steel and rated for 50,000 hours, it's ideal for offices, educational facilities, healthcare environments, and more, backed by a 5-year warranty.
Features:
• Multi CCT & Power (Selectable Switch On Back Of Fixture)
• Dimmable: 0~10V Dimming
• LED Type: SMD 2835
• Total Lumens: (2x2) 3450LM/4600LM/5750LM, (2x4) 8280LM Max.
• Wattage: (2x2) 30W/40W/50W, (2x4) 50W/60W/72W
• Cold-Rolled Steel
• Earthquake Hooks Built Into The Housing
• 5-Year Warranty
• White Finish
• Rated Life: 50,000 Hours
