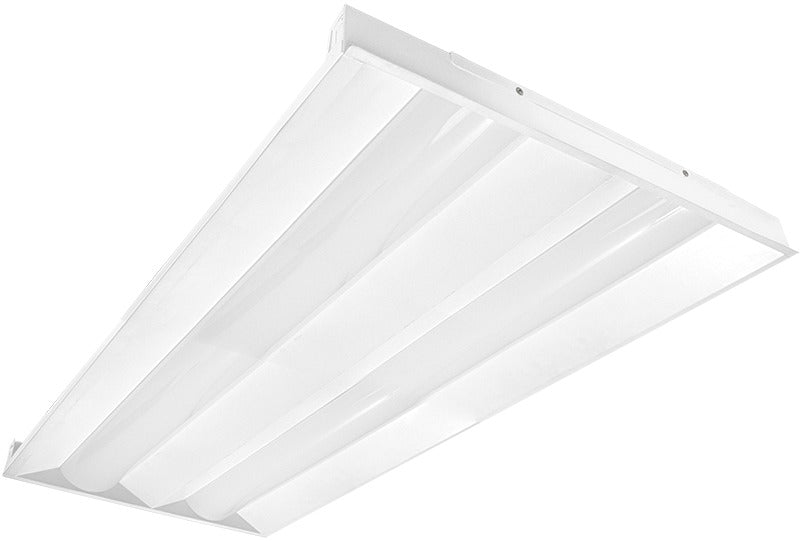

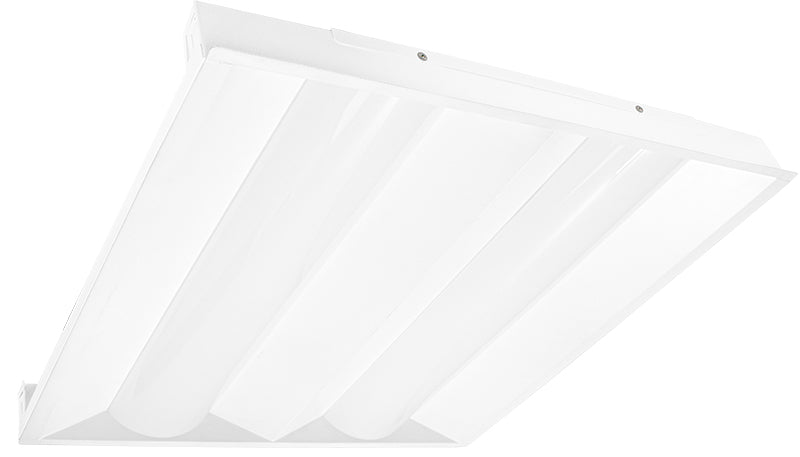

Westgate LTRD Series Wattage and Color Selectable LED Dual Lens Troffer Light Fixture Dimmable
Westgate LTRD Series Wattage and Color Selectable LED Dual Lens Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | LTRD |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hospitals, Commercial Offices, Education, Hospitality, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,150 - 6,250 |
| Wattage: | 50 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, UL Listed |
| CRI: | ≥ 80 |
| Width: | 23.75" |
| Length: | 23..75" - 47.5" |
| Height: | 2.40" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate's LTRB Series LED Back-Lit Troffer Light Fixture is perfect for various indoor commercial applications, from hotels to offices. It provides soft, wide light emission with a rated life of 50,000 hours. Featuring multiple color temperature and power options, this fixture includes pre-installed earthquake and suspension hooks for easy installation. With a beam angle of 110°, no flickering or RF interference, and an external driver mounted on top, it ensures both performance and reliability. The fixture also comes with a 5-year warranty for added peace of mind.
Features:
• High-quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
• Multi CCT: Selectable Multi-CCT & Power Switches Inside The Driver Box
• Dimmable: 0~10V Dimming
• Total Lumens: 3150LM/ 3750LM/ 4375LM
• Color Temperatures: 3500K/4000K/5000K
• Color Rendering Index: CRI ≥ 80
• IP Rating: IP20 Indoor use only
• Driver disconnect provided where required to comply with US and Canadian codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• 50,000 Hours Rated Life
• Lens: Polycarbonate
• 5-Year Warranty
