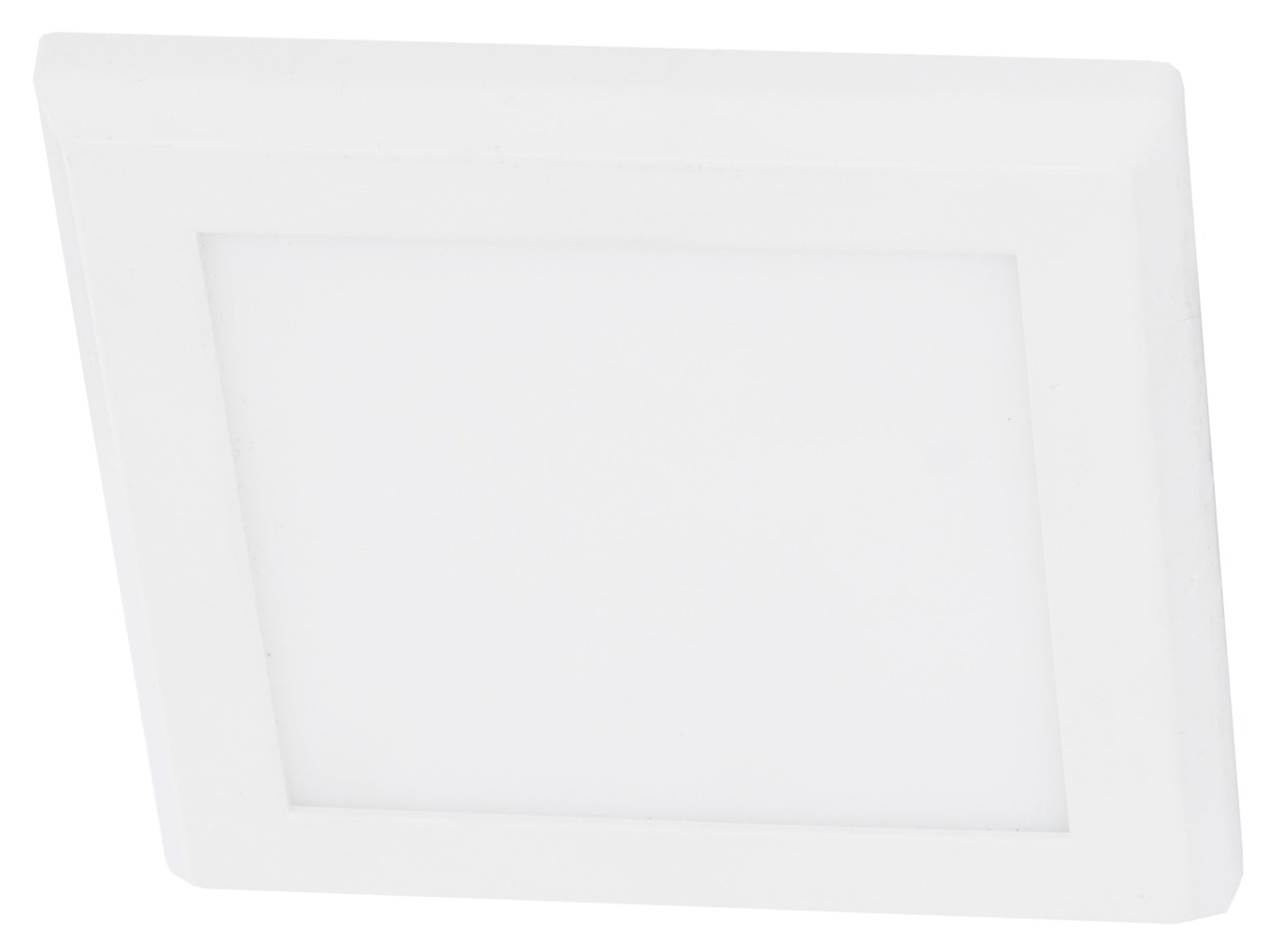

Westgate LPS-S4-50K-D Square LED Surface Mount Panel with Internal-Driver Triac Dimming
Westgate LPS-S4-50K-D Square LED Surface Mount Panel with Internal-Driver Triac Dimming
Specifications
Specifications
| Part Number# | LPS-S4-50K-D |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Parking Garage, Schools, Hotels, Commercial Offices, Education, Hospitality, Retail |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 700 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, UL Listed |
| CRI: | 90+ |
| Dimensions: | 5.11" x 5.11" x 0.51" |
| Width: | 5.11" |
| Length: | 5.11" |
| Height: | 0.51" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -13 Deg F |
| Voltage: | 120V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This Square Surface Mount Panel Light is an excellent choice for commercial indoor applications such as hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities and more. Fits on Octagonal, Round, and Square electrical boxes at 2.125-Inches. Delivers 70-80 lumens per watt with TRIAC dimming. Highly recommended at 50,000 hours rated life and backup by 5-year warranty.
Lighting Specifications:
• Dimming: TRIAC dimming
• Recommended Dimmers:DVCL-153P, MSCL-OP153M, CTCL-153P, SCL-153P
• Total lumens: 700LM
• Color temperature: 5000K/4000K/3000K
• Color rendering index: >90
Electrical:
• Voltage: 120VAC 50/60Hz
• Wattage: 10W/12W/16W
• Power factor: >0.95
• Efficacy: 70LM-80LM/W
Housing:
• White finish surface mount panel
• External Driver
• Operating temperature: -13°F ~ 104°F
• Lifespan: 50,000 hrs.
• Suitable for Damp Locations
