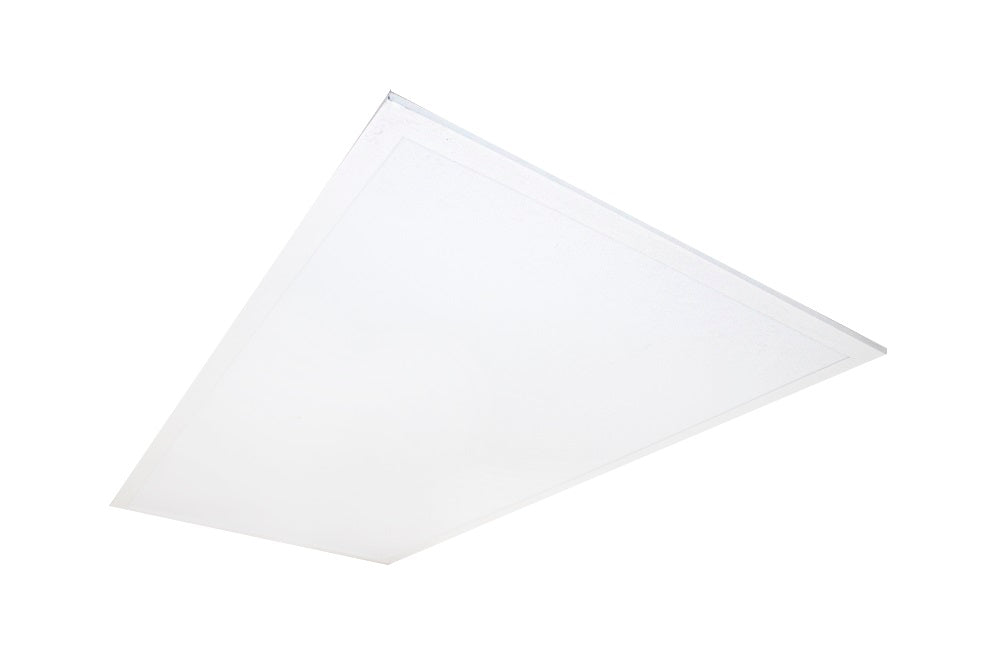

Westgate LPNG-2X4-7KLM-D DLC Listed LPNG Series 60 Watt 2X4 LED Backlit Panel Light Fixture Dimmable - While Supplies Last
Westgate LPNG-2X4-7KLM-D DLC Listed LPNG Series 60 Watt 2X4 LED Backlit Panel Light Fixture Dimmable - While Supplies Last
Specifications
Specifications
| Part Number# | LPNG-2X4-7KLM |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hotels, Commercial Offices, Education, Hospitality, Retail, Banking |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 6,500 - 7,920 |
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, UL Listed |
| CRI: | ≥ 80 |
| Dimensions: | 47.8" x 23.8" x 1.75" |
| Width: | 23.8" |
| Length: | 47.8" |
| Height: | 1.75" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
*Price protected pricing through 2025 as long as the item is in stock.
ShineRetrofits Input:
Westgate's LPNG LED Blacklit Panel Light is an excellent choice for commercial indoor applications such as hotels, offices, retail outlets, restaurants, parking garages, storage rooms, conference rooms, education facilities and more. Safe and highly efficient up to 120 lumens per watt, no infrared rays, no ultraviolet radiation, and no thermal effect. Select from 2700K, 3500K, 4000K, and 5000K color temperatures available with dimming 0~10V. Highly recommended at 50,000 hours rated life and 5-year warranty.
Features:
• Soft and Wide Light-Emitting
• No infrared rays, No Ultraviolet Radiation, No Thermal Effect
• 50,000 Hours Rated Life
• No flickering, No humming, No RF interference
• Earthquake hooks and Suspension Hooks Pre-Installed
Lighting:
• Dimmable: 0~10V Dimming
• Total Lumens: 7000LM/ 7200LM
• Color Temperatures: 2700K/ 3500K/ 4000K/ 5000K
• Color Rendering Index: CRI ≥ 80
• 5-Year Warranty
Electrical:
• Voltage: AC120V-277V 50/60Hz
• Power Factor: >0.90
• Wattage: 60W
• Efficacy: 116/ 120 LPW
• Fixture Operating Voltage: 36VDC
• Current (mA): 1050mA 36V DC
• Total Harmonic Distortion: ≤ 20 %
Mechanical:
• White Finish
• Earthquake Hooks and Suspension Hooks pre-installed
• External driver mounted on top
• Operating Temperature: -68ºF~104ºF
• Surge Protector: 1KV, 2.5KV
• Rated life: 50,000 hrs
*Price Protected Items (While Supplies Last)
LPNG-2X4-7KLM-35K-D
LPNG-2X4-7KLM-50K-D
