Westgate LOHB-4FT DLC Listed 120-Watt 4FT LED Wall Wash Outdoor Light Fixture
Westgate LOHB-4FT DLC Listed 120-Watt 4FT LED Wall Wash Outdoor Light Fixture
Specifications
Specifications
| Part Number# | LOHB-4FT-120W |
|---|---|
| Type of Area: | Sign & Billboards, Wall Mount & Building Exteriors |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 15,300 - 15,600 |
| Wattage: | 120 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | DLC Approved, IP65 / IP66 / IP67 |
| CRI: | ≥ 70 |

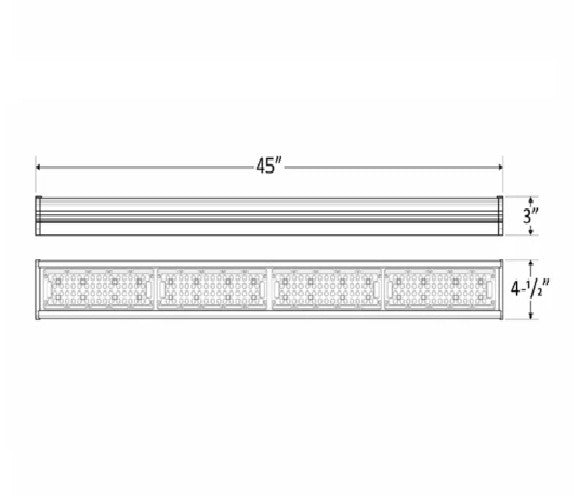

| Dimensions: | 45" x 4.5" x 3” |
| Width: | 4.5" |
| Length: | 45" |
| Height: | 3” |
| Dimmable: | No |
| Product Warranty: | 7 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
This LOHB-4FT DLC Listed 120-Watt LED Wall Wash Outdoor Light Fixture delivers powerful illumination with up to 15,600 lumens at an impressive 125 lumens per watt. Designed with durability in mind, it features a die-cast aluminum body, an IP65 rating for wet locations, and a 50,000-hour lifespan. Ideal for wall washing, signage, and both indoor and outdoor applications, it operates efficiently in temperatures ranging from -40°F to 104°F. Backed by a 7-year warranty, this fixture is a reliable choice for small stadiums, tracks, and suspended lighting.
Technical Specifications:
• Die-cast aluminum with black powder coat finish
• Removable 1/2" NPT Threaded Knuckles Included
• Removable Half Shroud Included
• Cord Type: 3.2 SJTW 18/3 AWG Cable
• LED: Lumileds Luxeon 3030 High Flux LED
• Lumens: 15300LM/15600LM
• Wattage: 120W
• Voltage: 120 VAC, 50/60Hz AC
• Efficacy: 125LPW
• Power Factor: >0.9
• Operating Temp: -40°F to 104°F
• THD: <20%
• Beam Angle: 90°
• Color Rendering Index: CRI ≥ 70
• Lifespan: 50,000 hours
• 7-year Warranty
• IP Rating: IP65, Wet Location
Applications:
• Wall wash
• Sign
• Suspended outdoor/indoor lighting
• Small stadium
• Tracks
