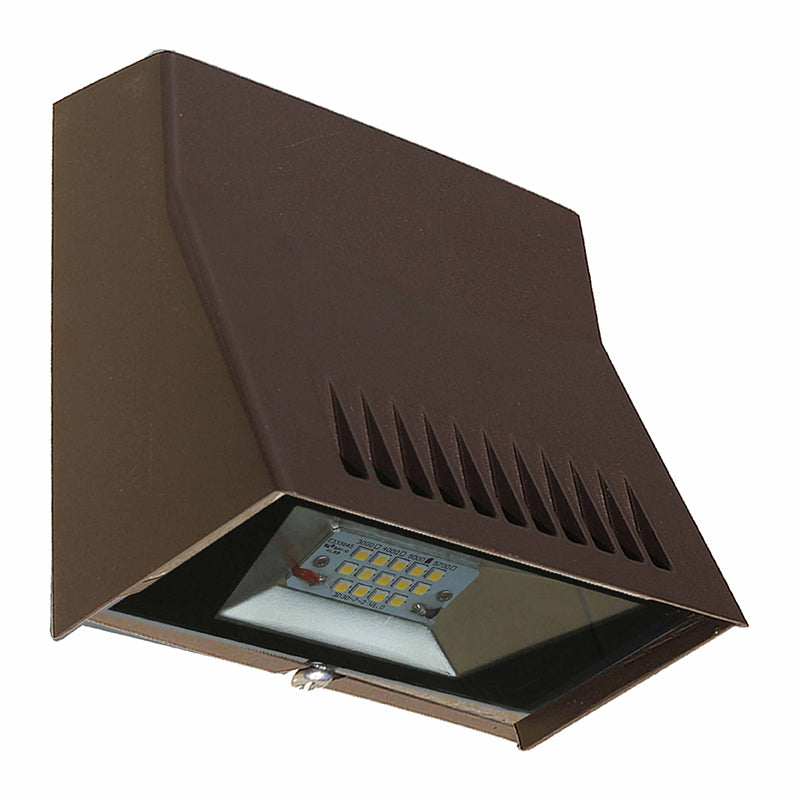

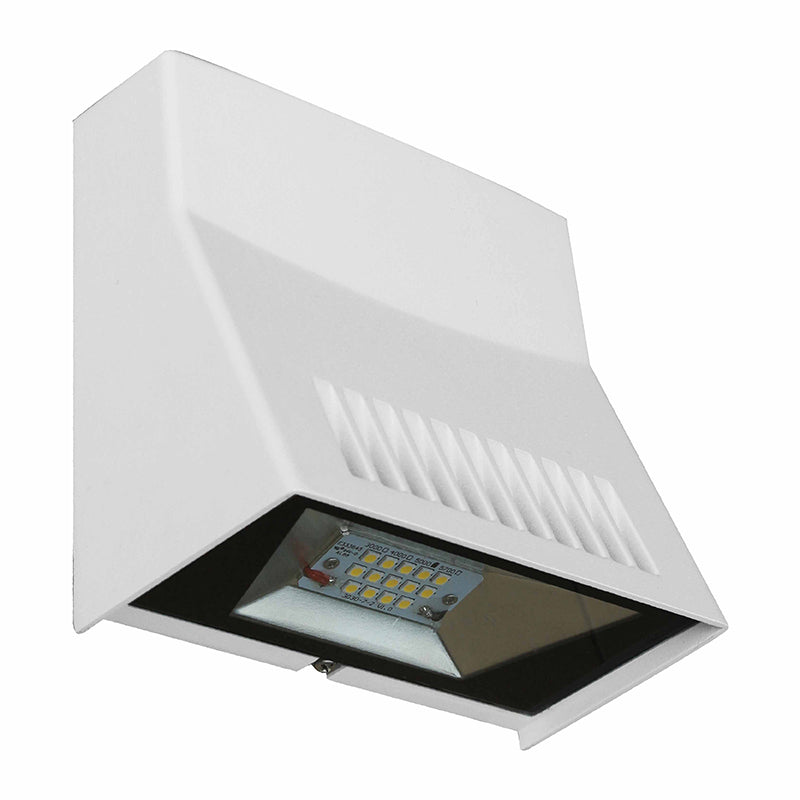

Westgate LMW Series 12-Watt LED Mini Cutoff Wallpack Outdoor Lighting Fixture
Westgate LMW Series 12-Watt LED Mini Cutoff Wallpack Outdoor Lighting Fixture
Specifications
Specifications
| Part Number# | LMW-12W |
|---|---|
| Type of Area: | Home & Architectural, Parking Garage, Wall Mount & Building Exteriors, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,300 |
| Wattage: | 12 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | UL Listed |
| CRI: | ≥ 80 |
| Dimensions: | 2.75" x 5” x 5.125" |
| Width: | 5” |
| Length: | 2.75" |
| Height: | 5.125" |
| Dimmable: | No |
| Product Warranty: | 7 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate LMW Series 12-Watt LED Mini Cutoff Wallpack Outdoor Lighting Fixture is a robust and efficient lighting solution ideal for various applications, including general site lighting, alleys, loading docks, doorways, and pathways. Constructed from die-cast aluminum with a powder coat finish and highly transparent tempered glass, this fixture offers 1300 lumens with an efficacy of up to 135 LPW and a color rendering index (CRI) of 80 or higher. It operates on a voltage range of 120-277VAC at 80Hz and is powered by Lumileds Lexeon 3030 High Flux LEDs, ensuring high performance and durability with a lifespan of 70,000 hours. This fixture is suitable for wet locations with an IP54 rating and has a 7-year warranty.
Technical Specifications:
• Die-Cast Aluminium with Powder Coat Finish
• High Transparent Tempered Glass
• Lumens: 1300LM
• Wattage: 12W
• Voltage: 120-277VAC 80Hz
• Chip: Lumileds Lexeon 3030 High Flux LED
• Efficacy: 125/130/135 LPW
• Color Rendering Index: CRI ≥ 80
• Beam Angle: 100° x 100°
• Power Factor: >0.9
• Operating Temp: -40°F to 104°F
• Lifespan: 70,000 hours
• 7-year warranty
• IP Rating: IP54, Wet Locations
Applications:
• General Site Lighting
• Alleys
• Loading docks
• Doorways
• Pathways
• Parking areas
• Residential area
• Balcony
• Terrace
• Small shops
