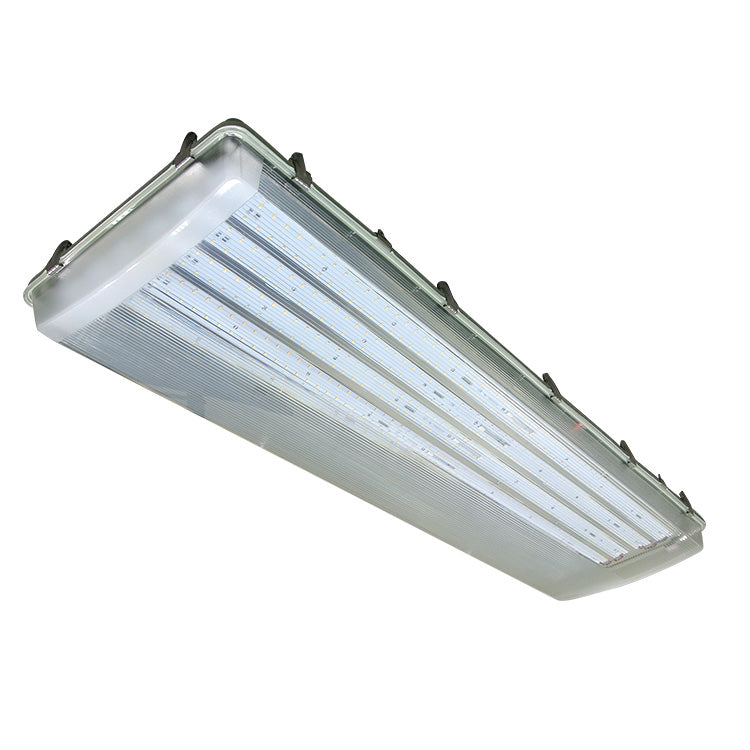

Westgate LLVT-4FT-100W-MCT-D 100 Watt 4FT Multi-Color LED Linear Vapor Light Fixture Dimmable
Westgate LLVT-4FT-100W-MCT-D 100 Watt 4FT Multi-Color LED Linear Vapor Light Fixture Dimmable
Specifications
Specifications
| Part Number# | LLVT-4FT-100W-MCT-D-480V |
|---|---|
| Type of Area: | Industrial & Warehouse, Parking Garage, Maintenance Rooms, Factory / Industrial, Retail |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 13,500 |
| Wattage: | 100 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, IP65 / IP66 / IP67, LM79 / LM80, UL Listed |
| CRI: | >82 |
| Dimensions: | 52.4" x 14.6" x 4.7" |
| Width: | 14.6" |
| Length: | 52.4" |
| Height: | 4.7" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Voltage: | 480V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This LLVT Series 100-Watt 4ft LED Linear Vapor Light Fixture is versatile lighting for indoor and outdoor applications such as restaurants, bakeries, food facilities, gyms, pool areas workshops, garages, canopies, parking garages, cold storage facilities, food processing facilities, farmyards, and more. It delivers 13,500 lumens with Multi-Color Temperatures at 4000K and 5000K with 50,000 hours rated life and back-up by a five-year warranty.
Features:
• Grey Finish
• 5-Year Warranty
• 50,000 Hours Rated Life
• Lens: Clear Polycarbonate (Opal Lens Available)
• Vandal-Proof Polycarbonate Lens
• MCT: Multi Color Temperature (Selectable Switch Inside Fixture)
Technical Specifications
Electrical:
• Voltage: 120-277VAC 50/60Hz
• Wattage: 100W
• Power Factor: >0.98
• Efficacy: 135 LPW
Mechanical:
• Grey Finish
• Housing: Polycarbonate
• Stainless Steel Clamp
• Vandal-Proof Polycarbonate Lens
• Polycarbonate Construction is Highly Impact Resistant
• UV-stabilized Polycarbonate Diffuser Eliminates Glare
• Diffuser Crystals Enhance Even Light Distribution
• Stainless Steel Clips Evenly Seal the Luminaire
• Operating Temp: -22°F to 110°F
• Suitable for Wet Locations
• IP Rating: IP65
Lighting:
• Dimmable: 0~10V Dimming
• LED SMD type: Edison 2835
• Total Lumens: 13500LM
• Color Temperatures: 4000K/ 5000K
• Color Rendering Index: CRI ≥ 80
Applications:
• Ideal for offices, retail stores, showrooms, and residential applications. Uniquely suited for areas where accessing the fixture is challenging
• Suitable for restaurants, bakeries, food facilities, gyms, pool areas, and any application where NSF-certified fixtures or high-end architectural designer-grade fixtures are required.
• NSF/ANSI 2:2015 Food Equipment: Splash Zone: Equipment surfaces that are subject to splash and food spillage during operation of the equipment other than those in a direct contact food-zone
