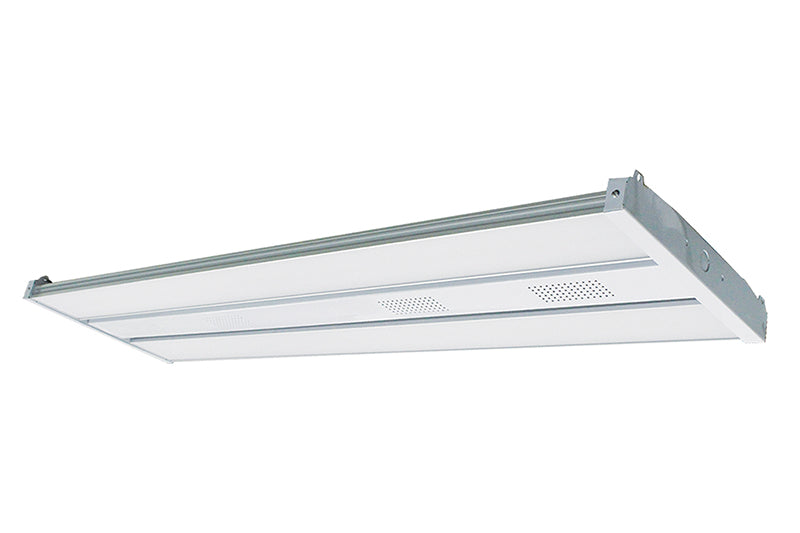

Westgate LLHB4-300W-MP 4th-Gen 4FT Power Adjustable LED Linear High Bay Fixture Dimmable - While Supplies Last
Westgate LLHB4-300W-MP 4th-Gen 4FT Power Adjustable LED Linear High Bay Fixture Dimmable - While Supplies Last
Specifications
Specifications
| Part Number# | LLHB4-300W-MP |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Manufacturing Plants, Factory / Industrial |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 46,500 |
| Wattage: | 300 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, UL Listed |
| CRI: | >80 |
| Dimensions: | 46.75" x 17.75" x 2" |
| Width: | 17.75" |
| Length: | 46.75" |
| Height: | 2" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
Price protected pricing through 2025 as long as the item is in stock.
ShineRetrofits Input:
This LLBH4 Series 4th-Gen 4FT Power Adjustable LED Linear High Bay Fixture is great for damp locations, suitable for manufacturing, warehousing, and other large indoor spaces with mounting heights from 10ft. to 40ft. It has advanced 0-10V dimming capabilities for greater efficiency. It delivers 46,500 lumens with Multi-Color Temperatures of 4000K and 5000K at 50,000 hours of fixture life and has a five-year warranty.
Features:
• High-quality LED Chips to provide high efficiency, heat dissipation
• Stability, and lumen maintenance.
• Polycarbonate lens, high flame retardant point
• 50,000 hours rated life
• 5-Year Warranty
• Multi-Power: The Switch is on the driver
Technical Specifications
Electrical:
• Voltage: 120~277VAC/50~60 Hz
• Wattage: 150W / 225W / 300W
• Power factor: >0.95
• Efficacy: 155 LPW
Mechanical:
• Surge protector
• Steel housing
• Steel Thickness: 24 Gauge
• V-hooks
• Unprecedented quality.
• Aluminum LED board
• Operating temperature: -4°F ~ 131°F
• Suitable for damp locations
Lighting:
• Dimming: 0~10V dimmable
• Lens: Polycarbonate Lens
• Multi-Power: The Switch is on the driver
• Total lumens: 46500LM Max.
• Color temperatures: 4000K and 5000K
• Color rendering index: >80
• Wide Beam angle
• LED SMD type: Edison 2835
Applications:
• Warehouse
• Manufacturing Plants Distribution Centers
• Industrial Commercial
• Grocery Stores Gymnasiums
• Cold Storage
