Westgate LLHB4-100W-MP Multi-Power 4th Gen LED Linear High Bay Fixture Dimmable - While Supplies Last
Westgate LLHB4-100W-MP Multi-Power 4th Gen LED Linear High Bay Fixture Dimmable - While Supplies Last
Specifications
Specifications
Part Number# | LLHB4-100W-MP |
---|---|
Type of Area: | Gym & Sports, Industrial & Warehouse, Manufacturing Plants, Factory / Industrial |
Lamp Life: | 41,001 - 50,000 Hours |
Lumen Output: | 6,800 - 13,600 |
Wattage: | 100 Watt |
Ballast Start Type: | Instant Start |
Certifications | 5 Year Warranty, Dimmable, DLC Approved, UL Listed |
CRI: | >80 |
Dimensions: | 24.25" x 13.75" x 2" |
Width: | 13.75" |
Length: | 24.25" |
Height: | 2" |
Dimmable: | Yes |
Product Warranty: | 5 Year |
Minimum Start Temperature: | -4 Deg F |
Voltage: | Multivolt 120V-277V |
Manufacturer: | Westgate |
Technology: | LED - New Fixture |
Fixture Length: | 2 Feet / 24 Inches |
Details
Details
Price protected pricing through 2025 as long as the item is in stock.
ShineRetrofits Input:

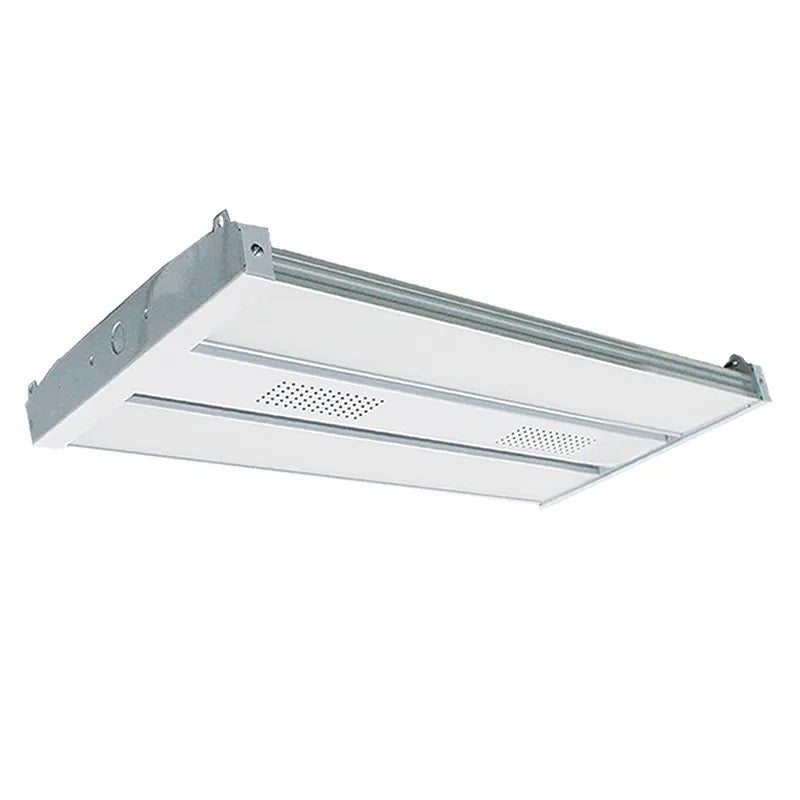

Westgate's LLHB4-100W-MP Multi-Power 4th Gen LED Linear High Bay Fixture is an ideal replacement for conventional HID and fluorescent lighting systems. This fixture offers selectable 50W, 80W, and 100W, delivering up to 12,000 lumens with high-efficiency LED chips and a polycarbonate lens for excellent heat dissipation and durability. With 0-10V dimming, surge protection, and robust 24-gauge steel housing, it is built for long-lasting performance in damp locations, featuring a 50,000-hour rated lifespan and a 5-year warranty.
Features:
• High-quality LED Chips to Provide High Efficiency, Heat Dissipation
• Stability, and Lumen Maintenance
• Polycarbonate Lens, High Flame Retardant Point.
• Wattage: 50/80/100W
• Multi-Power: The Switch Is On The Driver
• Dimming: 0~10V Dimmable
• Lens: Polycarbonate Lens
• Total lumens: 12000LM (Per Industry Standards, Lumens are Reported Without Frosted Lens)
• Color Temperatures: 4000K and 5000K
• Color Rendering Index: >80
• Wide Beam Angle
• Surge Protector
• Steel Housing
• Steel Thickness: 24 Gauge
• V-Hooks
• Unprecedented Quality.
• Aluminum LED Board
• Operating Temperature: -4°F ~ 131°F
• Suitable For Damp Locations
• 50,000 Hours Rated Life
• 5-Year Warranty
Applications:
• Warehouse
• Manufacturing Plants Distribution Centers
• Industrial Commercial
• Grocery Stores Gymnasiums
