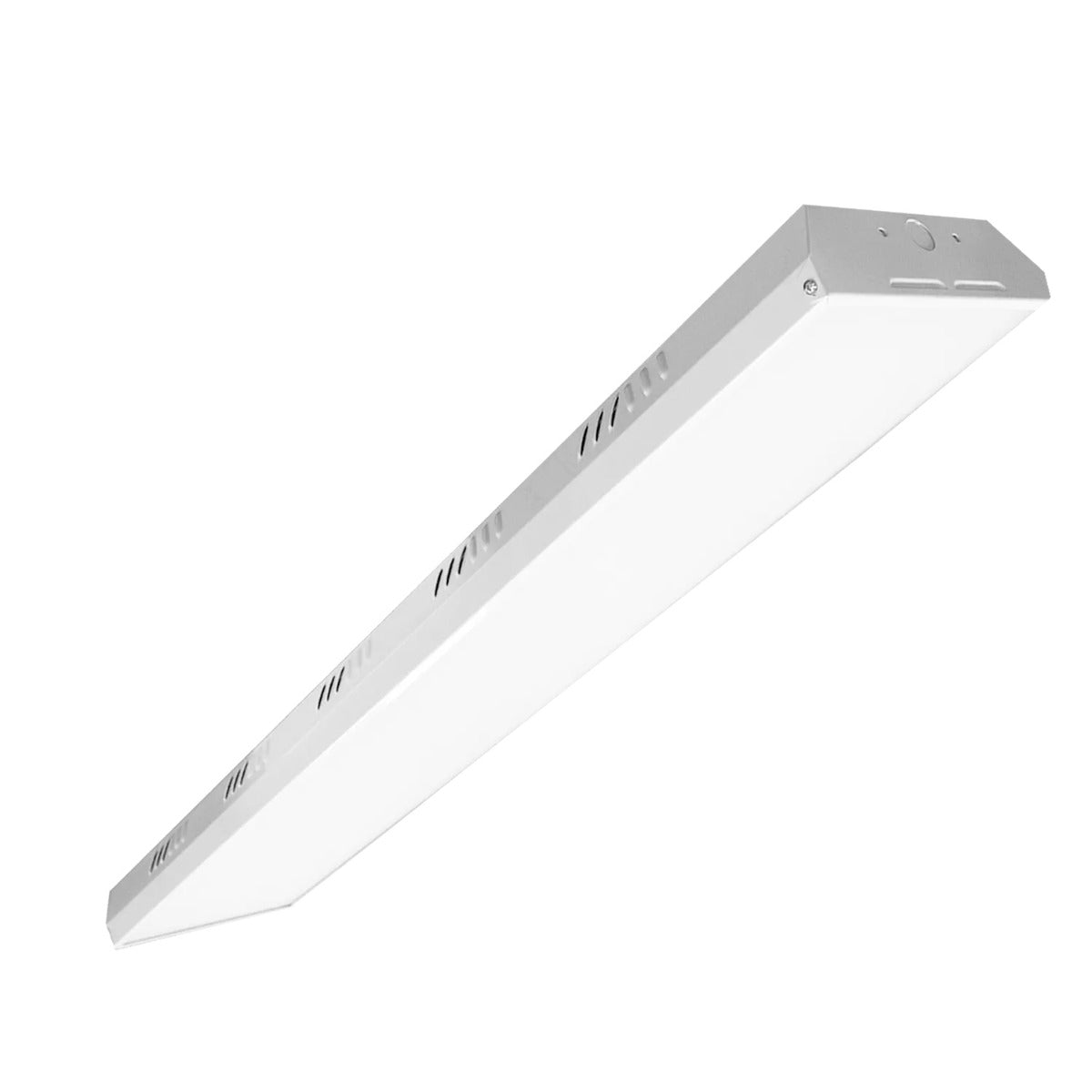

Westgate LLHB-240W-MP Multi-Power LED Linear Highbay Fixture V-hook - Suspension Cable Not Included - While Supplies Last
Westgate LLHB-240W-MP Multi-Power LED Linear Highbay Fixture V-hook - Suspension Cable Not Included - While Supplies Last
Specifications
Specifications
Part Number# | LLHB-240W-MP |
---|---|
Type of Area: | Industrial & Warehouse, Manufacturing Plants, Commercial Offices, Factory / Industrial |
Lamp Life: | 41,001 - 50,000 Hours |
Lumen Output: | 25,000 |
Wattage: | 200 Watt |
Ballast Start Type: | Instant Start |
Certifications | 5 Year Warranty, 400W HID Equivalent, Dimmable, LM79 / LM80, UL Listed |
CRI: | >80 |
Dimensions: | 46" x 8.875" x 2.75" |
Width: | 8.875" |
Length: | 46" |
Height: | 2.75" |
Dimmable: | Yes |
Product Warranty: | 5 Year |
Minimum Start Temperature: | -4 Deg F |
Voltage: | Multivolt 120V-277V |
Manufacturer: | Westgate |
Technology: | LED - New Fixture |
Fixture Length: | 4 Feet / 48 Inches |
Details
Details
*Price protected pricing through 2025 as long as the item is in stock.
ShineRetrofits Input:
Westgate's LLHB Multi-Power LED Linear Highbay Fixture is designed to replace traditional HID and fluorescent systems. Offering selectable 100W, 150W, and 200W wattages, this fixture delivers up to 25,000 lumens with a frosted polycarbonate lens and high-efficiency LED chips. It features a 0-10V dimming capability, a built-in surge protector, and a durable 24-gauge steel housing, ensuring long-lasting performance in damp locations. With a lifespan of 50,000 hours and a 5-year warranty, this fixture provides reliable, energy-efficient lighting.
Features:
• High-quality LED Chips to Provide High Efficiency, Heat Dissipation
• Stability, and Lumen Maintenance
• Polycarbonate Lens, High Flame Retardant Point.
• Wattage: 100W/150W/200W
• Frosted Lens
• Surge Protector
• Steel Housing
• Steel Thickness: 24 Gauge
• V-Hooks
• Unprecedented Quality
• Aluminum LED Board
• Operating Temperature: -4°F ~ 131°F
• Suitable For Damp Locations
• Dimming: 0~10V Dimmable
• Lens: Polycarbonate Lens
• Total lumens: 25000LM
• Color Temperatures: 4000K/5000K
• Color Rendering Index: >80
• Wide Beam Angle
• 50,000 Hours Rated Life
• 5-Year Warranty
Applications:
• Warehouse
• Manufacturing Plants Distribution Centers
• Industrial Commercial
• Grocery Stores Gymnasiums
*Price Protected Items (While Supplies Last)
LLHB-240W-MP-50K-D
