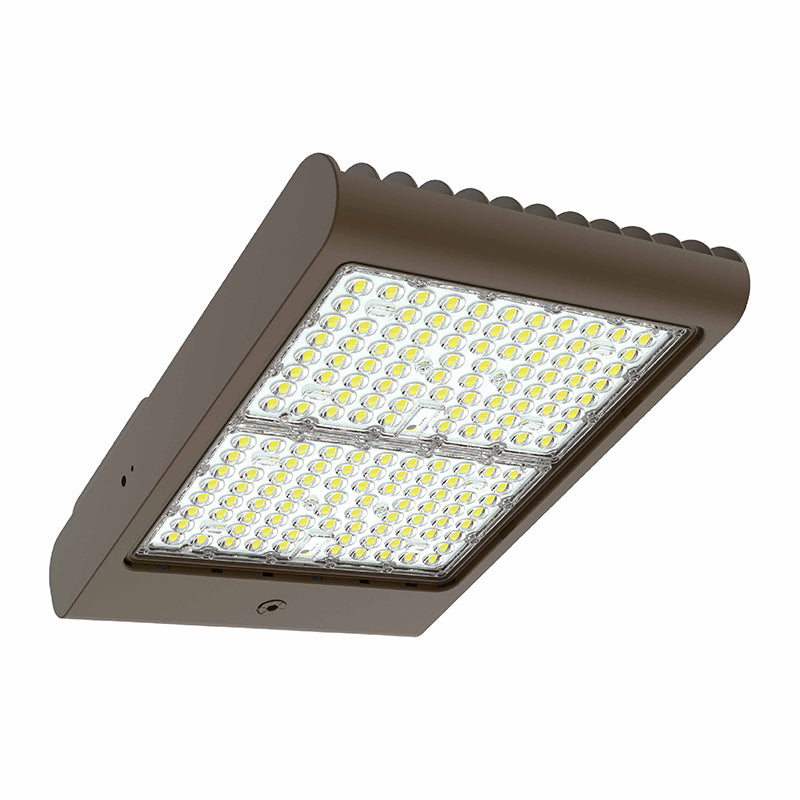

Westgate LFX-XL-150-300W DLC Listed 150W/200W/240W/300W LED Power Adjustable Flood/Area Light Fixture Dimmable
Westgate LFX-XL-150-300W DLC Listed 150W/200W/240W/300W LED Power Adjustable Flood/Area Light Fixture Dimmable
Specifications
Specifications
| Part Number# | LFX-XL-150-300W-50K |
|---|---|
| Type of Area: | Landscape & Flood, Pole / Street / Parking Lot, Road & Street |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 42,150 - 44,000 |
| Wattage: | 300 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 320W HID Equivalent, 400W HID Equivalent, Dimmable, DLC Approved, IP65 / IP66 / IP67, UL Listed |
| CRI: | 82 |
| Dimensions: | 3.75" D x 12.63" x 19.63" |
| Width: | 12.63" |
| Height: | 19.63" |
| Dimmable: | Yes |
| Product Warranty: | 7 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 13.2 lbs |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
Westgate LFX-XL-150-300W DLC Listed 150W/200W/240W/300W LED Power Adjustable Flood/Area Light Fixture Dimmable
ShineRetrofits Input:
This LFX-XL Architectural Series offers premium quality LED outdoor lighting using solid state lighting technology. The maintenance-free fixture delivers 145 lumens per watt and an excellent replacement to traditional HID flood lights and wall packs with switch on the bottom of the fixture for selectable wattage 150W, 200W, 240W, and 300W. Rated with 70,000 hour life with 7-year warranty, great for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
Features:
• DLC Premium & LED High-Lumen Flood lights
• Solid State Lighting Technology for Long Life
• No Maintenance Needed and High-Efficiency
• 70,000 Hours Rated Life
• 7-Year Warranty
• Optic Lens Type: III
• Multi-Power - The Switch is On the Bottom of the Fixture
Lighting:
• Dimming: 0~10V dimmable
• Optic Lens Type: III
• Cord Type: 6’ SJTW 18/3 AWG cable
• Total Lumens: 44000LM Max.
• Color Temperature: 3000K/ 4000K/ 5000K
• Color Rendering Index: ≥ 82
• Beam Angle: 120°X 90°
Electrical:
• Voltage: 120~277V AC/50~60 Hz
• Wattage: 150/ 200/ 240/ 300W
• Power Factor: >0.9
• Efficacy: 135 LPW
