Westgate LFX-SM Series DLC Listed X-Gen Series 10W/15W/20W/30W Power Adjustable Small Flood Light Dimmable
Westgate LFX-SM Series DLC Listed X-Gen Series 10W/15W/20W/30W Power Adjustable Small Flood Light Dimmable
Specifications
Specifications
| Part Number# | LFX-SM-10-30W |
|---|---|
| Type of Area: | Gym & Sports, Landscape & Flood, Large Retail & Open Areas, Pole / Street / Parking Lot, Sign & Billboards, Wall Mount & Building Exteriors, Road & Street |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,210 - 4,080 |
| Ballast Start Type: | Instant Start |
| Certifications | Dimmable, DLC Approved, IP65 / IP66 / IP67, UL Listed |
| CRI: | ≥ 82 |
| Width: | 6.88" - 8.75" |
| Height: | 8.5" - 10" |
| Dimmable: | Yes |
| Product Warranty: | 7 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 2.43 lbs |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

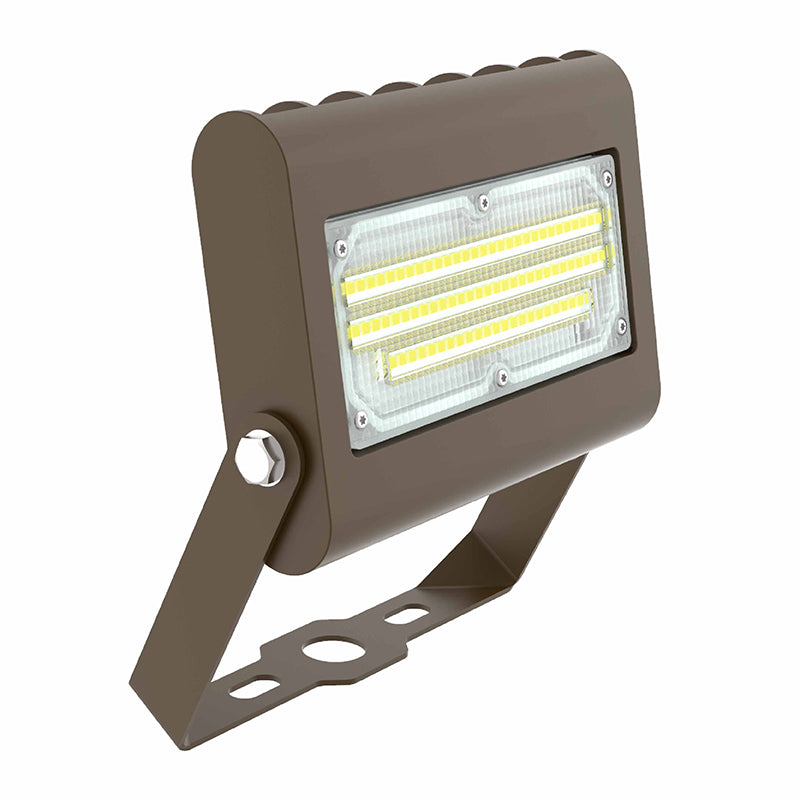

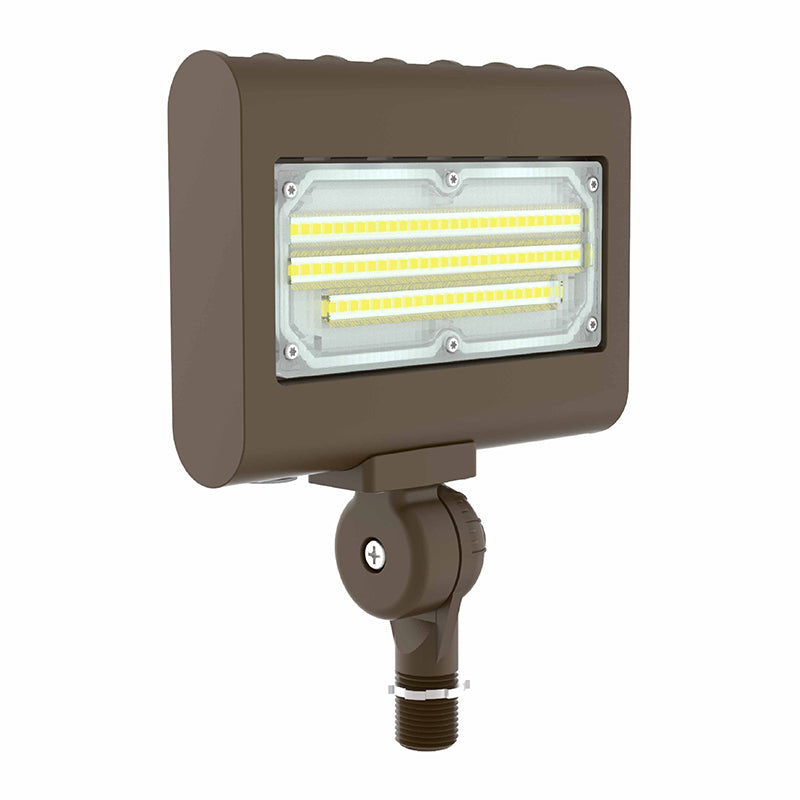

This LFX-SM Series LED Small Flood Light is highly efficient, no maintenance fixture with longer life than HID lighting fixtures. Select from mounting options available: 90° adjustable 1/2" Knuckle Mount or 270° Adjustable Yoke Mount. Delivers maximum of 4080 lumens with area light at 40x50 sqft suitable for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
Features:
• DLC Premium & LED High-Lumen Flood lights
• Solid State Lighting Technology for Long Life
• No Maintenance Needed and High-Efficiency
• 70,000 Hours Rated Life
• 7-Year Warranty
• Optic Lens Type: III
• Multi-Power - The Switch is on the Bottom of the Fixture
Lighting:
• Dimming: 0~10V Dimmable
• Optic Lens Type: III
• Cord type: 13” #18 AWG stranded wires
• Total Lumens: 4080LM Max
• Color Temperature: 3000K/ 4000K/ 5000K
• Color Rendering Index: ≥ 82
• Beam Angle: 120°X 90°
Electrical:
• Voltage: 120~277V AC/50~60 Hz
• Wattage: Selectable Wattages (10W/ 15W/ 20W/ 30W)
• Power Factor: >0.9
• Efficacy: 130 LPW
• Color Selectable
