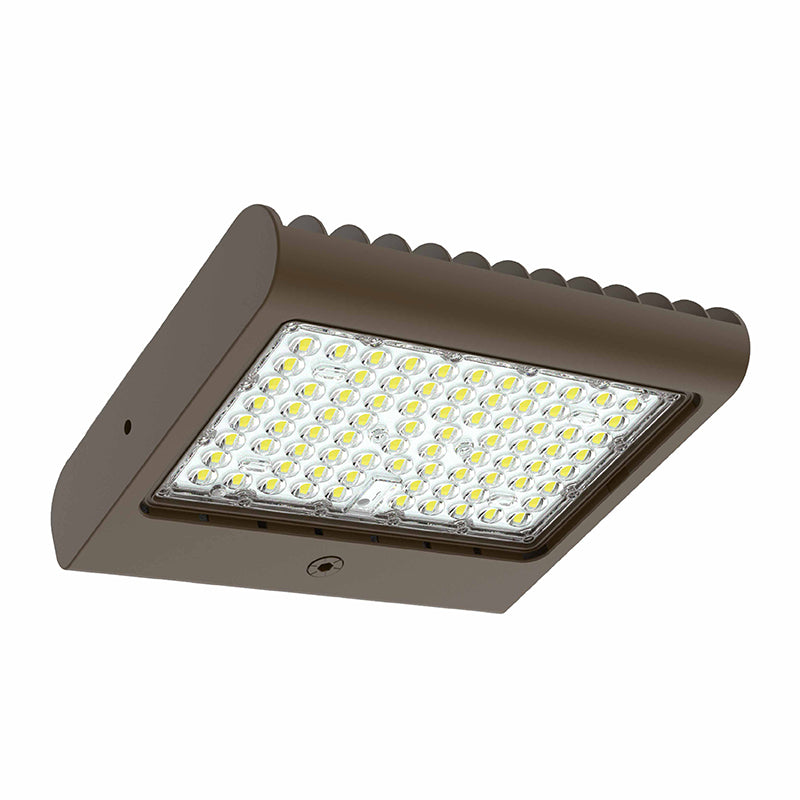

Westgate LFX-LG-80-150W-MCTP-480V-SC LED Flood/Area Light Power & CCT Adjustable 480V
Westgate LFX-LG-80-150W-MCTP-480V-SC LED Flood/Area Light Power & CCT Adjustable 480V
Specifications
Specifications
| Part Number# | LFX-LG-80-150W-MCTP-480V-SC |
|---|---|
| Type of Area: | Landscape & Flood, Pole / Street / Parking Lot |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 8500 - 21400 |
| Ballast Start Type: | Instant Start |
| Certifications | 150W HID Equivalent, 175W HID Equivalent, 250W HID Equivalent, 320W HID Equivalent, Dimmable, DLC Approved, IP65 / IP66 / IP67, UL Listed |
| CRI: | 82 |
| Dimensions: | 11”(H) x 12-5/8”(W) x 3-3/8”(D) |
| Width: | 12-5/8” |
| Length: | 3-3/8” |
| Height: | 11”(H) |
| Dimmable: | Yes |
| Product Warranty: | 7 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 480V |
| Weight Each: | 9 lbs |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
Westgate LFX-LG-50-150W-50K-480V DLC Listed 50W/80W/100W/150W LED Power Adjustable Flood/Area Light Fixture Dimmable 5000K
ShineRetrofits Input:
This LFX-LG Architectural Series 480V offers premium quality LED outdoor lighting using solid state lighting technology. The maintenance-free fixture delivers 140 lumens per watt and an excellent replacement to traditional HID flood lights and wall packs with switch on the bottom of the fixture for selectable wattage 50W, 80W, 100W, and 150W. Rated with 70,000 hour life with 7-year warranty, great for general site lighting, alleys, loading docks, doorway, pathway and parking areas.
Features:
• DLC Premium & LED High-Lumen Flood lights
• Solid State Lighting Technology for Long Life
• No Maintenance Needed and High-Efficiency
• 70,000 Hours Rated Life
• 7-Year Warranty
• Optic Lens Type: III
• Multi-Power - The Switch is On the Bottom of the Fixture
Lighting:
• Dimming: 0~10V dimmable
• Optic Lens Type: III
• Cord Type: 6’ SJTW 18/3 AWG cable
• Total Lumens: 21400LM Max.
• Color Temperature: 3000K/ 4000K/ 5000K
• Color Rendering Index: ≥ 82
• Beam Angle: 120°X 90°
Electrical:
• Voltage: 480V AC/50~60 Hz
• Wattage: 50/ 80/ 100/ 150W
• Power Factor: >0.9
• Efficacy: 145 LPW
