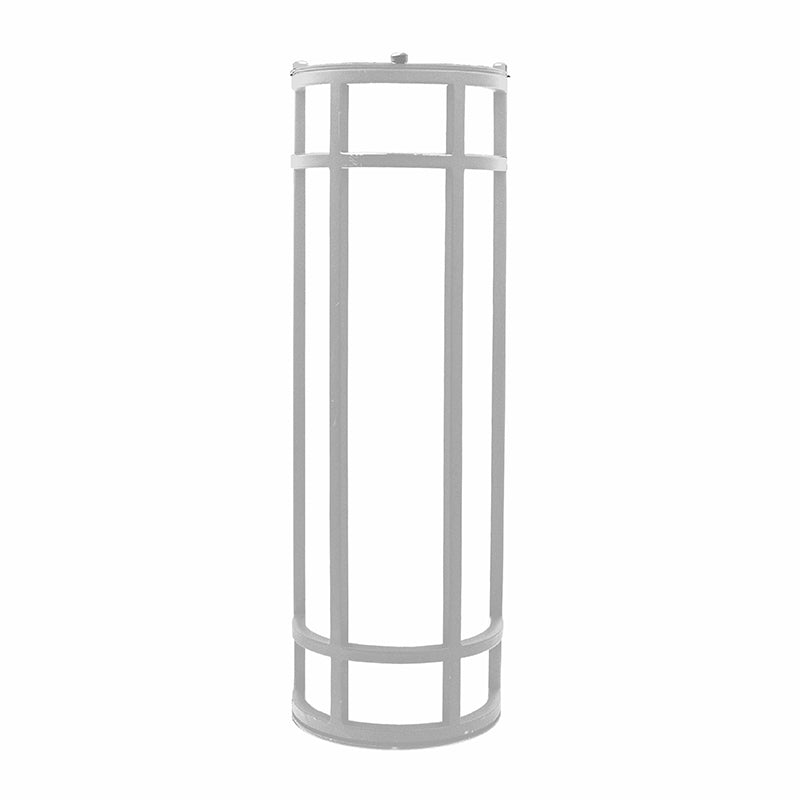

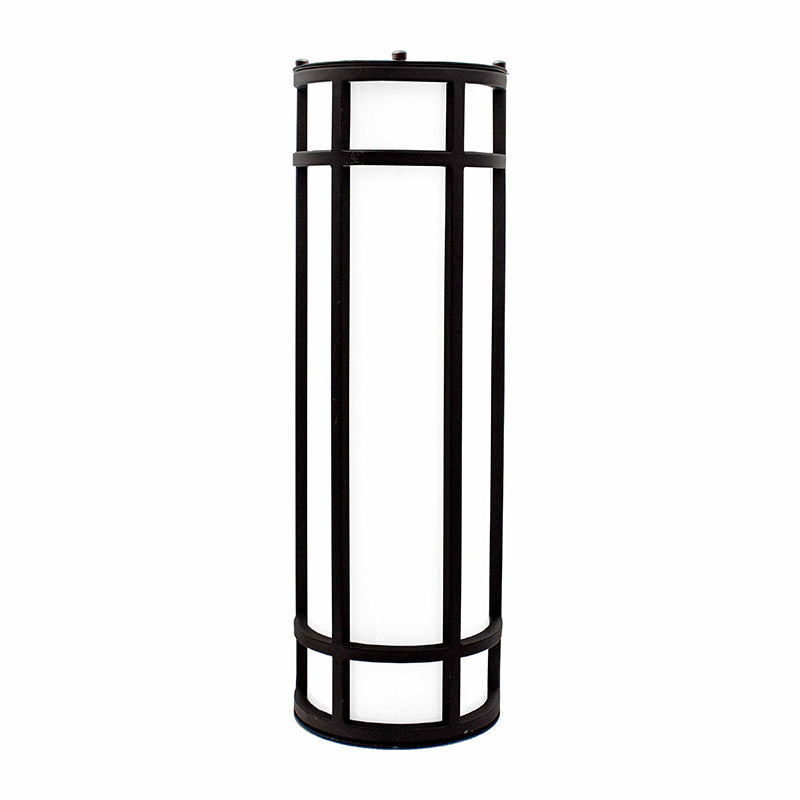

Westgate LDSL Series 20-Watt 18-Inch LED Decorative Outdoor Wall Sconce Fixture Dimmable
Westgate LDSL Series 20-Watt 18-Inch LED Decorative Outdoor Wall Sconce Fixture Dimmable
Specifications
Specifications
| Part Number# | LDSL-MCT-D |
|---|---|
| Type of Area: | Home & Architectural, Stairwell, Hotels, Hospitals, Hospitality |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,500 |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | Dimmable, ETL Listed, IP65 / IP66 / IP67 |
| CRI: | ≥ 80 |
| Dimensions: | 4" x 6" x 8.5" |
| Width: | 6" |
| Length: | 4" |
| Height: | 8.5" |
| Dimmable: | Yes |
| Product Warranty: | 7 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This LDSL Series 20-watt 18-inch LED Decorative Outdoor Wall Sconce combines modern design with exceptional functionality. Constructed with durable die-cast aluminum housing and a high-transmission frosted plastic lens, it delivers uniform light distribution with selectable color temperatures (3000K, 4000K, 5000K). This energy-efficient fixture provides 1800 lumens at 75 lumens per watt, supports dual dimming functions (Triac at 120V and 0-10V at 120-277V), and is rated for wet locations with an IP65 rating. With a 70,000-hour lifespan and a 7-year warranty, it’s a reliable choice for enhancing outdoor spaces.
Technical Specifications:
• Die-cast Aluminium Housing with Powder Coat Finish
• Full distribution of LED luminaries
• Multi CCT: Selectable CCTs Switch on the LED Board
• Dimming: (Dual Function) Triac Dimmable at 120V & 0-10V Dimming at 120-277V
• Lens: High-transmission frosted Plastic lens with Excellent Distribution and Uniformity
• Lumens: 1800LM
• Wattage: 20W
• Voltage: 120V
• Efficacy: 75LPW
• Beam Angle: 120°
• Power Factor: >0.90
• Operating Temp: -4°F to 113°F
• Color Rendering Index: CRI ≥ 80
• Color Temp: 3000K/4000K/5000K
• Lifespan: 70,000 hours
• 7-year warranty
• IP Rating: IP65, Wet Locations
