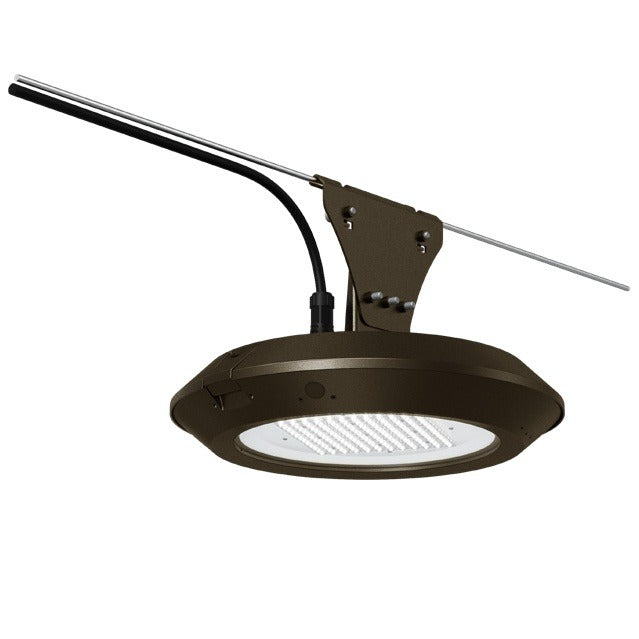

Westgate GPX-18-60W-MCTP-CAT Multi-Power and Multi-Color LED Catenary Outdoor Disk Light
Westgate GPX-18-60W-MCTP-CAT Multi-Power and Multi-Color LED Catenary Outdoor Disk Light
Specifications
Specifications
| Part Number# | GPX-18-60W-MCTP-CAT |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Industrial & Warehouse, Commercial Offices, Education, Hospitality, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 9,000 |
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | Dimmable, ETL Listed, IP65 / IP66 / IP67 |
| CRI: | >70 |
| Dimensions: | 15.75" x 10.33" |
| Width: | 15.75" |
| Height: | 10.33" |
| Dimmable: | Yes |
| Product Warranty: | 7 Year |
| Voltage: | 100V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate's GPX LED Catenary Outdoor Disk Light is designed for various applications, from airports and auto dealerships to public venues and retail stores. This fixture boasts an aluminum housing with outdoor powder coating for durability and offers multiple wattage options (18W/30W/45W/60W) with a high efficacy of 150 LM/W. It provides versatile lighting solutions with selectable color temperatures (3000K/4000K/5000K) and 0-10V dimming capability. It also features a long lifespan of 70,000 hours and a 7-year warranty, ensuring reliable performance in various outdoor environments.
Features:
• Aluminum Housing, Outdoor Powder Coated
• Voltage: 100-277V AC 50/60Hz
• Wattage: 18W/30W/45W/60W
• Power Factor: 0.95
• Efficacy: 150LM/W
• Multi CCT and Power: Selectable Switch Inside Of The Fixture
• Dimmable: 0~10V Dimming
• LED: SMD 3030
• Total Lumens: 9000LM Max.
• Color Temperature: 3000K/4000K/5000K
• Color Rendering index: >70
• Beam Angle: Type V (150° X 150°)
• Lifespan: 70000 Hrs.
• 7-Year Warranty
