Westgate EVC-A-48A-MP-BT 48A Selectable Power Level 2 EV Charger - Westgate App Enabled
Westgate EVC-A-48A-MP-BT 48A Selectable Power Level 2 EV Charger - Westgate App Enabled
Specifications
Specifications
| Part Number# | EVC-A-48A-MP-BT |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Large Retail & Open Areas, Parking Garage, Retail |
| Ballast Start Type: | Instant Start |
| Certifications | 2 Year Warranty, ETL Listed, UL Listed |
| Dimmable: | No |
| Product Warranty: | 2 Year |
| Manufacturer: | Westgate |
Details
Details
ShineRetrofits Input:

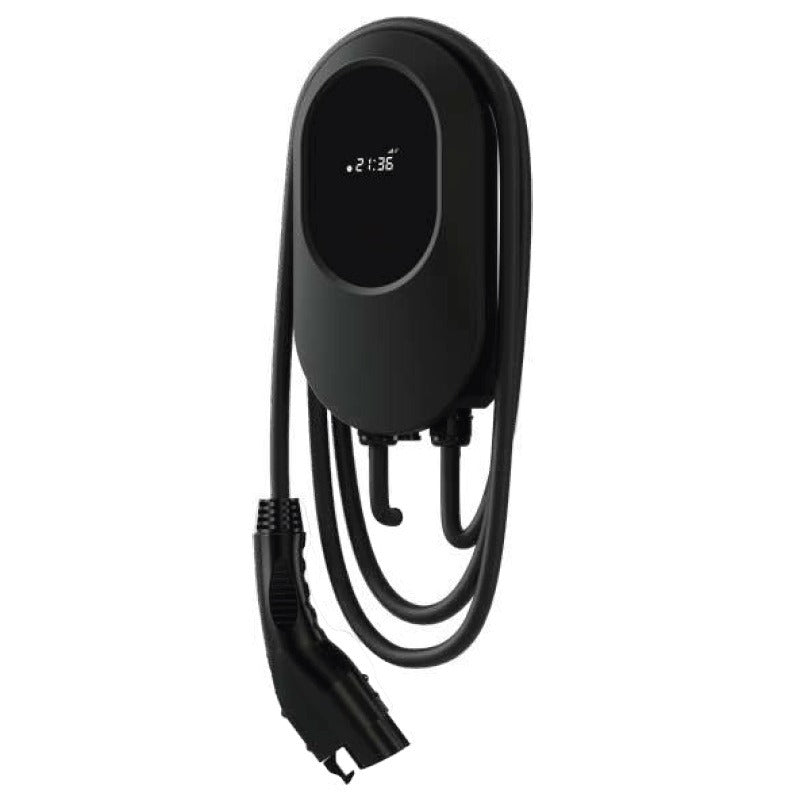

Westgate's 48A Level 2 EV charger with selectable power is designed for indoor and outdoor use. It operates at 208-240V, providing 11.5KW of power, and includes multiple protection functions such as overvoltage, overcurrent, and surge protection. The charger features WiFi and Bluetooth connectivity, enabling control through the Westgate app, and comes with a 25-foot charging cable with an SAE J1772 (Type 1) connector. Certified under UL standards and built with durable, UV-resistant PC housing, it ensures reliable performance in various environments.
Input Basic Characteristics:
Input Voltage:208-240Vac (L1/L2/PE)
Input Power: 11.5KW/48A
Mains Frequency: 60Hz
Protection Function:
Overvoltage Protection
Undervoltage Protection
Overcurrent Protection
Leakage Protection
Grounding Protection
Over Temperature Protection
Lightning/Surge Protection
Short Circuit Protection
Welding Protection
Communication Mode:
WiFi/Bluetooth - TuYa APP
RFID
Machine Parameters:
Startup Method - APP Control
Cooling Method - Natural Air Cooling
Charging Gun - SAE J1772（TYPE 1)
Cable Length - 25ft
Installation Method - Wall Hanging
Installation Location - Indoor/Outdoor
Housing Material - PC with Anti-UV Treatment
IP＆IK - TYPE 3R/IK08
Certification - ETL
Standard Compliance - UL 2594, UL2231-1, UL2231-2
