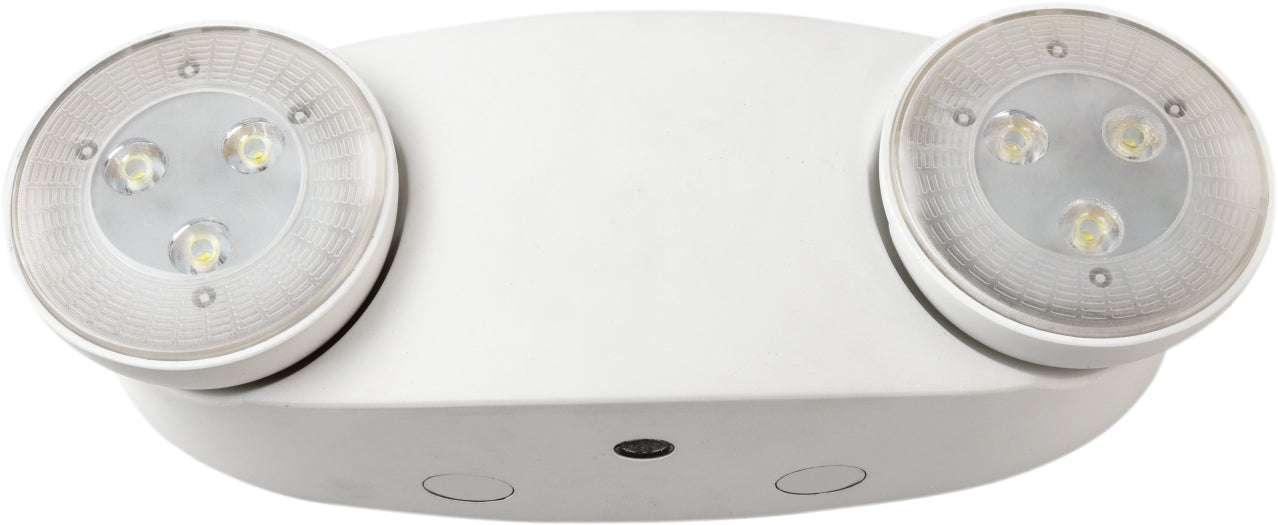

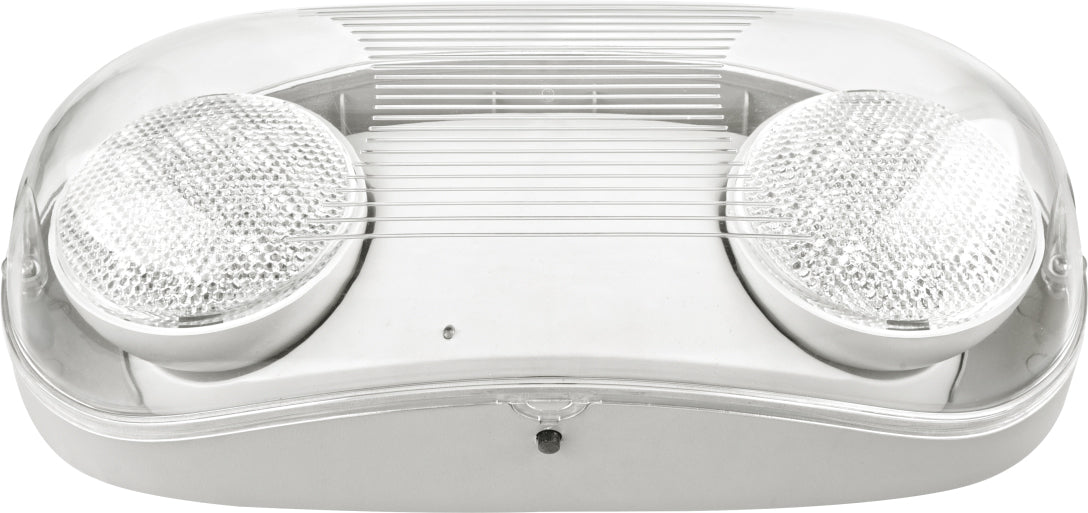

Westgate EL-WP 2-Head LED Emergency Light
Westgate EL-WP 2-Head LED Emergency Light
-
Specsheet:
Specifications
Specifications
| Part Number# | EL-WP |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Industrial & Warehouse, Office & Small Retail, Schools, Hotels, Hospitals, Commercial Offices, Factory / Industrial, Retail |
| Lumen Output: | 454 - 650 |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty, UL Listed |
| Dimensions: | 4.2" x 12.25" x 5.25" D |
| Width: | 12.25" |
| Height: | 4.2" |
| Dimmable: | No |
| Product Warranty: | 3 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This EL Series Exit and Emergency Light is modern and designed with two fully adjustable 3-watt LED lamp or 6-watt LED lamp heads. It features a built-in 6V 4Ah Lead Acid Battery (High Output Model) and 3.6V 2000mAh Nickel Cadmium Battery (Wet Location Model) and runs at 90 minutes minimum during emergency operation. Easy to install and applicable for residential buildings and commercial locations.
Features:
• Innovative, Easy Installation in Minutes
• Injection-Molded Thermoplastic ABS Housing, UL 94V-0 Flame Rating.
• 3-Year Warranty
• 2x3pcs Super bright LED lamp heads for emergency mode
• High Impact Thermo-Plastic Emergency Light with Polycarbonate Cover Available in Wet location with Seamless Silicon Gasket
Technical Specifications
Electrical:
• Voltage: 120-277V / 50-60Hz
• Power Factor: >0.90
• Wattage: 3W Per Head / 6 Watt Per Head
• Efficacy: 76-108 LPW
Mechanical:
• Mounting: wall mounting with KO’s in Back Plate
• Universal J-box Mounting Pattern
• Maximum 24 hours for Full Recharge Time
• Test Switch and Charge Indicator
• Operating temperature: 68-122°F
• Rated life: 90-minute rated
• White Finish
• IP 20, Indoor Use Only
Lighting:
• Two fully adjustable 3-watt LED lamp heads for safe egress
• 2X12 pcs Super Bright 2835 0.5W LED Lamp Heads for Emergency Mode, Provide More than 400LM Output
• Improved Beam Control for Increased Spacing and
• Illumination
• Total Lumens: 454 - 650LM
• Color Temperatures: 4200K or 6151K
• Built-in 6V 4Ah Lead Acid battery for a minimum of 90 minutes of Emergency Operation
• Built-in 3.6V 2000mAh Nickel Cadmium Battery for a Minimum of 90 Minutes of Emergency Operation
Applications:
• Emergency lighting is designed to provide sufficient illumination during a mains power failure. Modern emergency lighting is installed in virtually every commercial and high occupancy residential building. Most building codes require that they be installed in older buildings as well.
