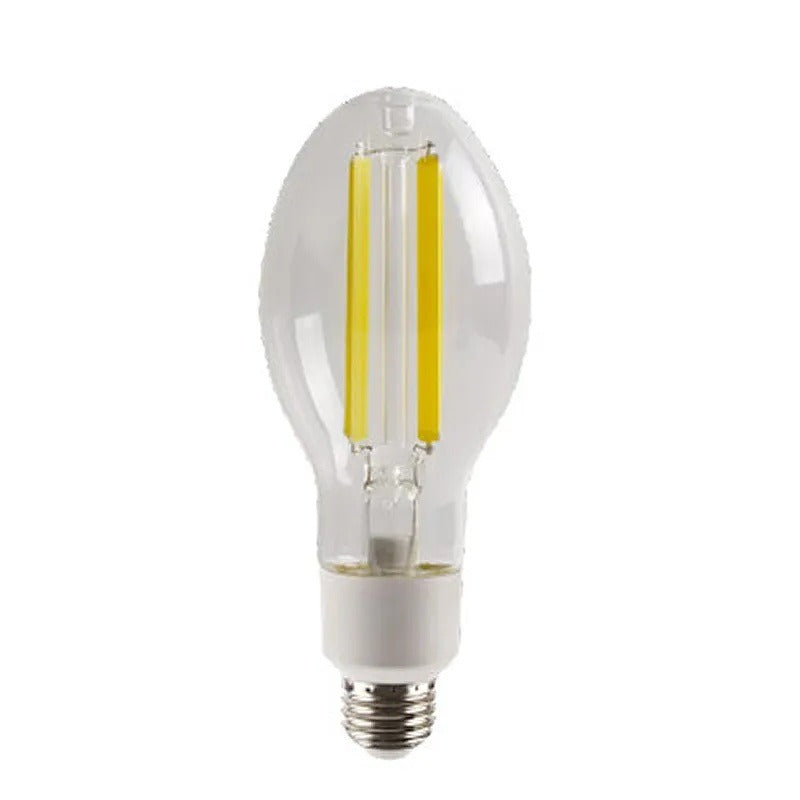

Westgate ED23-20W 20-Watt Glass Lens HID-Style LED Filament Lamp Replaces 75W HID
Westgate ED23-20W 20-Watt Glass Lens HID-Style LED Filament Lamp Replaces 75W HID
Specifications
Specifications
| Part Number# | ED23-20W |
|---|---|
| Type of Area: | Industrial & Warehouse, Large Retail & Open Areas, Parking Garage, Pole / Street / Parking Lot |
| Lumen Output: | 3,600 |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 70W HID Equivalent, DLC Approved, ETL Listed |
| Width: | 2.94" |
| Height: | 7.13" - 7.63" |
| Dimmable: | No |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Westgate's ED23 20-Watt Glass Lens HID-Style LED Filament Lamp offers a versatile lighting solution with its 360° omnidirectional illumination. Perfect for both enclosed and open fixtures, it provides an energy-efficient glow suitable for a variety of indoor and outdoor applications. With a wattage of 20W and voltage of 120-277V, it produces 3,600 lumen output, effectively replacing 75W HID lamps. Its applications range from area lights and post tops to wall packs, bollards, lanterns, and high/low bays, making it an ideal choice for enhancing different spaces with consistent, aesthetic lighting.
Features:
• Wattage: 20W
• Voltage: 120-277V
• Color Temperature: 4000K, 5000K
• Base: E26 Medium, EX39 Mogul
• Lumens Output (LED): 3600LM
• Equivalent HID Wattage: 75W HID
Applications:
• Area Lights
• Post Tops
• Wall Packs
• Bollards
• Lanterns
• High/Low Bay
