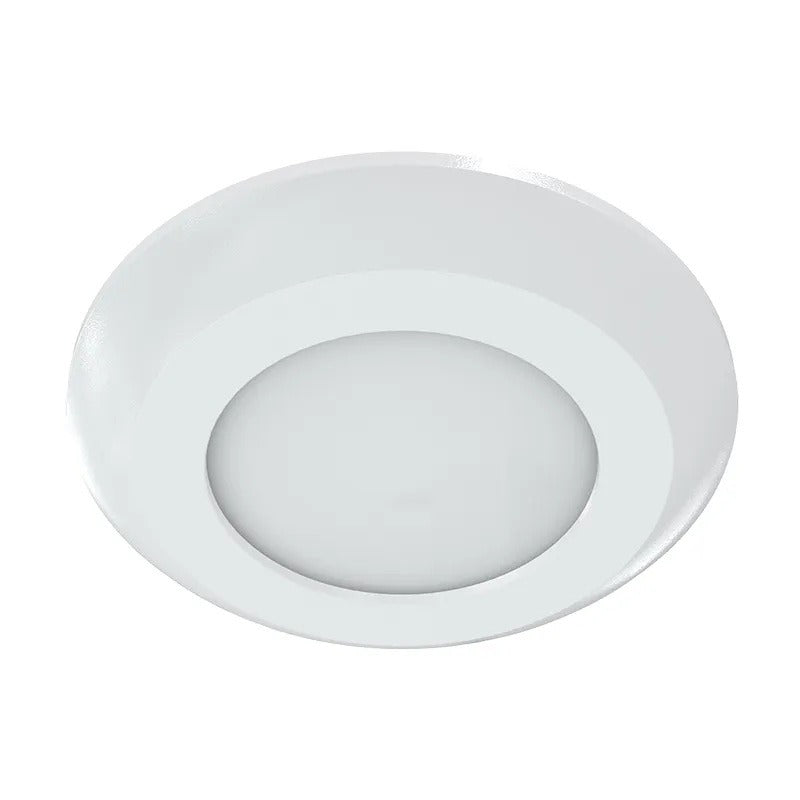

Westgate DLSF Series Color Selectable LED Architectural Flat Surface Disk Light with TRIAC Dimming
Westgate DLSF Series Color Selectable LED Architectural Flat Surface Disk Light with TRIAC Dimming
Specifications
Specifications
| Part Number# | DLSF |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Commercial Offices |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,080 - 1,350 |
| Wattage: | 14 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, ETL Listed |
| CRI: | 90 |
| Dimensions: | 6" Dia. x 7" |
| Width: | 7" |
| Length: | 6" Dia. |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Voltage: | 120V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate's Flat Surface Disk Light is designed to offer a flexible, efficient lighting solution for both retrofit and new construction projects. Ideal for a variety of applications, these lights are perfect for use in closets, storage areas, attics, corridors, and other spaces that require discreet yet effective illumination. Whether for residential or commercial environments, disk lights are an excellent choice for general lighting, providing a sleek, modern design that blends seamlessly with ceilings. Their compact size and easy installation make them a go-to solution for lighting upgrades or new builds, ensuring versatility and energy efficiency in any setting.
Features:
• Voltage: 120V AC
• Power Factor: >0.90
• Wattage: 12W/14W
• Efficacy: 90 LPW
• White Finish
• Spun Steel, Powder-Coated
• Fits on 4" Octagonal (4O) or 3" Octagonal (3O) Electrical Boxes
• Maximum Ambient Temperature: 104°F
• Suitable for Damp Location
• 5-Year Warranty
• Lens: White Translucent Acrylic
• MCT: The Switch is on the LED Board Under the Lens
• LED: Unique DOB (Driver on Board) LED Board Enclosed in Clear PC Cover for Better Damp Location Performance
• Dimming: TRIAC Dimming (Using Standard TRIAC LED Dimmers)
• Total Lumens: 1080LM-1350LM
• Color Temperatures: 2700K/3000K/3500K/4000K/5000K
• Color Rendering Index: CRI ≥ 90
• Rated life: 50,000 hrs.
Applications:
• Closets
• Storage Areas
• Attics
• Corridors
• Residential and Commercial
