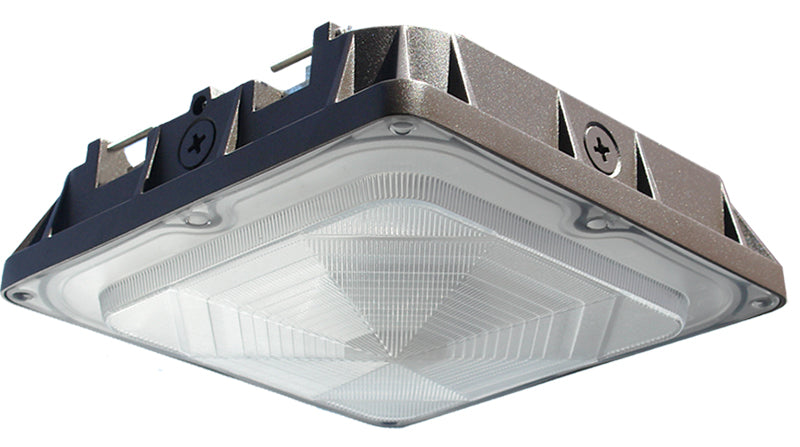

Westgate CDLX-LG-30-80W DLC Listed LED High Lumen Canopy Light Fixture Dimmable with Adjustable Power
Westgate CDLX-LG-30-80W DLC Listed LED High Lumen Canopy Light Fixture Dimmable with Adjustable Power
Specifications
Specifications
| Part Number# | CDLX-LG-30-80W |
|---|---|
| Type of Area: | Apartment Buildings, Gas Station & Convenience Store, Industrial & Warehouse, Office & Small Retail, Parking Garage |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 4,000 - 9,650 |
| Wattage: | 80 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | Dimmable, DLC Approved, IP65 / IP66 / IP67, UL Listed |
| CRI: | 80 |
| Dimensions: | 14" x 14" x 4" |
| Width: | 14" |
| Length: | 14" |
| Height: | 4" |
| Dimmable: | Yes |
| Product Warranty: | 7 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This Canopy Light Fixture is perfect for outdoors with high-lumen output and adjustable power (30W/ 40W/ 60W/ 80W) features. Designed for 9-16 FT mounting height with 150° beam angle suitable for indoor parking lots, commercial buildings, schools, warehouses, retail centers, apartment complexes. Sturdy and long lasting with 70,000 hour rated life, DLC listing, and 7-year warranty.
Lighting:
• Dimming: 0~10V dimmable
• LED type/ Brand: SMD 3030/ Lumileds LEDs
• Total lumens: 9650LM Max.
• Color temperature: 3000K/ 4000K/ 5000K
• Color rendering index: >80
• Beam angle: 150°
• Lifespan: 70000 Hrs
Electrical:
• Wattage: 30W/ 40W/ 60W/ 80W
• Input Current: 0.6A MAX
• Input Voltage: 120-277VAC 50/60Hz
• Power factor: >0.90
• LPW: 120
Mechanical:
• Die-cast aluminum with bronze
• Four 1/2” threaded hubs located on four sides of the housing
• Prismatic polycarbonate lens
• Operating temperature: -4°F ~ 104°F
• IP rating: IP65, Wet Locations
