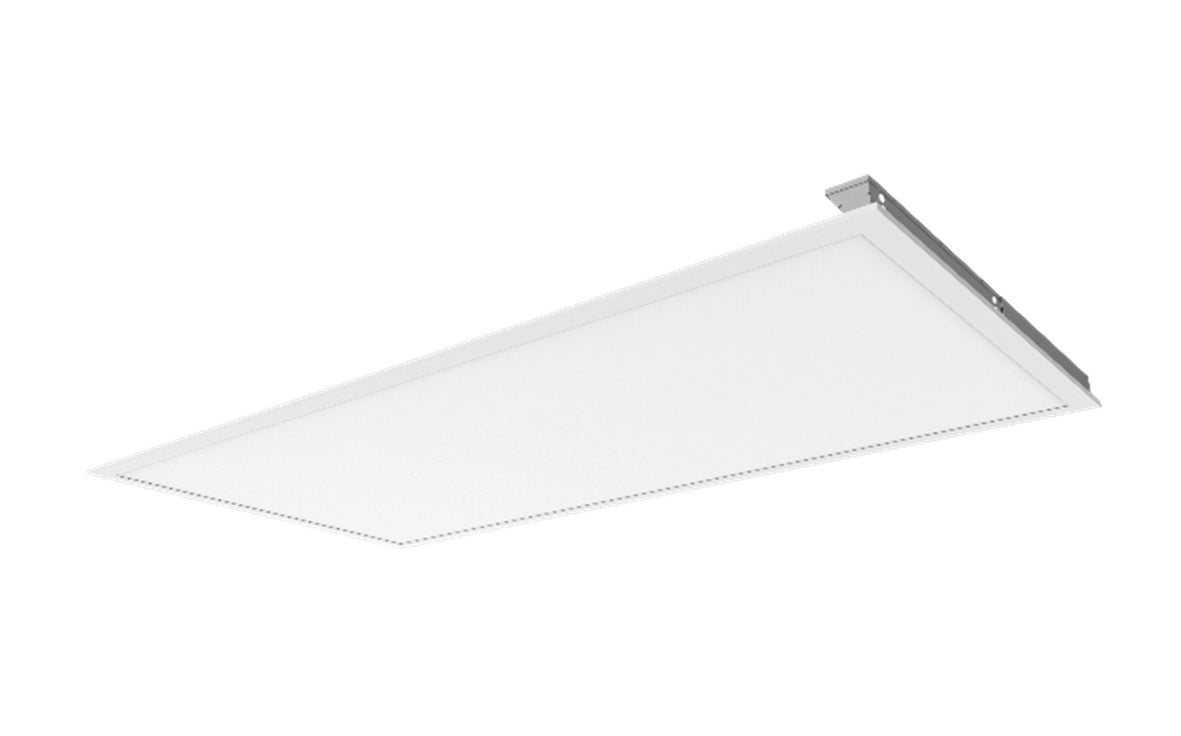

Venture Lighting PB224-45-UNV-C&W Select-Pro 2x4 LED Back-lit Low-Profile Panel Light Fixture Dimmable
Venture Lighting PB224-45-UNV-C&W Select-Pro 2x4 LED Back-lit Low-Profile Panel Light Fixture Dimmable
Specifications
Specifications
| Part Number# | PB224-45-UNV-C&W |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hotels, Hospitals, Commercial Offices, Education, Hospitality, Banking |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 3,400 - 5,300 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, ETL Listed, Title 24 Compliant |
| CRI: | >80 |
| Dimensions: | 47.76" x 23.76" x 1.66" |
| Width: | 23.76" |
| Length: | 47.76" |
| Height: | 1.66" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -13 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 9.45 lbs |
| Manufacturer: | Venture Lighting |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
Venture Lighting's Select-Pro Back-lit LED Panel serves as an efficient solution to upgrade existing fluorescent fixtures while offering greater versatility compared to other LED panels. It is capable of changing to three different CCT settings: 3500K, 4000K, and 5000K. Additionally, it offers three different wattage settings, allowing for adjustable light levels. With the Select-Pro LED Panel, businesses can achieve an 88% reduction in stocking inventory, leading to cost savings and improved efficiency.
Features:
• The housing features a metal back plate and metal driver with 7 knockout integrated junction box
• Each LED has an integrated wide distribution optic designed to provide even illumination without producing visible hot spots
• The driver comes prewired with one black input lead (hot), one white input lead (neutral) and one green ground lead
• 0-10V DC continuous dimming capability is standard
• The panel can be mounted in a recessed ceiling, surface mounted (optional), or suspended (optional)
Electrical Characteristics:
• Input 120-277V, 60Hz, 0.30A Max
• Power Factor > 90%
• THD < 20%
• Dimming 0-10V DC continuous dimming capability
Regulatory Qualifications:
• cETLus Listed; DLC® Qualified
• Type IC, inherently protected luminaire
• Dry and damp location rated (IP20)
