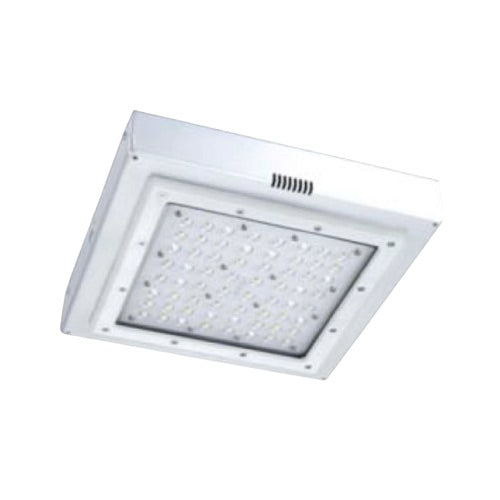

Venture Lighting CP71667 23W LED Surface Mount Canopy Light 5000K – Replaces 70W HID
Venture Lighting CP71667 23W LED Surface Mount Canopy Light 5000K – Replaces 70W HID
Specifications
Specifications
| Part Number# | CP71667 |
|---|---|
| Type of Area: | Retail, Parking Garage, Gas Station & Convenience Store |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 200,000 Hours |
| Lumen Output: | 2,670 |
| Wattage: | 23 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | Dimmable, ETL Listed, Title 24 Compliant |
| CRI: | 70+ |
| Dimensions: | 12" x 12" x 2.4" |
| Width: | 12" |
| Length: | 12" |
| Height: | 2.4" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.85 lbs |
| Manufacturer: | Venture Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Venture Lighting CP71667 LED Surface Mount Canopy Light is a low-profile, durable solution designed to replace 70W HID fixtures in demanding outdoor environments. Delivering bright 5000K illumination, this 23-watt fixture features a heavy-duty aluminum housing with a white powder-coat finish for long-term performance. UV-stabilized acrylic optics provide precise light distribution, while a sealed silicone gasket ensures wet-location protection. Universal surface or pendant mounting allows easy retrofit installation for retail canopies and high-traffic areas.
Construction
The housing unit is constructed from heavy-duty aluminum. Fixtures are finished with a durable white polyester powder coating. To ensure weather-tight protection, each optical assembly is sealed with a silicone gasket. Each unit is ETL certified to withstand wet locations. Luminaires are rated for an ambient operating temperature range of -40°C to 40°C.
Optics
High-performance, UV stabilized acrylic optics are used to achieve precise photometric distributions.
Electrical
The Class II power supply has a range of 120-277V, 50/60 Hz. 0-10V dimming capability is standard. Each fixture has a built-in 10kV surge protector.
Mounting
The fixture is designed for universal surface and pendant mounting. IT IS THE CUSTOMER’S RESPONSIBILITY TO VERIFY THE AVAILABILITY OF ADEQUATE SPACE FOR INSTALLATION.
Warranty
For warranty information refer to: www.venturelighting.com/resources/warranties
