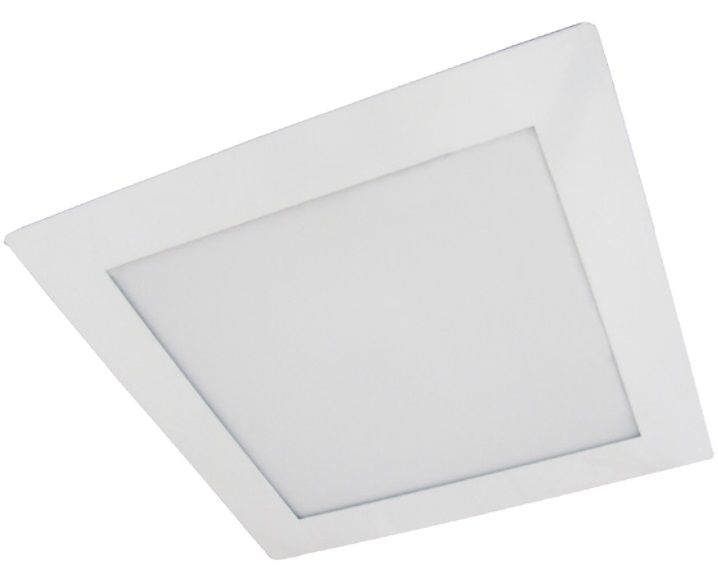

US LED GTR2-11EH-35-80-UNV2-S 23.5 Watt 1x1 Troffer Luminaire Light Fixture Soffit L-Grid2
US LED GTR2-11EH-35-80-UNV2-S 23.5 Watt 1x1 Troffer Luminaire Light Fixture Soffit L-Grid2
Specifications
Specifications
| Part Number# | GTR2-11EH-35-80-UNV2-S |
|---|---|
| Type of Area: | Office & Small Retail, Schools |
| Color Temp: | 3500K - Warm White |
| Lamp Life: | 200,000 Hours |
| Lumen Output: | 2,260 |
| Wattage: | 23 Watt |
| Certifications | 10 Year Warranty, DLC Approved, LM79 / LM80, UL Listed |
| CRI: | > 80 |
| Dimensions: | 12.10" x 12.10" x 3.20" |
| Width: | 12.10 |
| Length: | 12.10 |
| Height: | 3.20 |
| Product Warranty: | 10 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | USLED |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The GTR2 series is an attractive, low profile soffit solution delivering exceptional light quality. This 23.5 Watt LED light fixture is made for 1x1 openings for retrofits and new construction applications. It features a 5-year warranty, 200,000-hour lamp life, 2,260 lumens, and 3500K color temperature. Power Supply is mounted to the fixture and allows for a quick and easy installation.
Features:
• Phenomenal light output while only using 23.5 Watts
• Class 2 compliant design (low voltage, limited power)
• 010V Dimmable via Mark VII (requires the DCA10120 Dimming Controller)
• Battery backup option available
• L70 Calculated Life Expectancy of 200,000 hours
• L85 Calculated Life Expectancy of 129,000 hours
• Suitable for damp locations when installed in a covered ceiling mount location
• Ten year warranty
