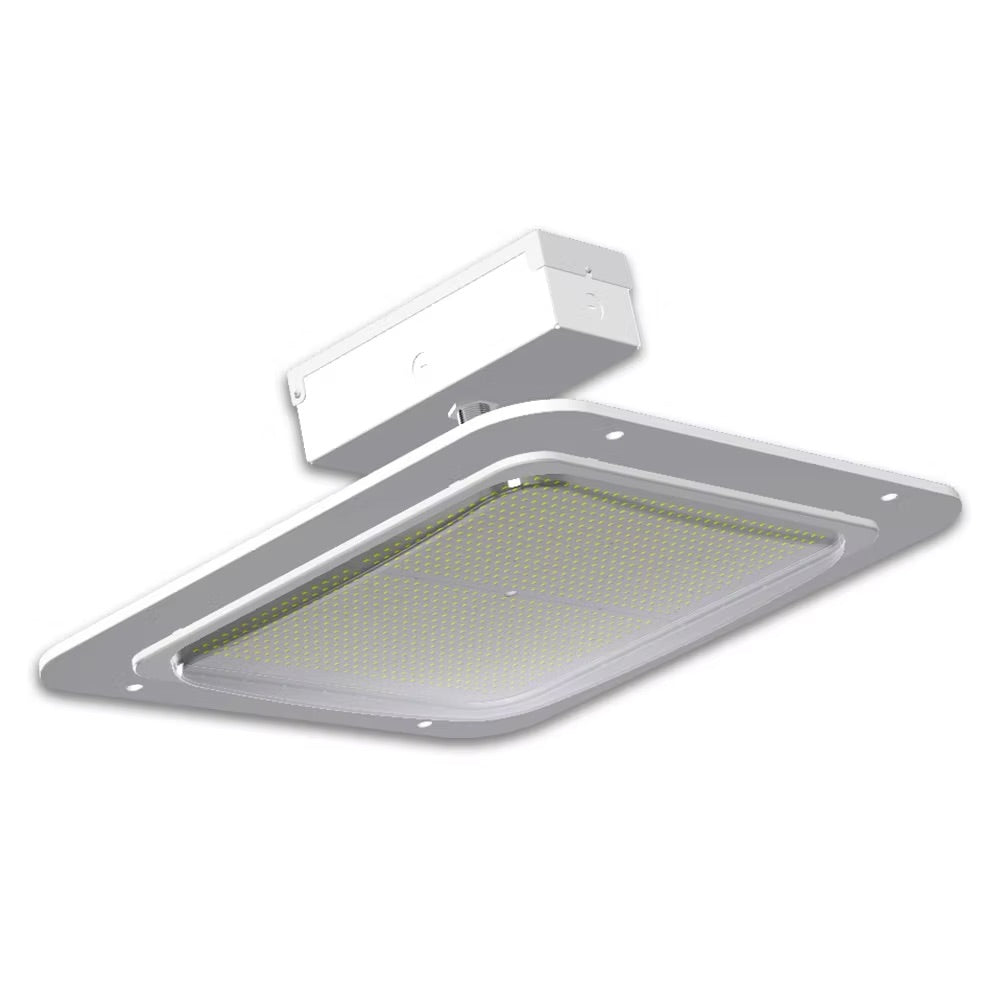

US LED GCL1 CanopyStar XL Outdoor LED Gas Station Canopy Light Fixture
US LED GCL1 CanopyStar XL Outdoor LED Gas Station Canopy Light Fixture
-
Specsheet:
Specifications
Specifications
| Part Number# | GCL1 |
|---|---|
| Type of Area: | Industrial & Warehouse, Commercial Offices, Factory / Industrial, Gas Station & Convenience Store |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 10,500 - 22,500 |
| Wattage: | 70W - 150W |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, CUL Listed, CSA, DLC Premium, IP65 / IP66 / IP67, LM79 / LM80, ROHS |
| CRI: | >80 |
| Dimensions: | 20.5" x 20.5" x 9.6" |
| Width: | 20.5" |
| Length: | 20.5" |
| Height: | 9.6" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -22 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 5.51 lbs |
| Manufacturer: | USLED |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The US LED CanopyStar XL (GCL1) is a low-profile, energy-efficient canopy light engineered for gas stations, drive-thrus, and outdoor commercial canopies. Its precision-molded lens delivers uniform, high-quality illumination, while the robust die-cast housing and IP65 rating ensure long-lasting performance. With 1–10V dimming, wide voltage compatibility, and a lifespan over 100,000 hours, it’s ideal for both new construction and retrofit installations.
Features:
• Low profile, energy-efficient LED canopy designed to accommodate a variety of applications and allow for easy installation.
• Premium photometric performance that results in sites with excellent uniformity.
• Modern aesthetics that easily integrate with any existing architecture.
• Easy installation and field serviceable.
• RoHS compliant; Mercury and UV free.
• 120-277VAC or 277-480VAC input 50/60 Hz.
• 1-10V dimming standard.
• Power factor: ≥0.90 and THD ≤20%.
• Operating temperature: -30°C to 45°C (-22°F to 113°F)
• Direct surface mount to the canopy or recessed J-Box with additional hardware.
• Robust die-cast aluminum housing protects integral components from harsh environments and optimizes thermal management.
• Housing is protected by a standard corrosion-resistant white powder coat finish.
• IP65-rated enclosure prevents intrusion from environmental elements that could degrade performance.
• UV-stabilized polycarbonate lens is heat-resistant and won’t degrade over time.
• Precision molded lens offers IES Type VS symmetrical distribution of uniform lighting.
• High-efficacy LEDs with 4000K, 5000K, and 5700K CCT (minimum 80 CRI).
• Lumen Maintenance: ≥100,000 hours (L70)
• Backed by US LED’s industry-leading Ten-Year Warranty.
