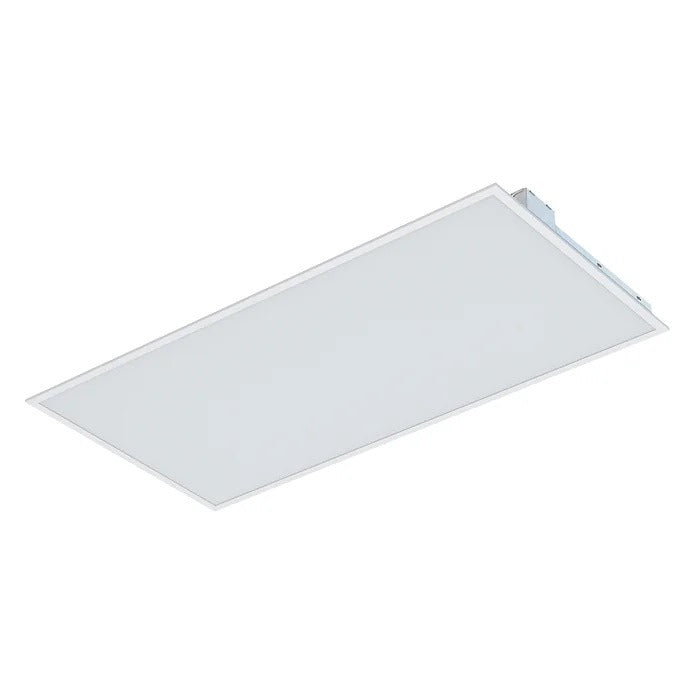

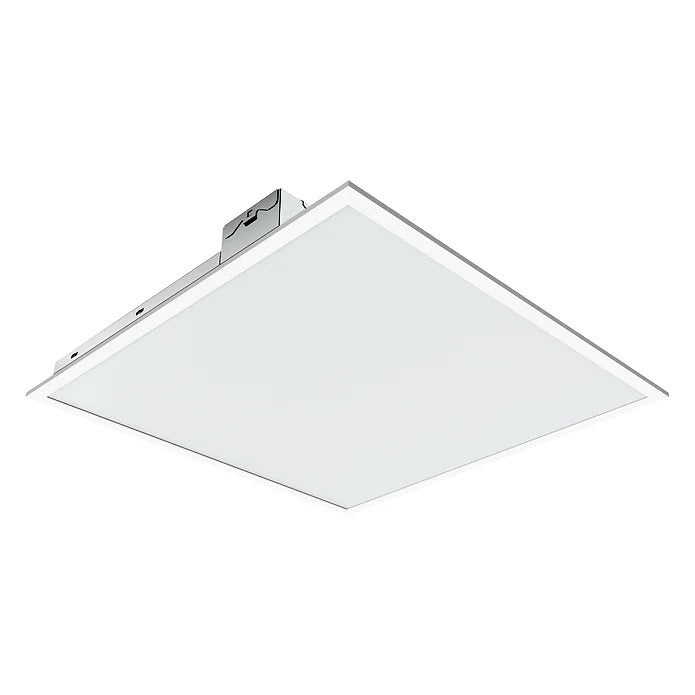

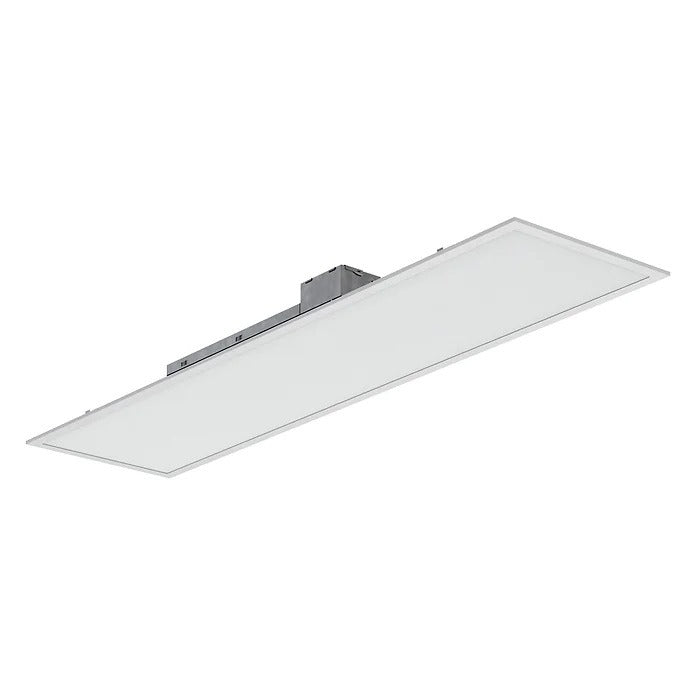

US LED FTR4 Series L-Grid ProMax Select Wattage and Color Selectable LED Recessed Back-Lit Flat Panel Dimmable
US LED FTR4 Series L-Grid ProMax Select Wattage and Color Selectable LED Recessed Back-Lit Flat Panel Dimmable
Specifications
Specifications
| Part Number# | FTR4 |
|---|---|
| Type of Area: | Industrial & Warehouse, Office & Small Retail, Schools, Hospitals, Commercial Offices, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | < 7,330 |
| Wattage: | 50 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Premium, NSF, ROHS, UL Listed |
| CRI: | ≥ 82 |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.12 - 8.3 lbs |
| Manufacturer: | USLED |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
US LED's FTR4 Series L-Grid ProMax Select LED Flat Panel is designed for superior performance and reliability in indoor lighting projects. With a thinner profile, larger junction box, and enhanced efficacy, this recessed back-lit panel ensures consistent, high-quality illumination. It features selectable wattage and color temperature, making it adaptable to various environments, while its extruded aluminum frame and frosted lens guarantee durability and glare-free lighting. Backed by a ten-year warranty, the L-Grid ProMax Select offers peace of mind and long-lasting performance for any application.
Features:
• Energy-efficient LED replacement for existing recessed fluorescent luminaires.
• Select wattage and correlated color temperature (CCT) via a switch in the field.
• Recessed or surface mounted with accessory.
• Extruded aluminum frame with steel backing prevents light leak and is built for superior strength and durability.
• Frosted white lens offers complete shielding and uniform light distribution that’s glare-free.
• Low-profile design provides flexibility for installing in low plenum areas (non-IC rated).
Uniform illumination with no visible bright spots or pixelation.
• Industry-leading LEDs with selectable CCT: 3000K, 3500K, 4000K,5000K, and 6500K (minimum 82 CRI).
• Lumen Maintenance: 165,000 hours (L70)
• Integral T-bar clips included for mounting in a recessed ceiling application.
• Flange kit accessory available (consult factory).
• Backed by US LED’s industry-leading Ten-Year Warranty.
