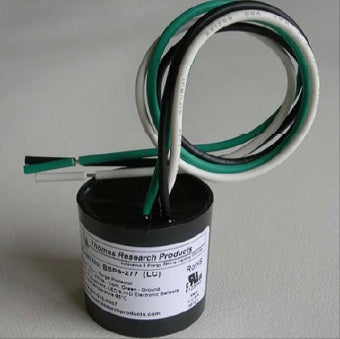

TRP BSP3-208-240 LC 208V 240V Volt Light Fixture Ballast LED Surge Protector 275V Clamping Voltage 190J Surge Rating 2mS
TRP BSP3-208-240 LC 208V 240V Volt Light Fixture Ballast LED Surge Protector 275V Clamping Voltage 190J Surge Rating 2mS
Specifications
Specifications
| Part Number# | 1121-1009-ND |
|---|---|
| Type of Area: | Gym & Sports, Hangers & Storage, Parking Garage |
| Ballast Start Type: | Instant Start |

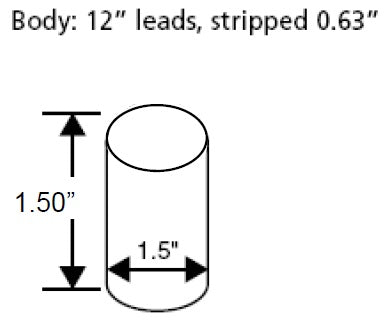

| Dimensions: | 1.5" x 1.5" with 12" leads |
| Dimmable: | No |
| Voltage: | 240V |
| Manufacturer: | TRP |
| Technology: | Surge Protectors |
Details
Details
ShineRetrofits Input:
TRP BSP3-208-240 LC 208V 240V Volt Light Fixture Ballast LED Surge Protector 275V Clamping Voltage 190J Surge Rating 2mS. The BSP3 series of products are designed to be used in conjunction with electronic fluorescent and HID ballasts and LED Drivers to provide an additional level of surge and transient protection in industrial and commercial applications.

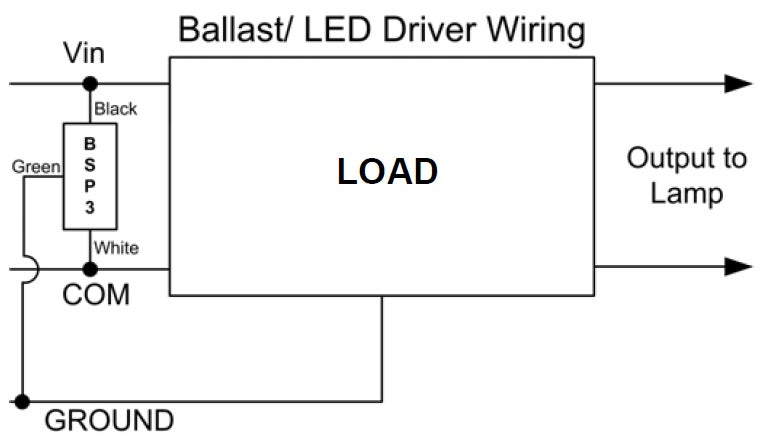

The BSP3 Series are 3-leaded devices that protect Line-Ground, Line-Neutral, and Neutral-Ground in accordance with IEEE / ANSI C62.41.2 guidelines. The BSP3-208-240 is for use on 208V - 240V ballasts/drivers.
Features:
• Surge current rating = 10,000 Amps using industry-standard 8/20 uSec wave
• High temperature, flameproof plastic enclosure, 85ºC maximum surface temp rating
• Thermally Protected Transient Overvoltage Circuit
