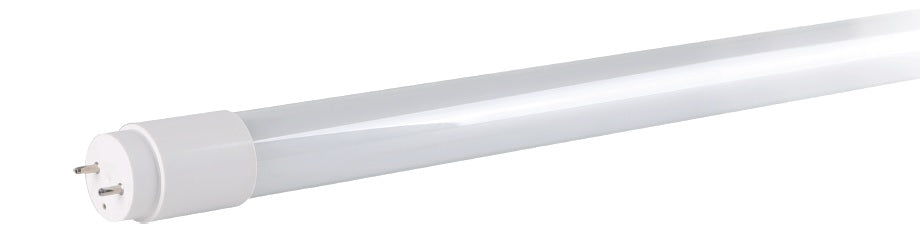

Topstar L48T8-835-12P-G8F-DW Bypass LED 4ft T8 Linear Tube Lamp – DLC Listed, Shatterproof, 3500K
Topstar L48T8-835-12P-G8F-DW Bypass LED 4ft T8 Linear Tube Lamp – DLC Listed, Shatterproof, 3500K
Specifications
Specifications
| Part Number# | L48T8-835-12P-G8F-DW |
|---|---|
| Type of Area: | Industrial & Warehouse, Schools, Hospitals, Commercial Offices, Retail |
| Color Temp: | 3500K - Warm White |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,800 |
| Wattage: | 12 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, DLC Approved, UL Listed |
| CRI: | 80 |
| Dimensions: | 48.00" x 1.02" |
| Width: | 1.02" |
| Length: | 48.00" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | TopStar |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The TopStar Bypass LED T8 Lamp is built for demanding commercial and industrial applications, delivering superior efficiency and reliability. Its coated glass and advanced light engine provide a wide 325° beam angle for uniform, end-to-end illumination with no dark spots. This UL Classified, DLC Listed tube operates on direct line voltage, eliminating ballast-related issues and reducing maintenance costs. With a shatterproof design, 135–170 LPW high efficiency, 3500K color temperature, and a built-in universal voltage driver, it ensures consistent performance. Backed by a 5-year warranty, it’s an ideal fluorescent replacement for offices, schools, and retail spaces.
Features:
• DLC Listed
• Fluorescent tube replacement
• Shatterproof
• High efficiency 135-170 LPW
• Wide beam 325° light emitting area
• Built-in universal voltage driver
• 3500K CCT
• 5-year warranty
• UL Classified
• Btpass double-end connection minimizes labor and eliminates the need for additional non-shunted sockets
• Alternate to install as a single-end bypass
• Power Factor >0.9, THD<20%, Non-Dimmable
• Ambient Working Temperature: -20°C (-4°F) ~45°C(113°F)
