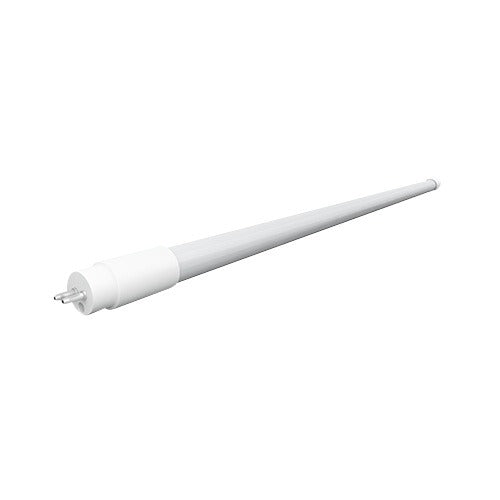

TopStar L46T5HE-15P-P6-EB 17W 46-Inch LED T5HE Plug & Play Tube – Ballast Compatible, Replaces 28W T5 Fluorescent
TopStar L46T5HE-15P-P6-EB 17W 46-Inch LED T5HE Plug & Play Tube – Ballast Compatible, Replaces 28W T5 Fluorescent
Specifications
Specifications
Part Number# | L46T5HE-15P-P6-EB |
---|---|
Type of Area: | Industrial & Warehouse, Commercial Offices, Retail |
Lamp Life: | 41,001 - 50,000 Hours |
Lumen Output: | 2,100 |
Wattage: | 17 Watt |
Ballast Start Type: | Instant Start |
Certifications | 5 Year Warranty, CSA, CUL Listed, DLC Approved, FCC Compliant, UL Listed |
CRI: | 82 |
Dimensions: | 46.00" |
Length: | 46.00" |
Dimmable: | No |
Product Warranty: | 5 Year |
Minimum Start Temperature: | -4 Deg F |
Manufacturer: | TopStar |
Technology: | LED |
Details
Details
ShineRetrofits Input:
The TopStar Ballast Compatible LED HE T5 Lamp delivers reliable, energy-efficient lighting designed to retrofit existing linear fluorescent fixtures without rewiring. Operating seamlessly with electronic ballasts, it ensures instant-on performance with no flicker or buzz while maintaining UL and CSA compliance. Featuring a CRI of 80, a power factor greater than 0.9, and THD under 20%, this LED tube offers up to 50% energy savings compared to traditional F54 HO T5 or F28 HE T5 lamps. With a durable design and 5-year limited warranty, it’s an ideal solution for commercial, industrial, and retail applications.
Features:
• Full light output in spaces with temperatures down to -4˚F (-20˚C)
• Perfect for applications with frequent “on/off” switching cycles
• Buildings that desire to be mercury free
• Instant on, no flicker or buzz
• Fits into existing linear fixtures
• Optimized performance with Electronic Ballasts
• Eliminates the need for rewiring and allows the fixture to maintain original UL and CSA compliance
• CRI 80
• Power Factor > 0.9
• THD < 20%
• No mercury allowing for non-hazardous waste disposal
• Much labor cost is saved, because of easy replacement. Even one with little electrical experience, can achieve retrofit quickly and easily.
• Emits virtually no UV rays or IR
• Ideal light emitting, building comfortable living, and working environment
• 5-year limited warranty
• 50% energy savings vs F54 HOT5 / F28 HE T5
• Full PC shell with Aluminum heat sink
