Toggled iQ TAC-001 DLC Listed Area Lighting Controller Compatible with Toggled iQ Smart Building System
Toggled iQ TAC-001 DLC Listed Area Lighting Controller Compatible with Toggled iQ Smart Building System
Specifications
Specifications
| Part Number# | TAC-001 |
|---|---|
| Type of Area: | Home & Architectural, Commercial Offices |
| Ballast Start Type: | Instant Start |
| Certifications | CUL Listed, DLC Approved, FCC Compliant |
| Dimmable: | No |
| Product Warranty: | 6 Year |
| Manufacturer: | Toggled |
Details
Details
ShineRetrofits Input:

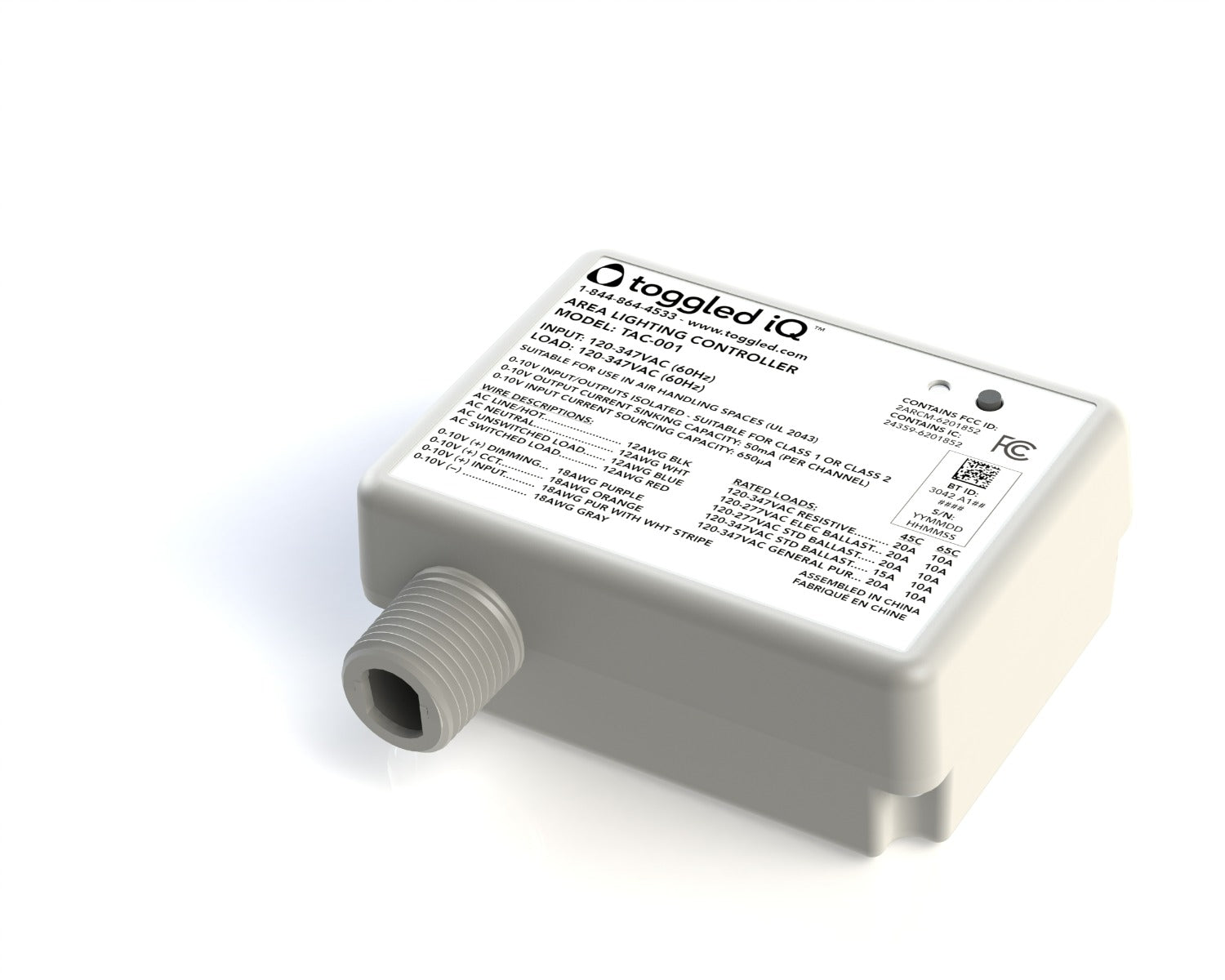

This Toggled iQ Area Lightng Controller is a smart solution to power switching and dimming interface between luminaires, rooms, or entire circuits (up to 20A) and the Toggled iQ smart lighting network. DLC Certified and supports 120V-347V applications.
Features:
• Supports 120-347VAC as the input supply and connected load(s)
• Two 0-10V isolated outputs provide dimming and CCT control for compatible luminaires or drivers using a Class 1 or Class 2 installation
• Limited 6-year Commercial
• Limited Lifetime Residential
• Capable of providing integrated voltage and current measurements for monitoring and reporting connected load power consumption and quality
• AC line isolated 0-10V input allows for the use of existing or third-party 0-10V sensors and wall-controls.
• Threaded adapter allows for installation in standard 1/2” knockouts on luminaires and junction boxes.
• Designed and engineered in the USA with a shatterproof
plenum-rated polycarbonate enclosure and high-quality
electronic components.
System Capabilities:
(Pairing with Toggled iQ Sensor(s) expands capabilities)
• Occupancy/Vacancy
Enables connected devices the ability to turn on/off when motion is detected.
• Daylight Harvesting
Connected, dimmable devices become capable of adjusting their brightness to compensate for natural light level changes throughout the day.
(Pairing with Toggled iQ Switch(es) expands capabilities)
• Scheduling
Enables customized automation of 7-day schedules.
(Pairing with the free Toggled iQ App expands capabilities)
• Scenes
Create customized lighting scenes with brightness and color settings changed for individual or groups of area controllers.
