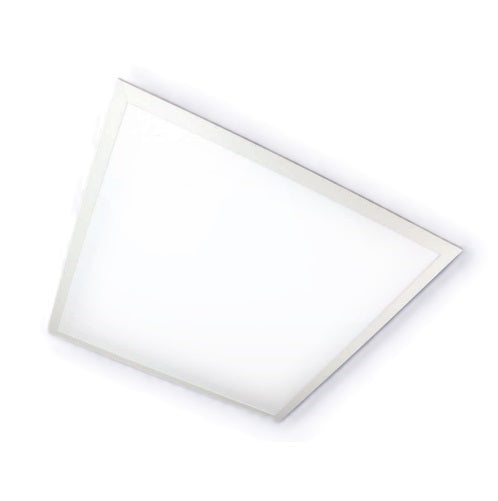

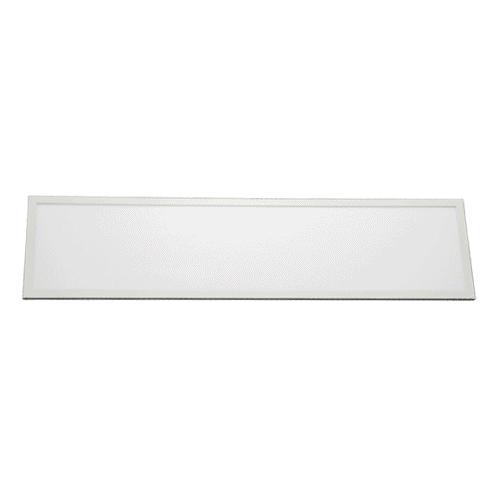

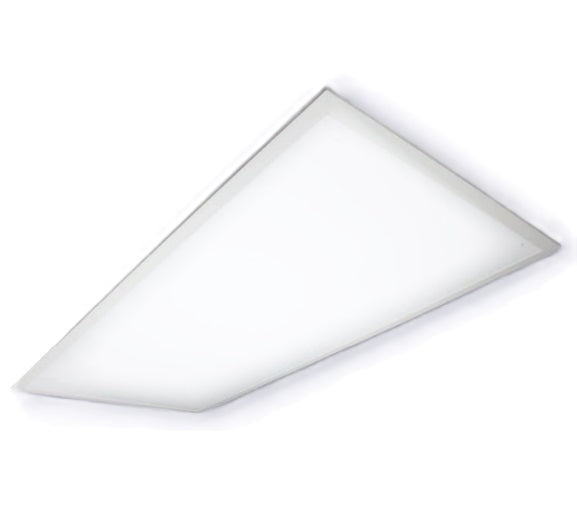

TCP Lighting DT Series Color Selectable LED Back-lit Frosted White Troffer Light Fixture Dimmable
TCP Lighting DT Series Color Selectable LED Back-lit Frosted White Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | DTF |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hospitals, Hospitality, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,600 - 5,100 |
| Wattage: | 38 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | Select Product Options |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | TCP Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
TCP LED DT Series Troffer Light Panel Fixtures offer a cost-effective and high-efficiency alternative to traditional T5, T8, and T12 linear fluorescent troffers. With a slim, low-profile design, these luminaires utilize back-lit technology to provide full panel diffusion and superior uniformity, surpassing the output from edge-lit panels. Designed for easy integration into T-bar grid ceilings, these luminaires feature a rectangular white frame with a frosted white diffuser lens for reduced glare and enhanced aesthetic appeal. Suitable for a range of applications including offices, schools, retail spaces, healthcare, and hospitality, these luminaires are IP20 rated, IC rated for direct contact with insulation, and UL/cUL damp location rated.
Features:
• Rectangular white frame
• Lens: frosted white diffuser
• IP20 rated
• IC rated for direct contact with insulation
• Designed for easy drop into T-bar grid ceilings
• UL/cUL damp location rated
• 0-10V dimming driver (standard)
• LED driver with integrated junction box
• System rated for a long 50,000-hour life
• Back-lit technology provides even, uniform lighting
• 120° beam angle
• Frosted diffuser for reduced glare and aesthetic appeal
• Meets or exceeds the look and performance of edge-lit panels
