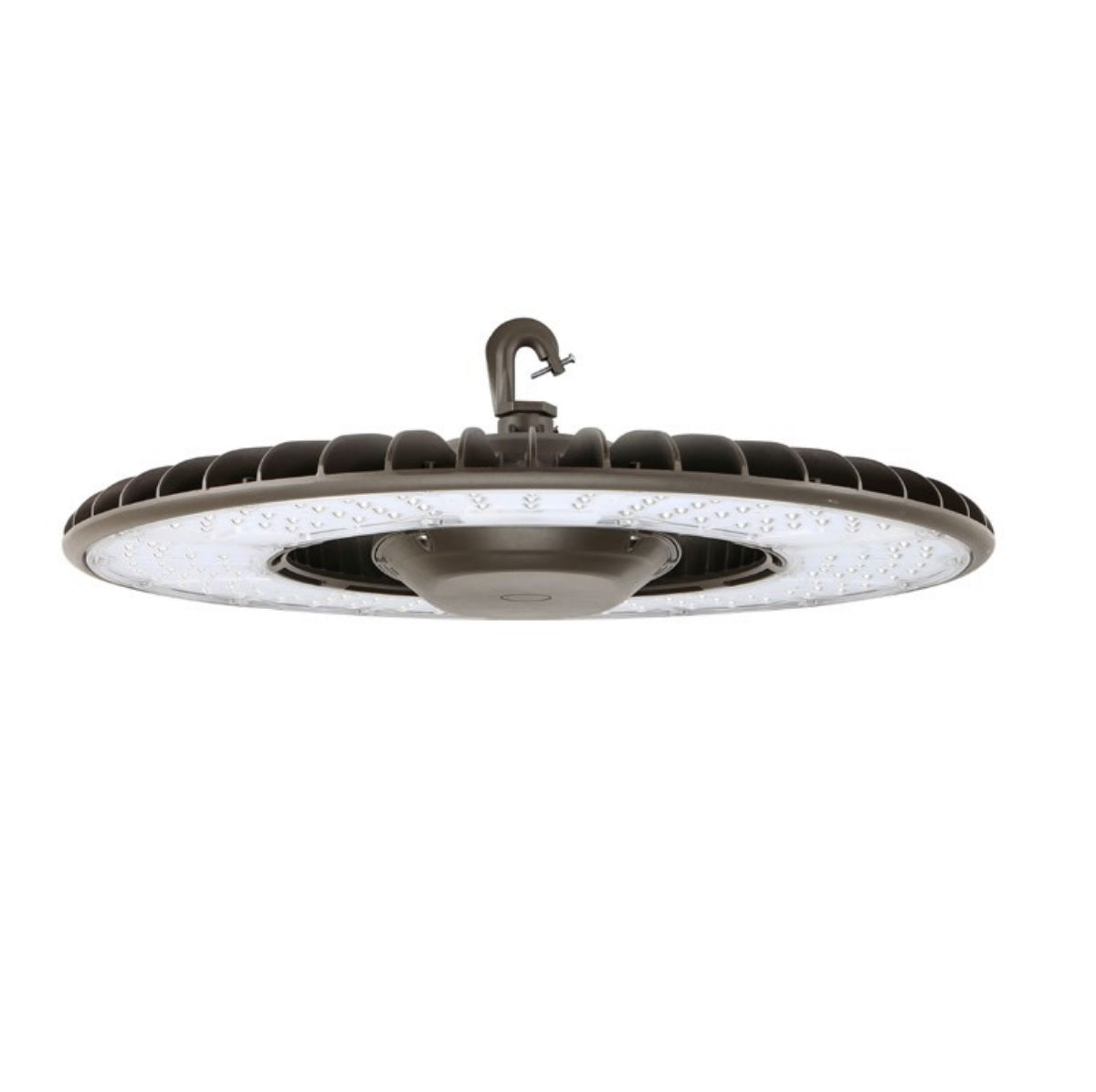

SLG Lighting HX Extreme Series DLC Premium Listed LED Round High Bay Fixture Gen 1
SLG Lighting HX Extreme Series DLC Premium Listed LED Round High Bay Fixture Gen 1
-
Specsheet:
Specifications
Specifications
| Part Number# | HX |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Manufacturing Plants, Commercial Offices, Retail |
| Lumen Output: | 32,000 - 54,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, 750W HID Equivalent, 1000W HID Equivalent, DLC Premium |
| CRI: | 70 |
| Dimensions: | 24.25" (MOL) x 8.72" |
| Length: | 24.25" (MOL) |
| Height: | 8.72" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Weight Each: | 16.27 - 17.57 lbs |
| Manufacturer: | SLG Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This HX Extreme High Bay Gen 1 delivers the highest lumen output among SLG's round high bays. Select from four wattage options between 200W to 340W with 32,000 to 54,000-lumen packages replacing up to 1000W HID. An optional Field Adjustable Output is available to change the input wattage and lumen output to meet specific needs and increase the lifespan of each fixture.
Features:
• Sealed die-cast aluminum housing with multiple heat sinks for maximum heat management
• 200W/300W: -40°C to 65°C (-40°F to 149°F)
• 250W/340W: -40°C to 55°C (-40°F to 131°F)
• Standard Hook mounting or optional 3/4 inch Conduit Pendant mount
• More than 156 lumens per watt
• 4000 and 5000K CCT available; 70CRI
• Temperature-resistant designed lens for maximum luminous flux output
• Impact-resistant polycarbonate lens
• 10-year limited warranty
• Standard 50/60Hz operation with 120-277V input
• 347/480V line voltage with Standard 1-10V dimming
• Power Factor above 90%
• Polyester Powder Dark Bronze Finish
• UL Listed for wet locations
• Design Lights Consortium® (DLC) Standard 5.1 qualified product
Applications:
• Commercial
• Retail
• Industrial
• Institutional applications, etc.
