SLG Lighting HR DLC Premium Listed LED Round High Bay Fixture 5000K Gen 3
SLG Lighting HR DLC Premium Listed LED Round High Bay Fixture 5000K Gen 3
-
Specsheet:
Specifications
Specifications
| Part Number# | HR |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Manufacturing Plants |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 14,000-29,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, 250W HID Equivalent, 400W HID Equivalent, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | 70 |
| Dimensions: | 15.35'' x 9.16'' |
| Length: | 15.35'' |
| Height: | 9.16'' |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | SLG Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

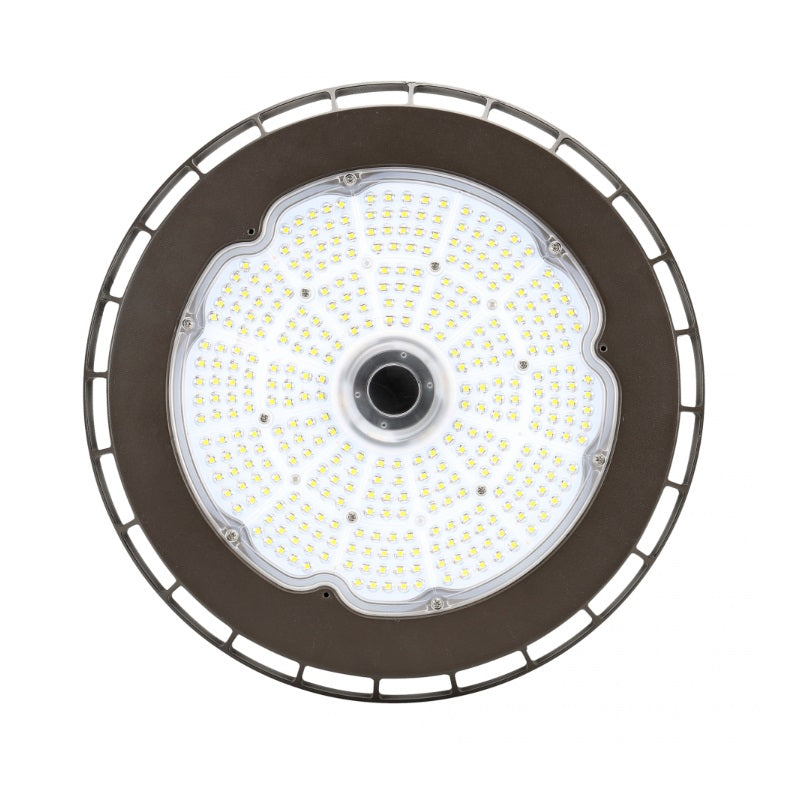

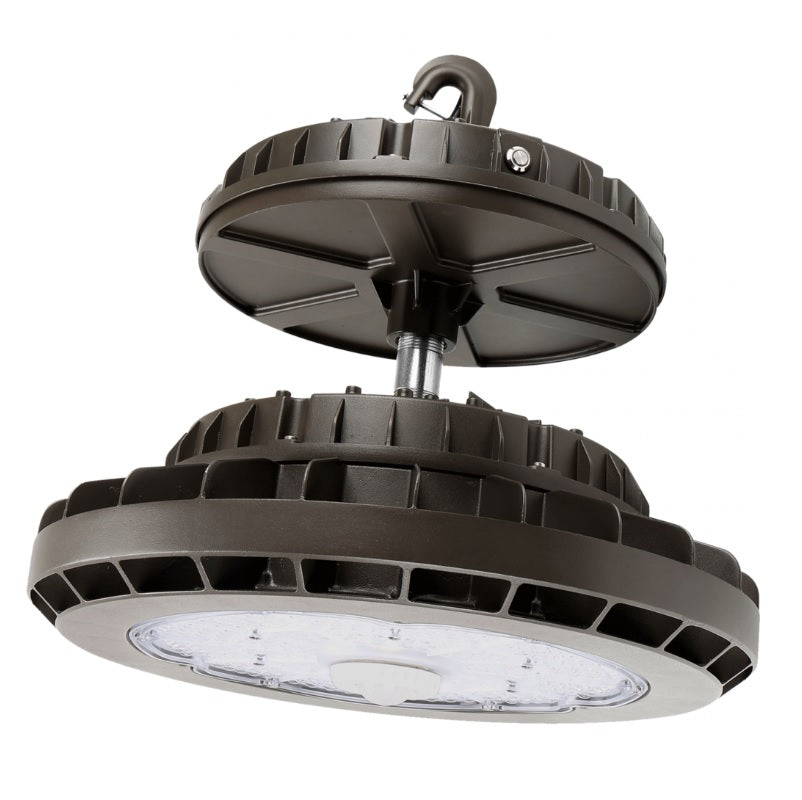

This DLC Premium Listed HR Series Round High Bay Fixture is cost-efficient lighting designed for gymnasiums, factories, warehouses, and more. The 100W to 200W fixture replaces 250W up to 400W and delivers 14,000 up to 29,000 lumens with 90° and 120° beam angles depending on the reflector used. Housing is constructed of robust cast aluminum to withstand harsh outdoor conditions. Long lasting with over 100,000-hour life backup by a 10-year limited warranty.
Features:
• Robust cast aluminum housing to withstand harsh or hostile environments
• Operating temperature is -40°C to 55°C (-40°F to 131°F)
• Hook mounting or pendent installation with conduit
• Up to 142 lumens per watt
• 4000 and 5000K CCT available; 70CRI
• Optional reflectors and drop lens provide 90° or 120° beam angle
• Impact-resistant polycarbonate lens
• 10-year limited warranty
• 50/60Hz available in 120-277V
• Standard 0-10V Dimming
• Power Factor above 90%
• L70 >100,000 hrs @ 25°C
• Polyester Powder Dark Bronze Finish
• UL Listed for wet locations
• FCC compliant
• RoHs compliant
• Design Lights Consortium® (DLC) Premium 5.1 qualified product for Wide Lens (120°) only - 135W, 175W and 200W
Applications:
• Commercial
• Retail
• Gymnasiums
• Factories
• Warehouses
• Institutional Applications
Model Numbers:
HR 140 WD G3 5K
HR 190 WD G3 5K
HR 250 WD G3 5K
HR 290 WD G3 5K
HR 140 WD G3 HVU 5K
HR 190 WD G3 HVU 5K
HR 250 WD G3 HVU 5K
HR 290 WD G3 HVU 5K
