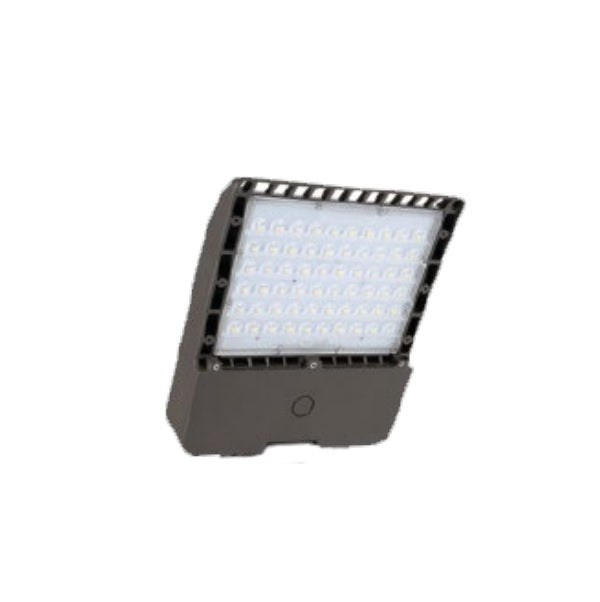

SLG Lighting FFL 340 WFL G3 HVU 5K 240-Watt LED Flat Wide Flood Light Fixture 347V/480V 5000K Gen 3
SLG Lighting FFL 340 WFL G3 HVU 5K 240-Watt LED Flat Wide Flood Light Fixture 347V/480V 5000K Gen 3
-
Specsheet:
Specifications
Specifications
| Part Number# | FFL 340 WFL G3 HVU 5K |
|---|---|
| Type of Area: | Landscape & Flood, Large Retail & Open Areas, Sign & Billboards, Wall Mount & Building Exteriors |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 200,000 Hours |
| Lumen Output: | 34,000 |
| Wattage: | 240 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | 80+ |
| Dimensions: | 25.04" x 13.39" x 3.15" |
| Width: | 13.39" |
| Length: | 25.04" |
| Height: | 3.15" |
| Dimmable: | No |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 347-480V |
| Weight Each: | 24.515 lbs |
| Manufacturer: | SLG Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This 347V/480V Flat Flood Light Series Gen 3 features a wide lens and excellent illumination, in building facades, display lighting, landscaping, security lighting, and more. The 240-Watt fixture replaces 750W to 1000W Metal Halide fixtures and delivers 34,000 lumens. Housing is constructed of die-cast aluminum to withstand outdoor conditions with IP66 and DLC Premium rating back-up by a 10-year limited warranty.
Features:
• Precision die-cast aluminum housing with integral heat-sink fins
• Suitable for use in -40°C to 45°C (-40°F to 113°F)
• Mounting options include Square and Round Pole Mount, Wall Mount, Trunnion Mount, Adjustable Slipfitter Mount and option with photocell
• Up to 143 lumens per watt (see individual wattage data)
• 4000K and 5000K CCT available; 80+CRI
• Precision molded secondary NEMA 6H X 7V optics produce superior uniformity and maximum pole spacing
• Optics sealed to LED package for IP66 protection
• 10-year limited warranty
• Standard 120-277V
• Constant current driver efficiency above 90%
• Polyester Powder Dark Bronze finish
Applications:
• Building Facades, Display Lighting, Landscaping, Security Lighting, etc.
Replacement:
• FFL: 750W-1000W MH
Certifications:
• UL Listed for wet locations. Equivalent to IP66 rating
• FCC compliant
• RoHs compliant
