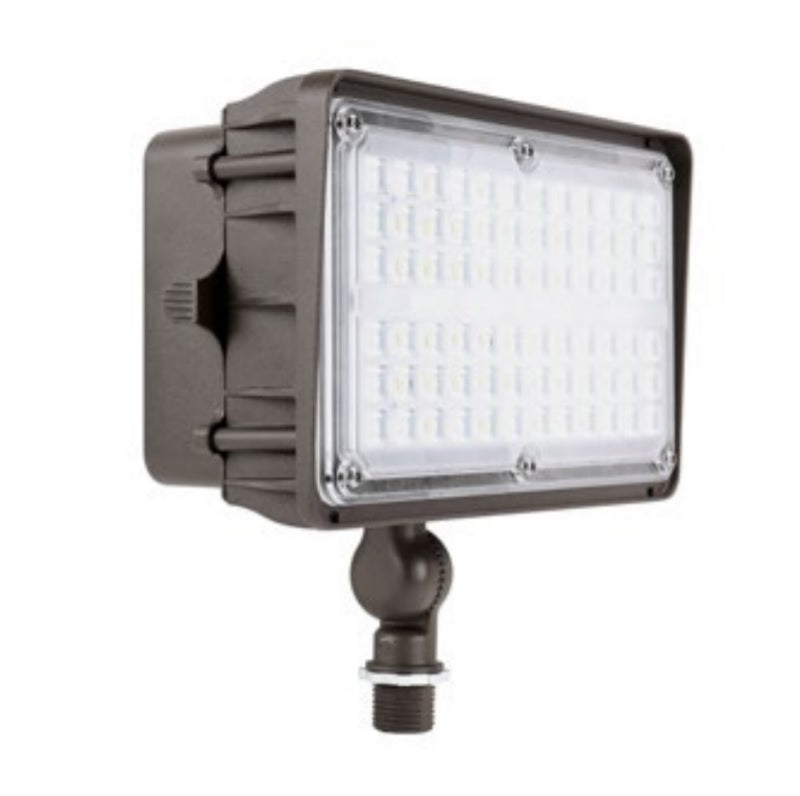

SLG Lighting FDCL DLC Premium Listed LED Large Flood Light Contractor Fixture 5000K
SLG Lighting FDCL DLC Premium Listed LED Large Flood Light Contractor Fixture 5000K
-
Specsheet:
Specifications
Specifications
| Part Number# | FDCL |
|---|---|
| Type of Area: | Gym & Sports, Landscape & Flood, Pole / Street / Parking Lot, Sign & Billboards, Road & Street |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 8,900 - 13,300 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 250W HID Equivalent, 400W HID Equivalent, DLC Premium, UL Listed |
| CRI: | 70 |
| Dimensions: | 11.06'' x 4.90'' x 14.21'' |
| Width: | 4.90'' |
| Length: | 11.06'' |
| Height: | 14.21'' |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 10.163 lbs |
| Manufacturer: | SLG Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This FDC Large Flood Light Contractor Series offers high performance and a robust slim design with multiple mounting options, Knuckle, Trunnion, Slipfitter, and Yoke. Operates in 70W to 100W replacing 250W to 400W Metal Halide fixtures and delivers 8,900 to 13,300 lumens. Housing is constructed in die-cast aluminum with a heatsink to withstand outdoor conditions. DLC Premium certified and back-up by a 5-year limited warranty.
Features:
• One-piece die-cast aluminum housing with heat sink for effective conductive and convective cooling
• Suitable for use in -40°C to +45°C (-40°F to 113°F)
• Knuckle Mount - ½ NPS adjustable knuckle mount in aluminum
• Trunnion Mount - Adjustable trunnion mount in aluminum for direct surface mounting with bolt to lock in the aiming angle
• Slipfitter Mount - Adjustable slipfitter mount in aluminum that fits 2-3/8’’
O.D. tenon. Includes set screws for securing luminaire to tenon and aiming angle markings with bolt to lock in the aiming angle
• Yoke Mount - Adjustable Yoke Mount with bolt to lock aiming angle, painted for corrosion. Direct mounting to surface
• Up to 138 lumens per watt (see individual wattage data)
• 5000K CCT available; 70 CRI
• Max performance acrylic optics attached to internal heat sink for high thermal dissipation.
• High efficiency current driver above 90%.
• 50/60Hz operation with standard 120-277 input.
• Standard PC UNV B3-Button Photocell.
• FDCS & FDCM is non-dimmable.
• Dark Bronze coat finish with superior resistance to corrosion and weather.
• Custom colors available
• 5-year limited warranty. Comprehensive warranty terms can be located on www.slgus.com
• UL listed for wet locations. Design Lights Consortium® (DLC) Premium qualified product. Not all versions of this product may be DLC qualified. Please visit www.slgus.com to confirm which versions are qualified
Applications:
• Landscape lighting
• Signage
• Internal roadways
• Parking lots
• General area lighting
Model Numbers:
FDCL 93 G1 5K S
FDCL 93 G1 5K T
FDCL 130 G1 5K S
FDCL 130 G1 5K T
FDCL 93 G1 HVU 5K S
FDCL 93 G1 HVU 5K T
FDCL 130 G1 HVU 5K S
FDCL 130 G1 HVU 5K T
