SLG Lighting DLC Premium AR Series Area Light Fixture includes Twist-lock Photocell
SLG Lighting DLC Premium AR Series Area Light Fixture includes Twist-lock Photocell
Specifications
Specifications
| Part Number# | AR |
|---|---|
| Type of Area: | Large Retail & Open Areas, Parking Garage, Pole / Street / Parking Lot, Schools, Education, Road & Street |
| Color Temp: | 4000K - Neutral White |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 6,350 - 20,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, 400W HID Equivalent, Dimmable, DLC Approved, FCC Compliant, IP65 / IP66 / IP67, UL Listed |
| CRI: | 70 |
| Dimensions: | 23.84" x 4.52" x 10.43" |
| Width: | 4.52" |
| Length: | 23.84" |
| Height: | 10.43" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 8.353 - 10.018 lbs |
| Manufacturer: | SLG Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

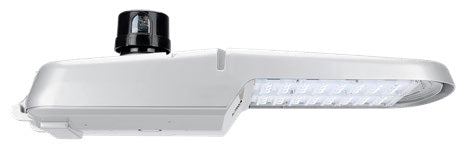

This AR Area Light Roadway Fixture delivers 6,350 to 20,000-lumen quality output and superior performance for outdoor lighting in parking lots, walkways, roadways, plazas, and campuses. Energy-saving lighting solution with fixture models available in 45W to 150W replacing up to 400W HID. Projected to last up to 100,000 hours and back up by a 10-year warranty.
Features:
• One-piece die-cast aluminum housing for optimal thermal management with conductive and convective cooling
• Suitable for use in -40°C to 45°C
• Pole mount. Fits on a 1.66” (42mm) O.D. (1.25” NPS), 1.9” (48mm) O.D.
(1.5” NPS) or 2 3/8” (60mm) O.D. (2” NPS) by 5 1/2” (140mm) minimum long tenon
• Available in electronic universal voltage (120 -277V 50/60Hz), 347V 60Hz, and 480V 60Hz operation
• Standard 0-10V dimming, 10KV/10KA common mode and differential mode surge protection
• Up to 130 lumens per watt
• Constant current driver efficiency above 90%
• Available in IES Type III distribution
• Offered in 4000K and 5000K; 70 CRI
• Optics are designed to shape the distribution, maximize efficiency and application spacing
• Exterior parts are protected by a coat finish which provides superior resistance to corrosion and weathering
• Custom colors available
• Suitable for wet location, IP66 rating
• 10-year limited warranty
APPLICATIONS:
• Parking lots, walkways, roadways, plazas and campuses
REPLACEMENT:
• Up to 400W Metal Halide replacement
