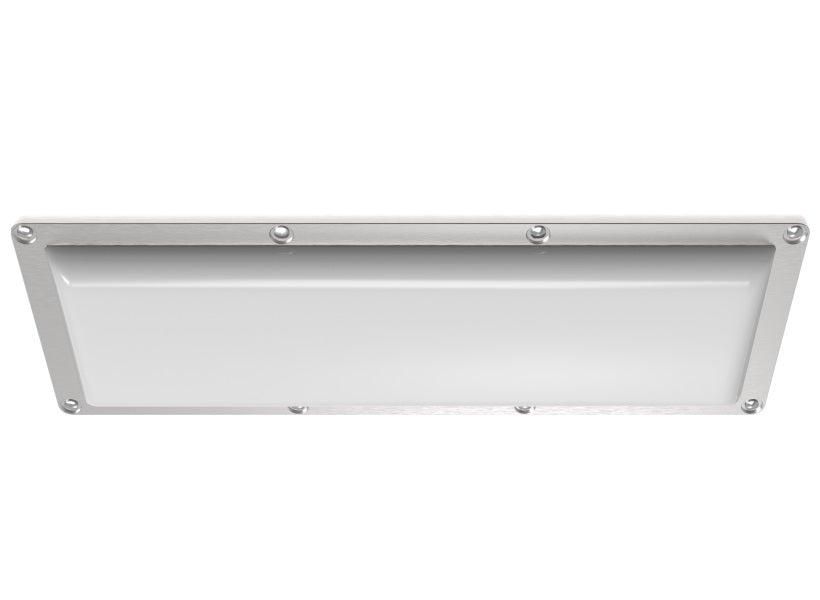

Shat-R-Shield 080-LR Ironclad® Linear Pro 80-Watt LED Large Area Light Fixture
Shat-R-Shield 080-LR Ironclad® Linear Pro 80-Watt LED Large Area Light Fixture
Specifications
Specifications
| Part Number# | 080LR50CMNVHS2UR00000002 |
|---|---|
| Type of Area: | Industrial & Warehouse, Factory / Industrial |
| Lamp Life: | 75,000 Hours |
| Lumen Output: | 8,400 |
| Wattage: | 80 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Made In America Compliant, UL Listed |
| Dimensions: | 25.8" x 9" x 1.8" |
| Width: | 9" |
| Length: | 25.8" |
| Height: | 1.8" |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Weight Each: | 13.8 lbs |
| Manufacturer: | Shat-R-Shield |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Introducing the remarkable Ironclad® Linear Pro fixture, a revolutionary lighting solution specifically engineered to endure abuse and deter tampering, removal, or damage within prison facilities. Its innovative design completely eliminates the metal housing found in conventional fixtures, which can potentially be repurposed as weapons.
This fixture is built with utmost security in mind. It features a specially engineered .5" thick steel frame, ensuring exceptional durability and resistance to tampering. Complementing the robust frame is a proprietary .5" thick cast low-profile lens, further enhancing its resilience. With this thoughtful construction, there are no areas available for hiding contraband or accessing the fixture.
To cater to specific requirements, the optional count light LED module provides flexibility in lighting control. It can be easily turned on or off as needed, depending on the application and specific area requirements.
Features:
• One-piece Frame - .500” thick steel, epoxy powder coated.
• Lens - .500” thick cast, diffused translucent, Highly Engineered urethane. Shore hardness D80+, tensile strength 5,400 psi, impact strength 55 in. lbs./ in.
• Aluminum heat sink to maintain thermal management.
• Installation - Anchored flush onto ceiling with (8) spike anchors or optional recessed tamper-proof 1/4” stainless steel bolts or cinder block fasteners.
• No accessible parts or hinges.
Specifications:
• Lumens: 8400 (80W)
• Count Light Lumens: 530
• Light Engine CCT: 5000K, 4000K
• Count Light CCT: 2700K
• Life Hours: L70>75,000 Hours; Projected >100,000 Hours
• Footcandles: 35 ftc at the desk level; 22 ftc at the floor
• Voltage: Universal 120-277V
• Weight: 13.8 lbs.
• Dimensions: 25.8” long x 9" wide x 1.8” tall
• Warranty: 5 year limited warranty
