Shat-R-Shield 080-GDL Ironclad® General Duty Linear 80-Watt LED Large Area Light Fixture
Shat-R-Shield 080-GDL Ironclad® General Duty Linear 80-Watt LED Large Area Light Fixture
Specifications
Specifications
| Part Number# | 080GDL50CMNVHPC00000002 |
|---|---|
| Type of Area: | Industrial & Warehouse, Factory / Industrial |
| Lamp Life: | 75,000 Hours |
| Lumen Output: | 7,400 |
| Wattage: | 80 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Made In America Compliant, UL Listed |
| Dimensions: | 24.5" x 11.6" x 2.2" |
| Width: | 11.6" |
| Length: | 24.5" |
| Height: | 2.2" |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.1 lbs |
| Manufacturer: | Shat-R-Shield |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

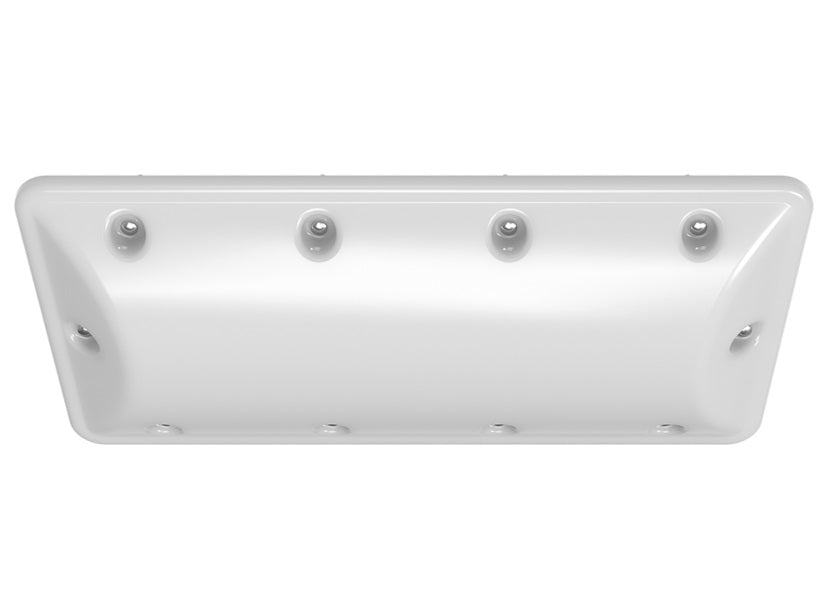

Introducing the Ironclad® General Duty Linear Light (G.D.L), specifically designed to meet the lighting needs of larger areas in correctional and behavioral applications. This innovative fixture combines a sleek, low-profile design with robust construction, delivering a lighting solution that can withstand the harshest conditions.
The G.D.L's standout feature is its extreme low profile and compact housing, allowing it to seamlessly integrate into any environment with limited space. Built to withstand abuse, the Ironclad® G.D.L features a rugged construction that can handle the challenges of demanding environments. Its sturdy housing and rimless edge design enhance its durability, making it resistant to impacts, tampering, and vandalism. You can rely on the G.D.L to maintain its functionality and aesthetics even in the most challenging situations.
Features:
• Flush ceiling mounted with (8) spike anchors or optional recessed tamper-proof 1/4” stainless steel bolts or cinder block fasteners.
• Extreme Durability - Lens is made of highly impact-resistant 1/4” thick polycarbonate with a minimum IK10 impact rating.
• No areas to hide or conceal contraband.
• Installation - Anchored flush onto ceiling with (8) spike anchors or optional recessed • tamper-proof 1/4” stainless steel bolts or cinder block fasteners.
• Tight bolt pattern offers ligature resistance.
Specifications:
• Lumens: 3800 (40W), 7400 (80W)
• Count Light Lumens: 530 (Only in 40W units)
• Light Engine CCT: 5000K, 4000K
• Count Light CCT: 2700K
• Life Hours: L70>75,000 Hours; Projected >100,000 Hours
• Footcandles: 35 ftc at the desk level; 22 ftc at the floor
• Voltage: Universal 120-277V
• Weight: 6.35 lbs. (40W, 7.1 lbs. (80W)
• Dimensions: 24.5” long x 11.6" wide x 2.2” tall
• Warranty: 5 year limited warranty
