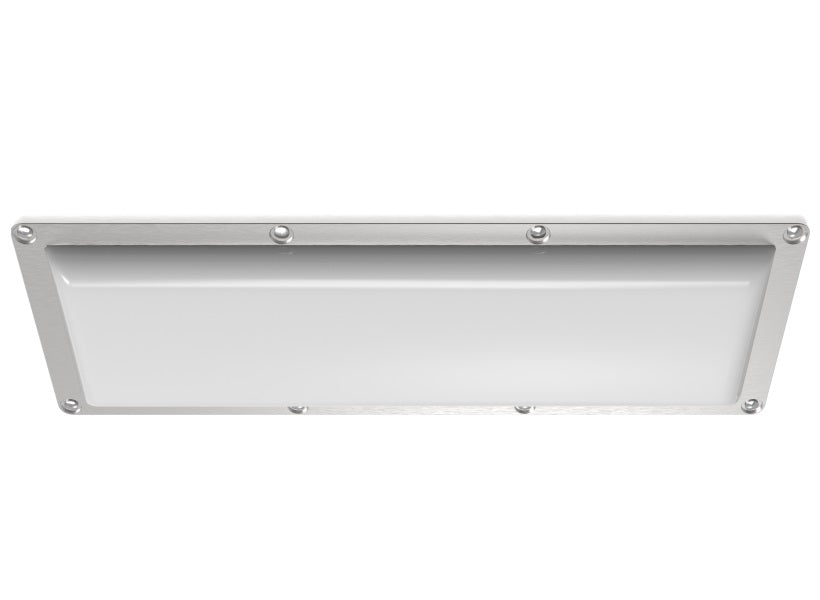

Shat-R-Shield 040-LR Ironclad® Linear Pro 40-Watt LED Large Area Light Fixture
Shat-R-Shield 040-LR Ironclad® Linear Pro 40-Watt LED Large Area Light Fixture
Specifications
Specifications
| Part Number# | 040LR50CMNVHS2UR00000002 |
|---|---|
| Type of Area: | Industrial & Warehouse, Factory / Industrial |
| Lamp Life: | 75,000 Hours |
| Lumen Output: | 4,200 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Made In America Compliant, UL Listed |
| Dimensions: | 25.8" x 9" x 1.8" |
| Width: | 9" |
| Length: | 25.8" |
| Height: | 1.8" |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Weight Each: | 13.8 lbs |
| Manufacturer: | Shat-R-Shield |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Introducing the Ironclad® Linear Pro fixture, an extraordinary lighting solution specifically engineered to endure abuse and significantly deter tampering, removal, or damage within prison facilities. Its innovative design revolutionizes traditional fixtures by completely eliminating the metal housing that can be exploited to create weapons.
Crafted with meticulous attention to security, this fixture features a specially engineered .5" thick steel frame and a proprietary .5" thick cast low-profile lens. With this robust construction, it becomes highly resistant to tampering, ensuring the utmost safety. The intelligent design leaves no areas for contraband to be concealed or for the fixture to be opened illicitly.
For added versatility, the optional count light LED module can be easily switched on or off to accommodate the specific requirements of the area in use. This feature provides flexible control over the lighting output, optimizing the functionality of the space.
Features:
• One-piece Frame - .500” thick steel, epoxy powder coated.
• Lens - .500” thick cast, diffused translucent, Highly Engineered urethane. Shore hardness D80+, tensile strength 5,400 psi, impact strength 55 in. lbs./ in.
• Aluminum heat sink to maintain thermal management.
• Installation - Anchored flush onto the ceiling with (8) spike anchors or optional recessed tamper-proof 1/4” stainless steel bolts or cinder block fasteners.
• No accessible parts or hinges.
Specifications:
• Lumens: 4200 (40W), 8400 (80W)
• Count Light Lumens: 530
• Light Engine CCT: 5000K, 4000K
• Count Light CCT: 2700K
• Life Hours: L70>75,000 Hours; Projected >100,000 Hours
• Footcandles: 35 ftc at the desk level; 22 ftc at the floor
• Voltage: Universal 120-277V
• Weight: 13.8 lbs.
• Dimensions: 25.8” long x 9" wide x 1.8” tall
• Warranty: 5-year limited warranty
